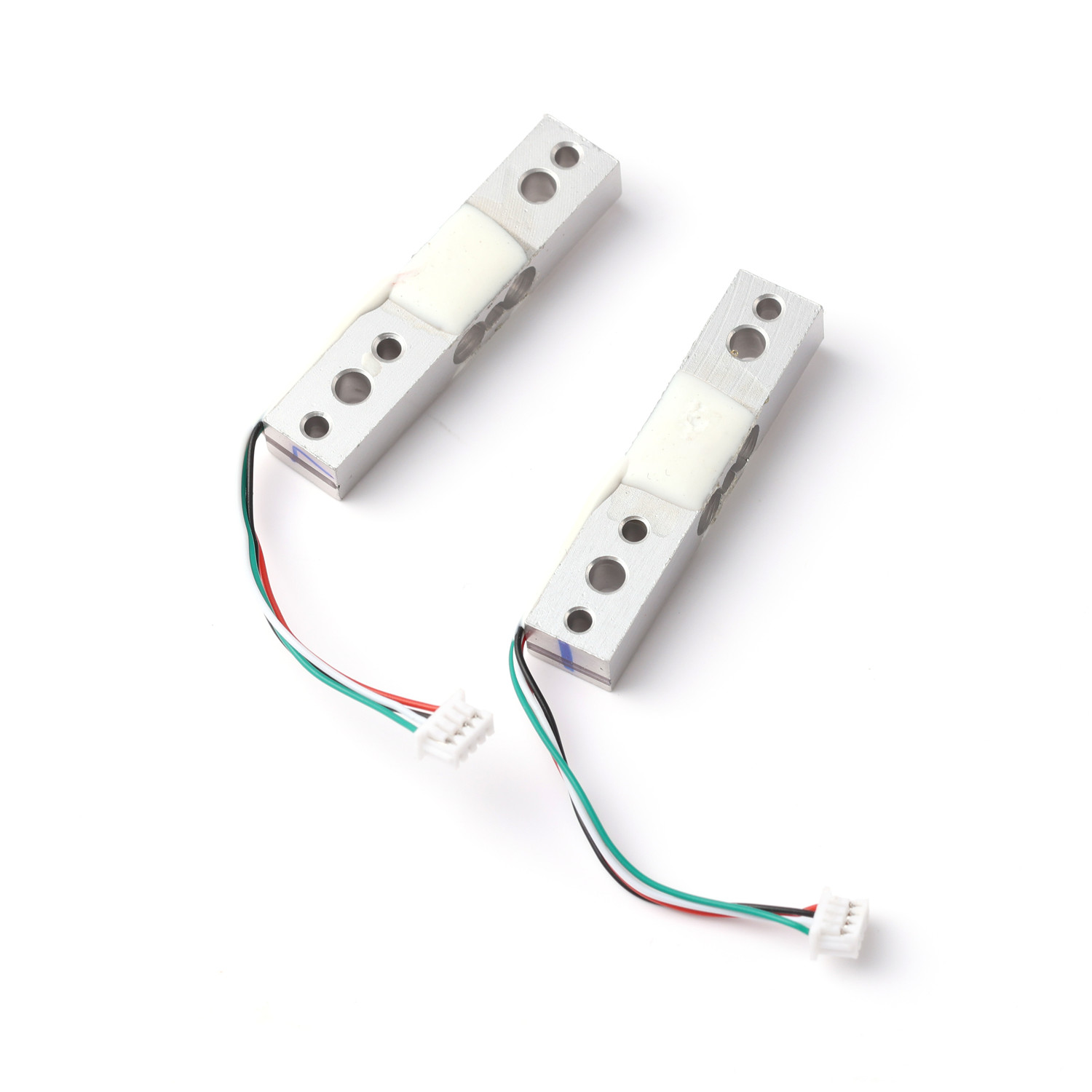

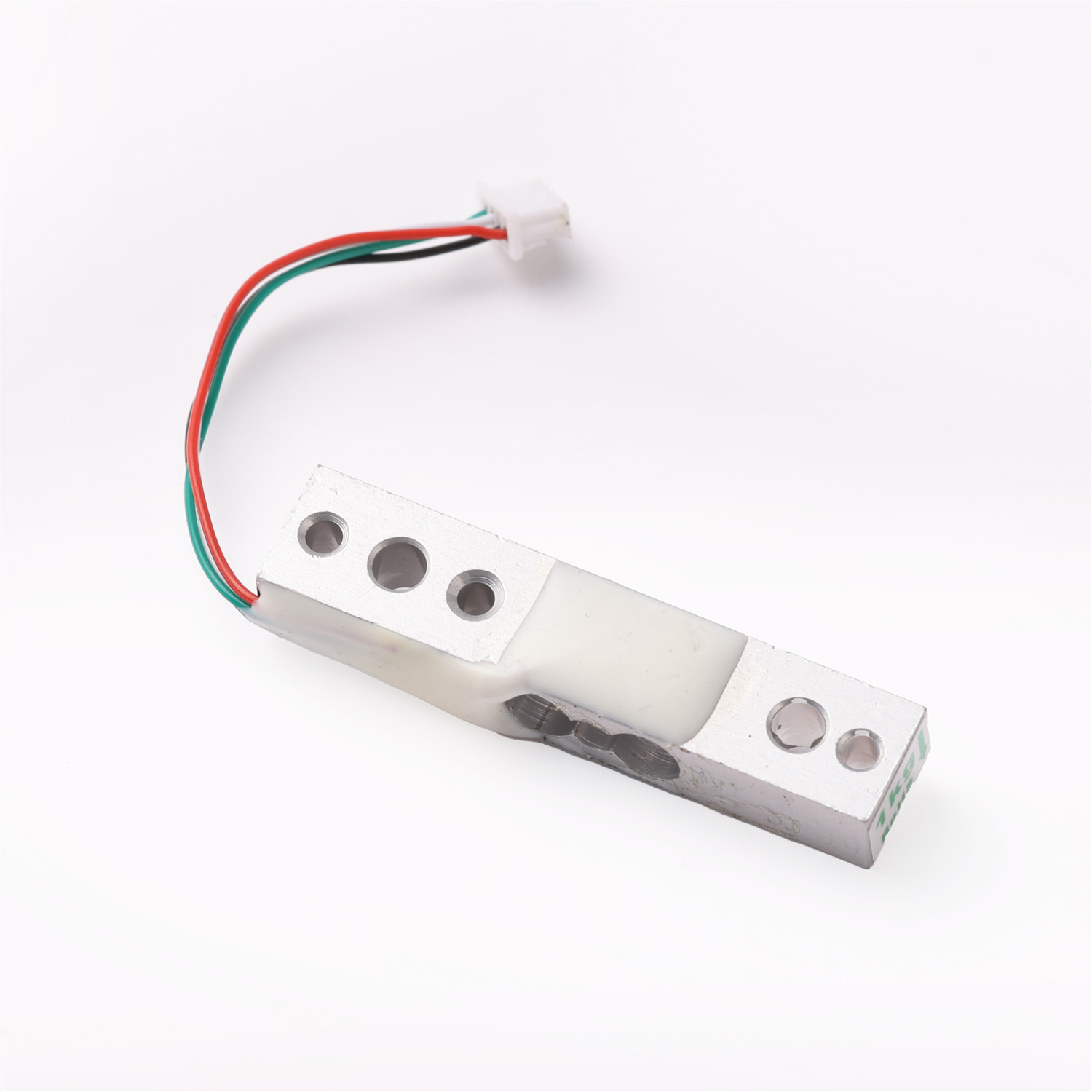

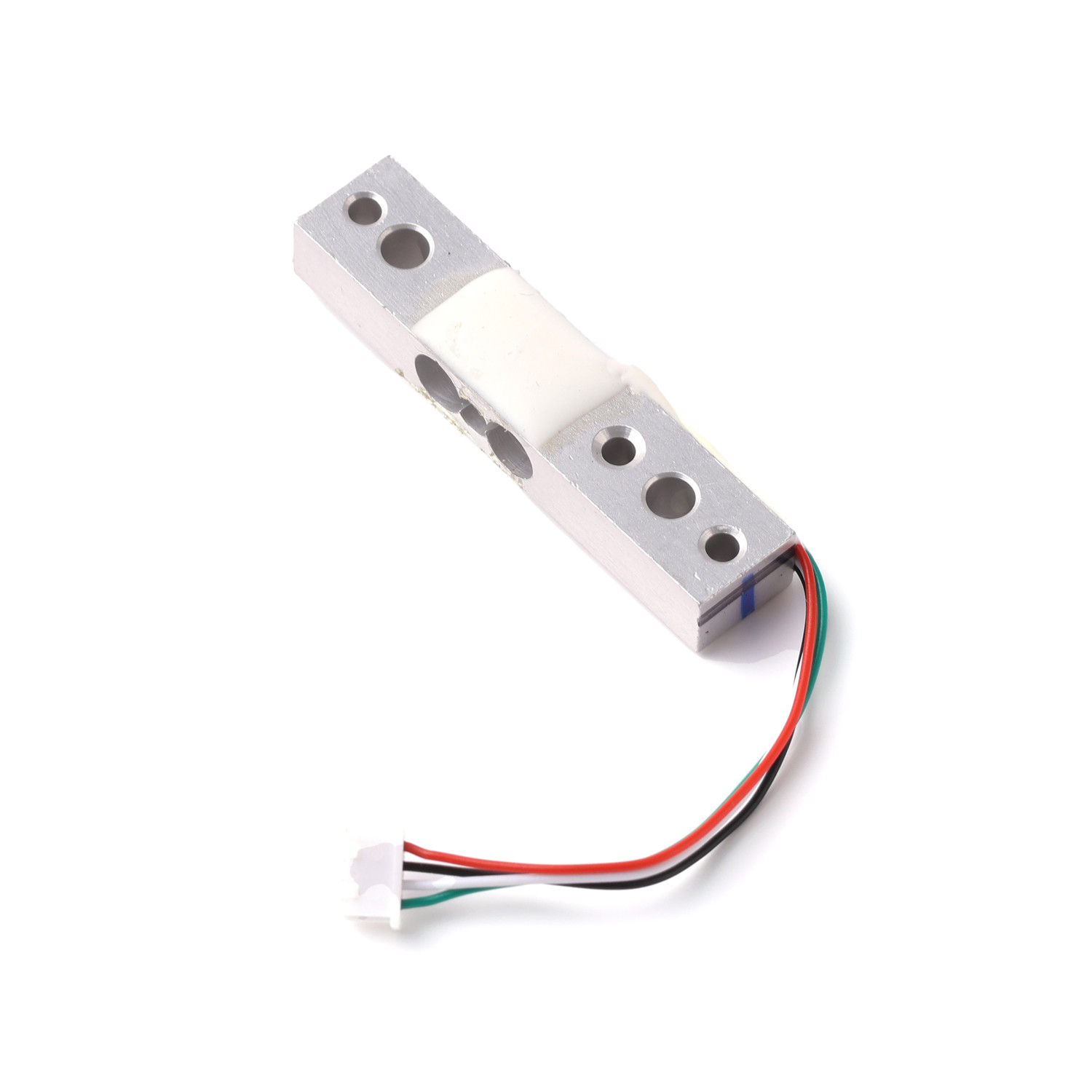

IP65 Miniature Load Cell With M3 Threaded Hole and M4/M3 Tapped Hole

IP65 Miniature Load Cell With M3 Threaded Hole and M4/M3 Tapped Hole
Features Gallery Product Description Request A Quote
Features
Specifications
Mounting: M3 Threaded Hole
Output Resistance: 350±10Ω
Protection Class: IP65
Material: Alloy Aluminum
Comprehensive Error: ≤±0.5%
Connection: M4/M3 Tapped Hole
Rated Output: 1.5±20%mV/V
Input Impedance: 350-700Ω
High Light:

M3 Threaded Hole Miniature Load Cell

,

IP65 Miniature Load Cell

,

M3 Tapped Hole Miniature Load Cell

Basic Infomation
Place of Origin: China
Brand Name: Top Sensor
Model Number: SL-01
Payment & Shipping Terms
Product Description

Product Description:

The Miniature Load Cell is a Strain Gage Load Cell, which means that it uses strain gauges to measure the amount of force or weight applied to it. Strain gauges are thin wires that are attached to the load cell, and they change resistance when they are stretched or compressed. The change in resistance is then measured and used to calculate the amount of force or weight being applied to the load cell.

This Miniature Load Cell is available in a range of capacities, including 10kgf, 20kgf, 50kgf, and 70kgf. This makes it a versatile option for a variety of applications. The load cell has a comprehensive error of ≤±0.5%, which ensures that the measurements taken are highly accurate.

The Miniature Load Cell is made of alloy aluminum, which makes it durable and long-lasting. The material is also lightweight, which makes it ideal for use in applications where weight is a concern. The load cell is designed to withstand harsh environments, including extreme temperatures and humidity.

In summary, the Miniature Load Cell is a highly accurate and versatile Micro Load Cell that is ideal for use in small spaces. It has a diameter of only 20mm and is available in a range of capacities, including 10kgf, 20kgf, 50kgf, and 70kgf. The load cell is a Strain Gage Load Cell and has a comprehensive error of ≤±0.5%. It is made of alloy aluminum, which makes it durable and long-lasting, and it is designed to withstand harsh environments.



Features:

  • Product Name: Miniature Load Cell
  • Material: Alloy Aluminum
  • Mounting: M3 Threaded Hole
  • Input Impedance: 350-700Ω
  • Operating Temp Range: -20~+80℃
  • Protection Class: IP65


Technical Parameters:

Hysteresis ±0.03%
Diameter 20mm
Mounting M3 Threaded Hole
Output Resistance 350±10Ω
Application Electronic Weighing Equipment
Material Alloy Aluminum
Operating Temp Range -20~+80℃
Rated Output 1.5±20%mV/V
Load Cell Type Strain Gage Load Cell
Protection Class IP65


Applications:

1. Industrial Automation: The miniature load cell is widely used in industrial automation processes such as force measurement, quality control, and material testing. It can be used in assembly lines, robotic arms, and other automated systems to maintain and monitor the force applied during the process.

2. Medical Devices: The SL-01 micro load cell can also be used in medical devices such as infusion pumps, dialysis machines, and blood pressure monitors. It can help in measuring the weight and pressure applied during the treatment process, ensuring accurate and safe treatment.

3. Aerospace and Defense: The miniature load cell is also suitable for aerospace and defense applications. It can be used in aircraft and spacecraft to measure the force and weight of various components. It can also be used in defense equipment such as tanks and weapons to monitor and control the force applied during operation.

4. Robotics: The micro load cell is ideal for use in robotics for force sensing and feedback. It can be used in various robots such as humanoid robots, industrial robots, and service robots to detect the force applied during their operation.

5. Automotive: The SL-01 micro load cell can also be used in the automotive industry for various applications such as measuring the weight of the vehicle, monitoring the force applied during braking, and testing the durability of the components.

The Top Sensor SL-01 Miniature Load Cell is a reliable and accurate strain gage load cell with a protection class of IP65, making it suitable for use in harsh environments. It is manufactured in China and meets international standards for quality and performance.



Customization:

Product Customization Services for Miniature Load Cell:

Brand Name: Top Sensor

Model Number: SL-01

Place of Origin: China

Hysteresis: ±0.03%

Application: Electronic Weighing Equipment

Operating Temp Range: -20~+80℃

Load Cell Type: Strain Gage Load Cell

Output Resistance: 350±10Ω

Our Miniature Load Cell, Model SL-01, manufactured by Top Sensor in China, is highly customizable to meet your specific requirements. With a hysteresis of ±0.03%, this strain gage load cell is perfect for electronic weighing equipment. It has an operating temperature range of -20~+80℃ and an output resistance of 350±10Ω. Contact us today to discuss your customization needs!



Support and Services:

The Miniature Load Cell product technical support and services include:

  • Assistance with product selection and compatibility
  • Installation guidance and troubleshooting
  • Explanation of product features and specifications
  • Warranty information and support
  • Repair and maintenance services
  • Calibration and certification services
