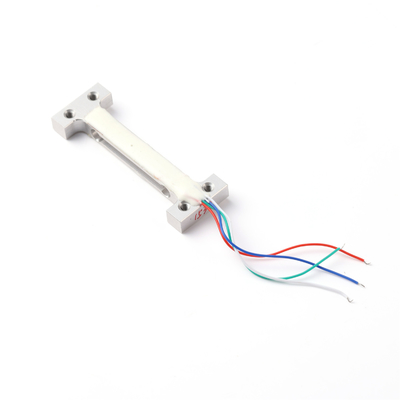

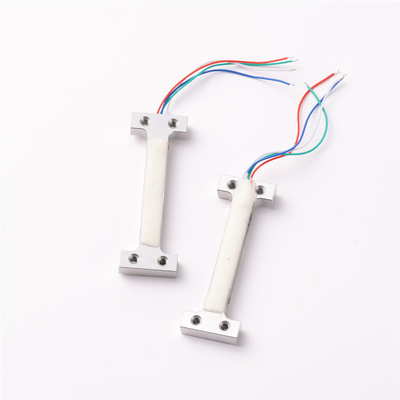

Alloy Aluminum Miniature Load Cell Strain Gage with 350-700Ω Impedance for Precise Measurements

Alloy Aluminum Miniature Load Cell Strain Gage with 350-700Ω Impedance for Precise Measurements
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Alloy Aluminum
Load Cell Type: Strain Gage Load Cell
Comprehensive Error: ≤±0.5%
Rated Output: 1.5±20%mV/V
Input Impedance: 350-700Ω
Application: Electronic Weighing Equipment
Diameter: 20mm
Hysteresis: ±0.03%
High Light:

Precise Measurements Miniature Load Cell

,

350-700Ω Miniature Load Cell

,

Strain Gage Miniature Load Cell

Basic Infomation
Place of Origin: China
Brand Name: Top Sensor
Model Number: SL-01A
Payment & Shipping Terms
Product Description

Product Description:

The Miniature Load Cell has a rated output of 1.5±20%mV/V, which ensures that it provides consistent and reliable readings. It also has an input impedance of 350-700Ω, which means that it can be used with a variety of equipment without causing any interference or compatibility issues. This micro load cell is ideal for use in a range of industries, including food processing, pharmaceuticals, and automotive manufacturing.

One of the key benefits of the Miniature Load Cell is its compact size. Measuring just a few millimeters in diameter, this micro load cell can be easily integrated into existing equipment without taking up too much space. This makes it an ideal choice for applications where space is at a premium.

The Miniature Load Cell is also easy to install and use. It comes with clear instructions and can be quickly and easily calibrated to ensure accurate readings. Its rugged construction ensures that it is durable and long-lasting, even in harsh industrial environments.

In summary, the Miniature Load Cell is a highly accurate and reliable micro load cell that is ideal for electronic weighing equipment. With a hysteresis of ±0.03%, a rated output of 1.5±20%mV/V, and an input impedance of 350-700Ω, this miniature load cell provides precise readings for a variety of applications. Its compact size, ease of installation, and rugged construction make it a popular choice for industries such as food processing, pharmaceuticals, and automotive manufacturing.



Features:

  • Product Name: Miniature Load Cell
  • Operating Temp Range: -20~+80℃
  • Range: 10kgf, 20kgf, 50kgf, 70kgf
  • Diameter: 20mm
  • Load Cell Type: Strain Gage Load Cell
  • Comprehensive Error: ≤±0.5%

This Micro Load Cell product is perfect for applications that require precise weight measurement in a small form factor. The Miniature Load Cell has a diameter of 20mm and is available in 10kgf, 20kgf, 50kgf, and 70kgf ranges. It is a Strain Gage Load Cell, with an operating temperature range of -20~+80℃. The Comprehensive Error is ≤±0.5%, making it highly accurate.



Technical Parameters:

Application: Electronic Weighing Equipment
Load Cell Type: Strain Gage Load Cell
Output Resistance: 350±10Ω
Protection Class: IP65
Operating Temp Range: -20~+80℃
Input Impedance: 350-700Ω
Connection: M4/M3 Tapped Hole
Comprehensive Error: ≤±0.5%
Diameter: 20mm
Mounting: M3 Threaded Hole


Applications:

The Top Sensor SL-01 micro load cell has an input impedance of 350-700Ω, which ensures accurate and reliable measurements. Its hysteresis is ±0.03%, making it an ideal choice for high-precision weighing systems.

This miniature load cell is widely used in the following product application occasions and scenarios:

  • Industrial weighing systems: The Top Sensor SL-01 micro load cell is commonly used in industrial weighing systems for precise weighing of small loads. It is suitable for applications such as material testing, force measurement, and process control.
  • Medical equipment: The high accuracy and reliability of the Top Sensor SL-01 micro load cell make it a perfect choice for medical equipment such as infusion pumps, dialysis machines, and blood pressure monitors.
  • Automotive industry: The Top Sensor SL-01 micro load cell is also used in the automotive industry for testing and measuring various components such as brakes, suspensions, and steering systems.
  • Agricultural equipment: The compact design and high precision of the Top Sensor SL-01 micro load cell make it an ideal choice for agricultural equipment such as harvesters, seeders, and fertilizer spreaders.

Overall, the Top Sensor SL-01 micro load cell is a versatile and reliable product that can be used in various applications that require precise measurements. Its high accuracy, compact design, and wide operating temperature range make it a top choice for engineers and designers who need a miniature load cell for their projects.



Customization:

Our services include customization of the Miniature Load Cell to meet your specific needs and requirements. Whether you require modifications to the design, material, or output, our team of experts will work with you to deliver a product that meets your expectations.

Choose Top Sensor for all your Micro Load Cell needs and experience the difference in quality and reliability.



Support and Services:

The Miniature Load Cell product technical support and services include:

  • Assistance with installation and setup
  • Troubleshooting and problem-solving
  • Product repair and maintenance
  • Replacement parts and accessories
  • Product training and education
  • Customization and engineering support
