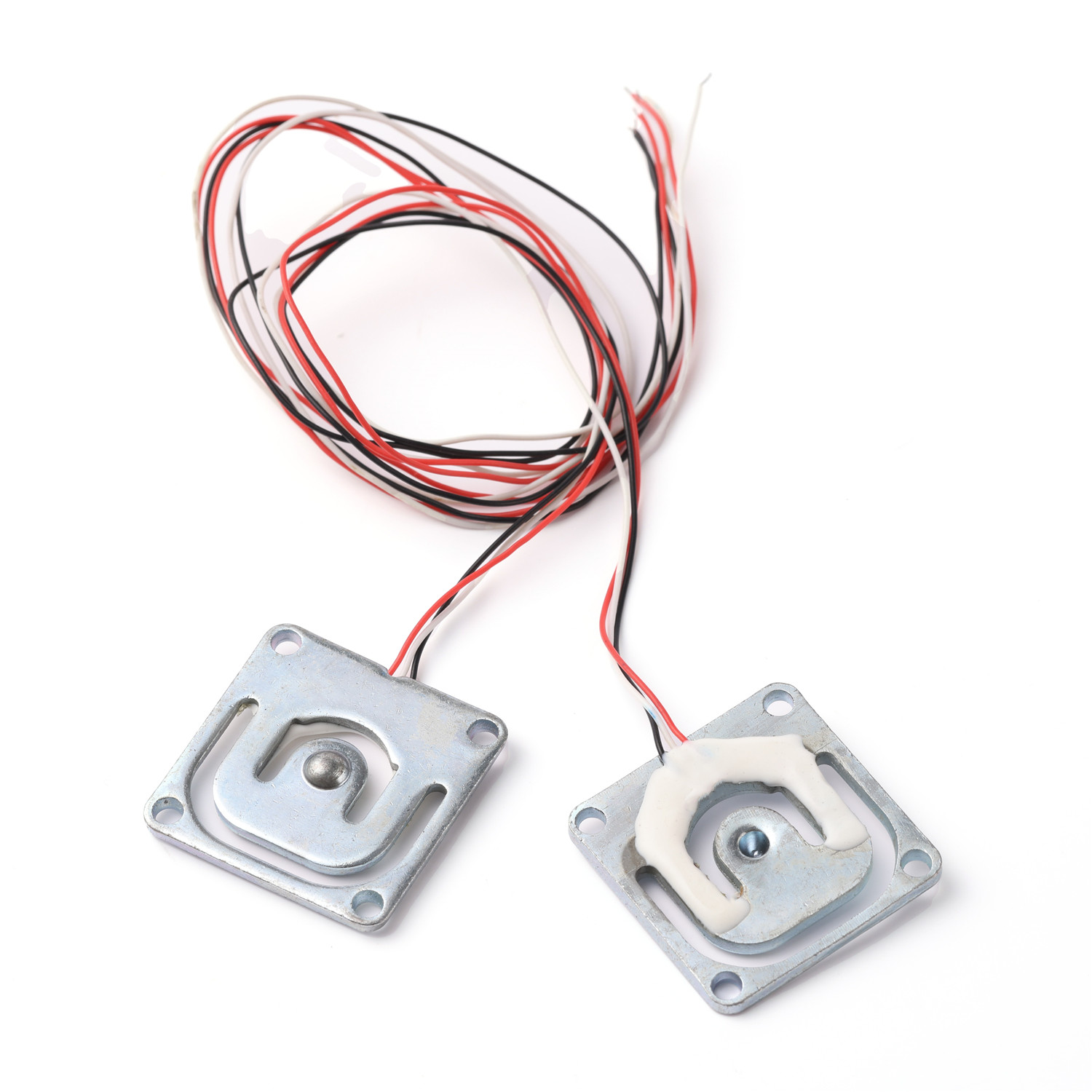

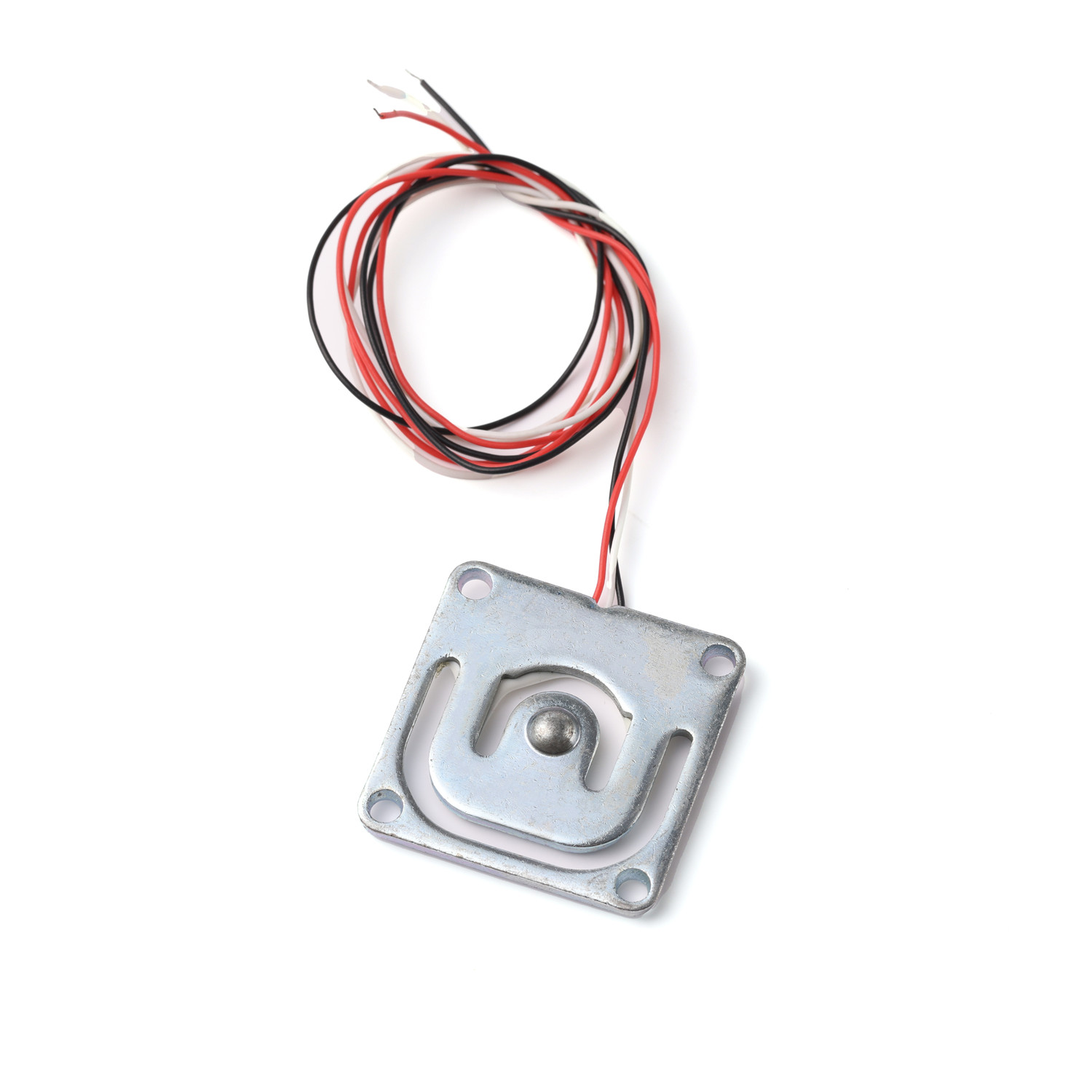

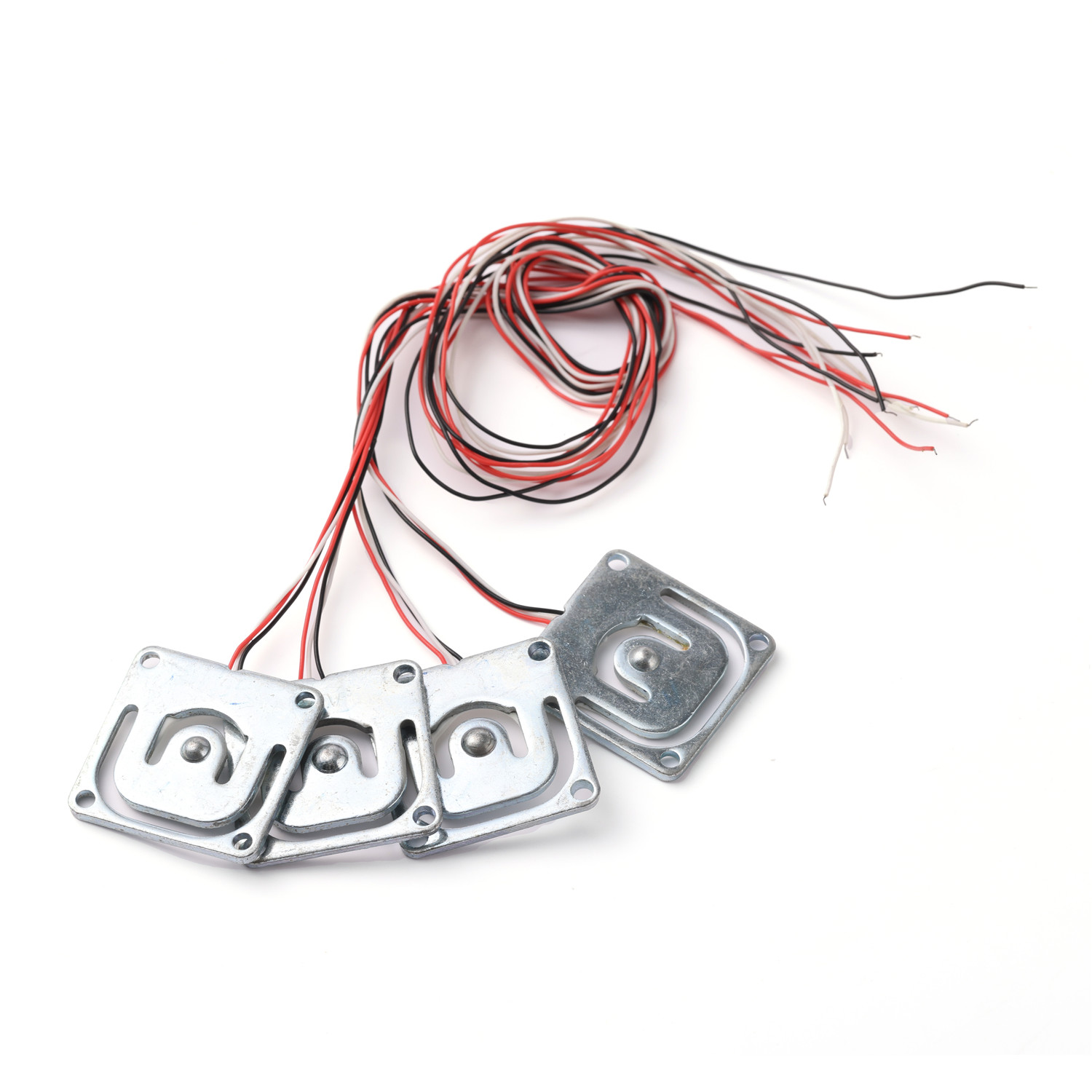

Alloy Aluminum Strain Gage Miniature Load Cell With IP65 Protection

Alloy Aluminum Strain Gage Miniature Load Cell With IP65 Protection
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Alloy Aluminum
Connection: M4/M3 Tapped Hole
Load Cell Type: Strain Gage Load Cell
Operating Temp Range: -20~+80℃
Protection Class: IP65
Rated Output: 1.5±20%mV/V
Hysteresis: ±0.03%
Diameter: 20mm
High Light:

Alloy Aluminum Miniature Load Cell

,

IP65 Miniature Load Cell

,

Strain Gage Miniature Load Cell

Basic Infomation
Place of Origin: China
Brand Name: Top Sensor
Model Number: SL-01
Payment & Shipping Terms
Product Description

Product Description:

The Miniature Load Cell comes with a connection of M4/M3 tapped hole and mounting of M3 threaded hole, making it easy to install and use. The load cell type used in this miniature load cell is a strain gage load cell, which guarantees high accuracy and reliability in force measurements.

This miniature load cell is perfect for applications that require highly accurate and reliable force measurements, such as in the medical industry, aerospace industry, and automotive industry. The small size of this micro load cell makes it easy to integrate into small systems without compromising performance and accuracy.

The Miniature Load Cell is an ideal choice for those who require a miniature load cell that offers high accuracy, high reliability, and easy integration. Its small size, coupled with its high-quality materials and strain gage load cell technology, make it a perfect fit for various force measurement applications. This miniature load cell is a must-have for anyone who requires accurate and reliable force measurements in small applications.



Features:

  • Product Name: Miniature Load Cell
  • Application: Electronic Weighing Equipment
  • Input Impedance: 350-700Ω
  • Rated Output: 1.5±20%mV/V
  • Diameter: 20mm
  • Range: 10kgf 20kgf 50kgf 70kgf


Technical Parameters:

Parameter Description
Product Miniature Load Cell
Rated Output 1.5±20%mV/V
Material Alloy Aluminum
Output Resistance 350±10Ω
Connection M4/M3 Tapped Hole
Application Electronic Weighing Equipment
Hysteresis ±0.03%
Diameter 20mm
Input Impedance 350-700Ω
Mounting M3 Threaded Hole
Comprehensive Error ≤±0.5%


Applications:

One of the primary applications of the SL-01 Miniature Load Cell is in the medical industry. The load cell's small size makes it easy to incorporate into medical equipment, such as portable monitoring devices, infusion pumps, and respirators. The load cell's input impedance of 350-700Ω and rated output of 1.5±20%mV/V make it suitable for accurately measuring forces in these medical applications.

The SL-01 Miniature Load Cell can also be used in the aerospace industry, where weight and space are critical considerations. The load cell's compact design and accurate measurements make it an ideal choice for use in aircraft and spacecraft applications. Its hysteresis of ±0.03% ensures that measurements are reliable and accurate.

In the automotive industry, the SL-01 Miniature Load Cell can be used in various applications, such as measuring the force required to operate pedals or in the suspension system. Its small size and accurate measurements make it an ideal choice for these applications. The load cell can also be used in industrial automation, such as in robotics, where precise measurements of force are essential.

Overall, the SL-01 Miniature Load Cell by Top Sensor is a reliable and accurate product suited for a wide range of applications. Its small size, accurate measurements, and versatility make it an excellent choice for applications where a Micro Load Cell or Miniature Load Cell is required.



Customization:



Support and Services:

The Miniature Load Cell product technical support and services include:

  • Expert technical assistance for installation, calibration, and troubleshooting
  • Product warranty and repair services
  • Customization options to fit specific application needs
  • Documentation and user manuals
  • Training and educational resources
