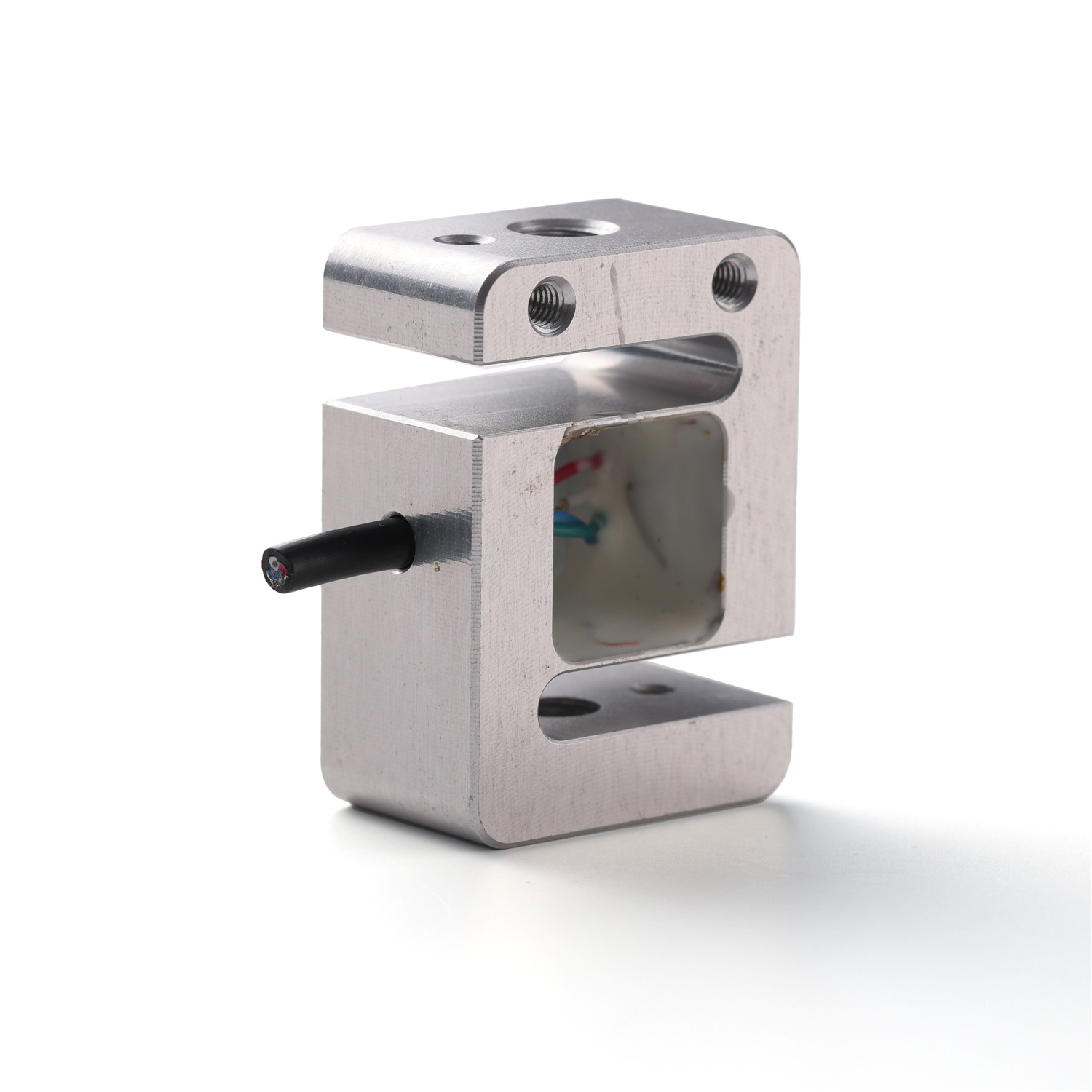

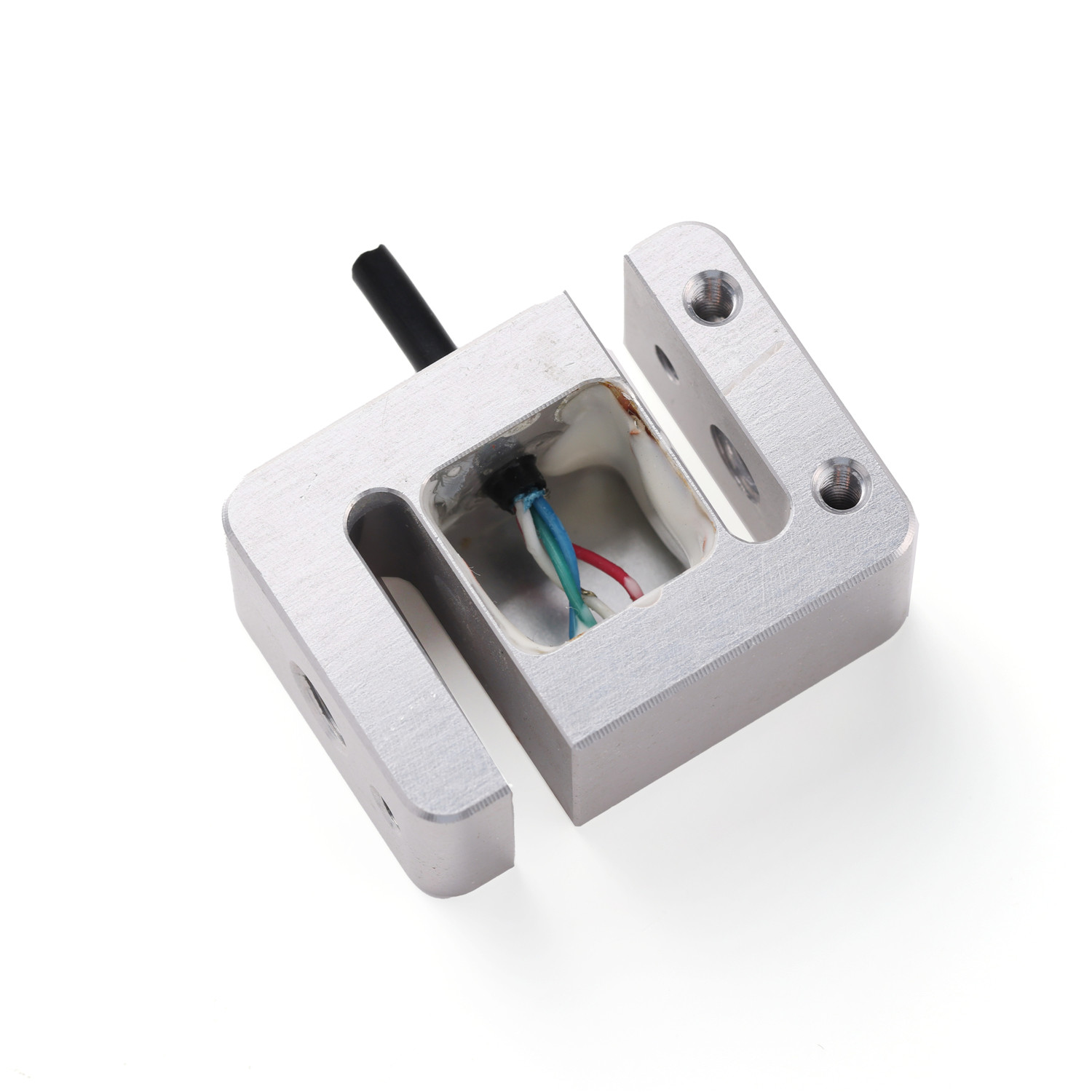

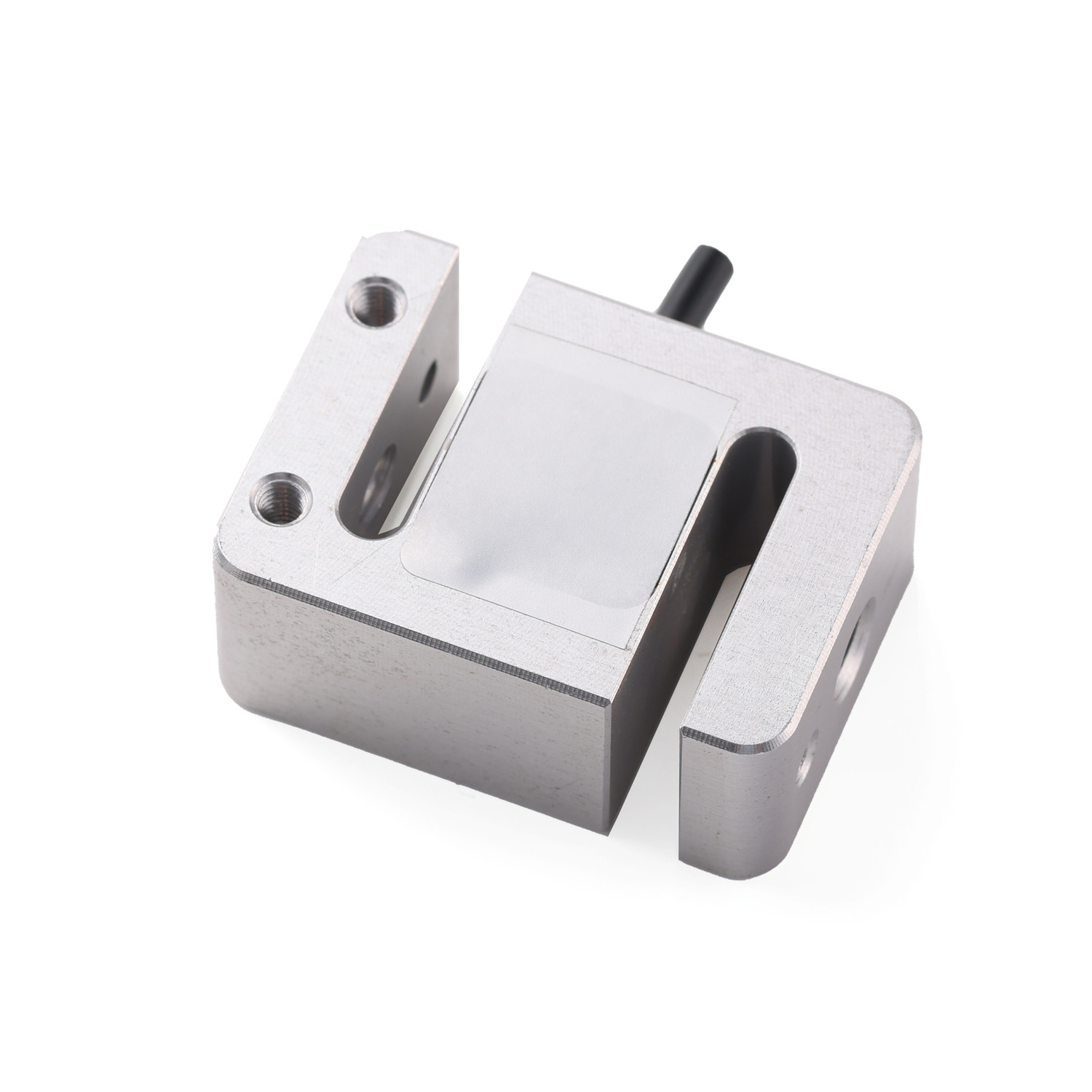

IP67 Water Protection S beam Load Cell for Customer Requirements

IP67 Water Protection S beam Load Cell for Customer Requirements
Features Gallery Product Description Request A Quote
Usage: Crane Scale
Thermal Effects On Output: ±0.001% Full Scale/°F
Sensitivity: 2.0±10%mV/V
Capacity: 10, 20, 50, 100, 200, 500, 1000N
Output: 2 MV/V
Model: FA302
Maximun Excitation: 15V
Weight: 0.5kg
High Light:

Water Protection S beam Load Cell


Customer S beam Load Cell


IP67 S beam Load Cell

Basic Infomation
Place of Origin: China
Brand Name: Top Sensor
Model Number: SS-02
Payment & Shipping Terms
Product Description

Product Description:

The S beam Load Cell is designed to provide accurate readings even under harsh environmental conditions. With an operating temperature range of -65°F To 250°F, this load cell can be used in a wide range of applications without any issues. The load cell's stainless steel/alloy steel construction ensures that it can withstand harsh environments and is highly durable.

The S beam Load Cell is designed in a unique S shape, which makes it highly versatile and easy to install. This load cell is perfect for applications where space is limited, and the load needs to be applied in a specific direction. The load cell's design allows for accurate readings even when there is lateral force applied to it.

The cable size of the Stainless Steel S type Load Cell is φ5.4x3000mm, which makes it easy to install and connect to other devices. This load cell also has a weight of 0.5kg, which makes it highly portable and easy to transport.

The S beam Load Cell is widely used in various industries such as automotive, aerospace, construction, and food processing. This load cell is ideal for weighing applications where accuracy and reliability are critical. The Stainless Steel S type Load Cell is highly recommended for applications where the load cell may come in contact with corrosive materials or extreme temperatures.



  • Product Name: S Beam Load Cell
  • Input Impedance: 650/350±5Ω
  • Water Protection: IP67
  • Cable Size: φ5.4x3000mm
  • Usage: Crane Scale

Other S type Load Cells:

  • Robot S type Load Cell
  • Stainless Steel S type Load Cell

Technical Parameters:

Cable Size φ5.4x3000mm
Weight 0.5kg
Capacity 10, 20, 50, 100, 200, 500, 1000N
Output 2 MV/V
Maximum Excitation 15V
Usage Crane Scale
Water Protection IP67
Style S Beam
Material Stainless Steel/Alloy Steel
Input Impedance 650/350±5Ω

This is an S beam Load Cell, also known as Robot S type Load Cell or Stainless Steel S type Load Cell.



The SS-02 load cell's IP67 water protection ensures durability and longevity, even in harsh environments. This makes it well-suited for use in industrial settings where moisture and dust are common. The load cell's maximum excitation of 15V further adds to its versatility.

The S type load cells are carefully designed to provide accurate and reliable weight measurements. Their unique shape allows for the distribution of weight across the entire cell, resulting in precise readings. Additionally, their compact size makes them an excellent choice for applications where space is limited.

Crane scale applications are one of the most common uses for S type load cells. These load cells are perfect for measuring the weight of heavy loads lifted by cranes. They are also used in other industrial applications such as hopper scales, tank scales, and platform scales.

Overall, Top Sensor's SS-02 load cell is a reliable and accurate choice for any crane scale application. Its miniature size, stainless steel construction, and IP67 water protection make it a versatile and durable choice for a wide range of industrial settings.


Support and Services:

The S Beam Load Cell product technical support and services include:

  • Assistance with product selection and customization
  • Installation guidance and troubleshooting
  • Product maintenance and repair services
  • Calibration and certification services
  • Technical documentation and product manuals

Our team of experts are dedicated to providing exceptional support and service to ensure the optimal performance of your S Beam Load Cell product.
