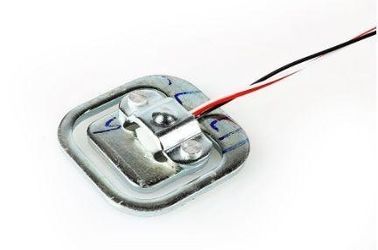

40kg 50kg Micro Load Cell SL-07 IP65 Waterproof CE Certification

Place of Origin China
Brand Name TOP SENSOR
Certification CE
Model Number SL-07
Minimum Order Quantity 100 sets
Price Negotiable
Packaging Details 200 sets per carton
Delivery Time 15 days
Payment Terms T/T, Western Union
Product Details
Product Name Micro Load Cell Capacity 40kg,50kg
Material Alloy Steel Model Number SL-07
High Light

mini load cell

,

small load cell

,

50kg Micro Load Cell

Leave a Message
Product Description
Micro Load Cells, Body Scale Load Cells, Personal Scale Load Cells,


Model: SL-07
Capacity: 40kg,50kg


Features:
Half Bridge, very small size, alloy steel material, Low Profile,Colourless anodized,s
suitable for simple weighing scales such as personal scales, body scales etc


Dimensions:(mm)

40kg 50kg Micro Load Cell SL-07 IP65 Waterproof CE Certification 0



SPECIFICATION
Precision: 0.3% FS
Rated Output: 1.0 ±0.1
Creep(%F.S/30min): ±0.3
Zero balance(%F.S): ±1.0
Input resistance: 1000±10
Output resistance: 1000±10
Insulation resistance: ≥5000(100VDC)
Temp. effect on span(%F.S/10℃): ±0.3
Temp. effect on zero(%F.S/10℃): ±0.3
Use temp. range(℃): -15~+40
Excitation voltage(V): 9~12(DC)
Safety overload (%F.S) 120%
Ultimate overload (%F.S) 150%
Defend grade IP65
Cable Length: 220 -660 mm



40kg 50kg Micro Load Cell SL-07 IP65 Waterproof CE Certification 1
