Full Bridge Resistant Strain Gauge with Solder Points

Full Bridge Resistant Strain Gauge with Solder Points
Features Gallery Product Description Request A Quote
Features
Specifications
Hysteresis: ±0.05%
Measurement Range: 0-1000 Microstrain
Operational Temperature: -20～＋80℃
Usage: Load Cell Sensor
Carrier Material: Phenolic Aldehyde/Polyimide/Epoxy
Feature: Micro Pressure Sensor
Material: Metal Foil
Creep: ±0.05% Full Scale
Type: Resistance Strain Gauge
Lead Wire: 3-wire, 1 M Length
Resistance: 350,500,1000 Ohm
Service: Custom
Model: EB Series
Working Temperature: －20～＋80℃,
For Material: Steel Or Alloy Aluminum
Base Material: Phenolic Aldehyde /Polyimide/Epoxy
Highlight:

full bridge strain gauge with solder points

,

foil strain gauge with solder connections

,

resistant strain gauge full bridge type
Basic Infomation
Place of Origin: China
Brand Name: Top Sensor
Model Number: EB series
Payment & Shipping Terms
Packaging Details: carton box
Product Description

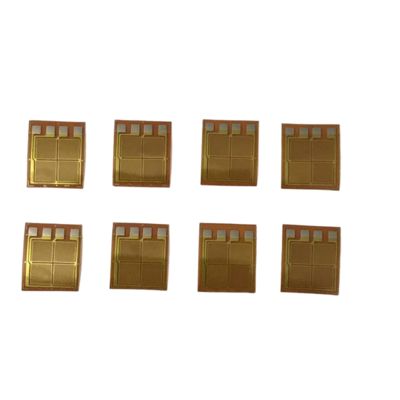

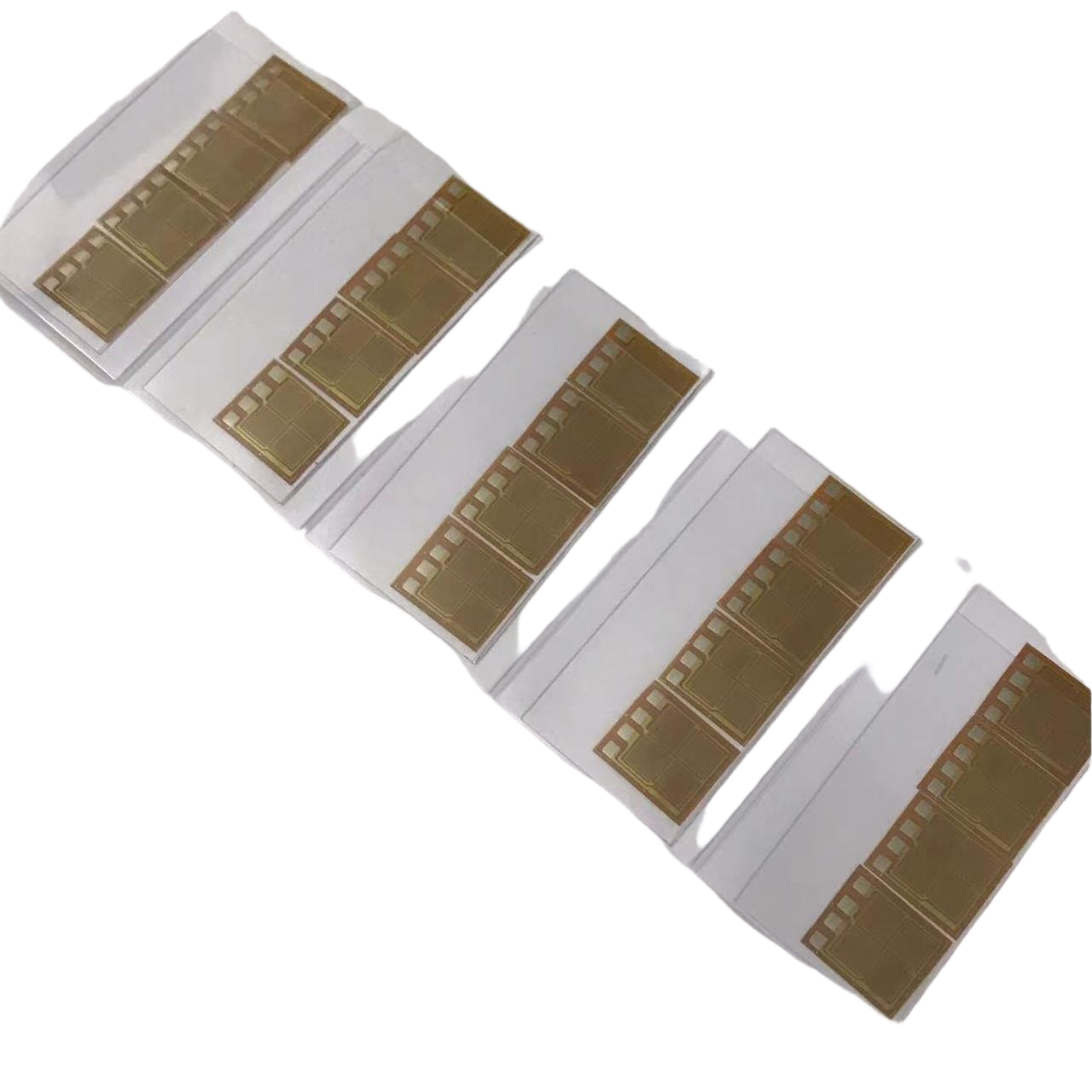

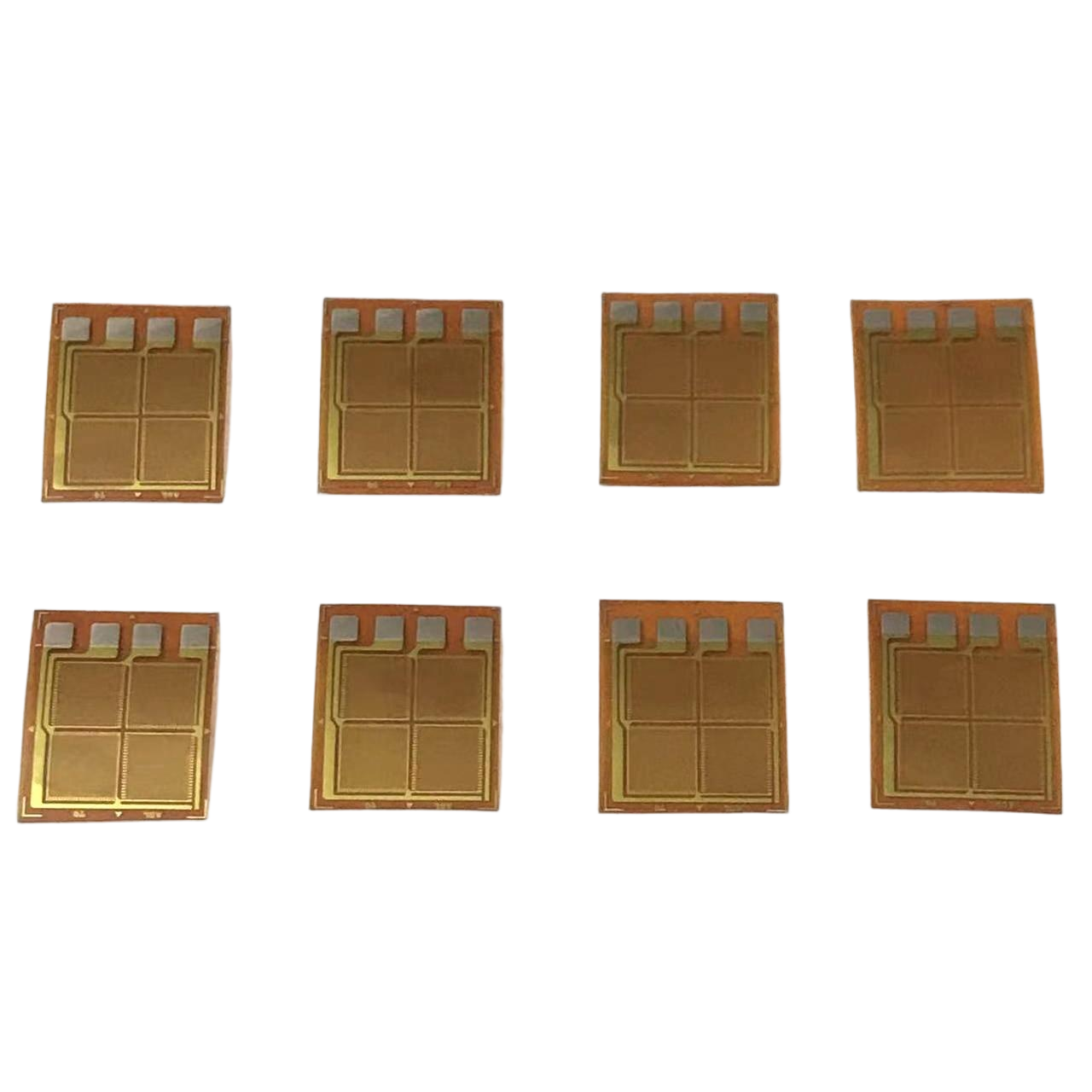

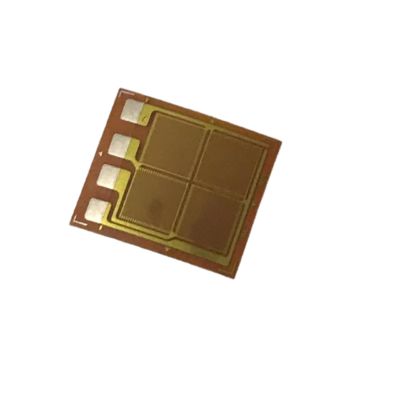

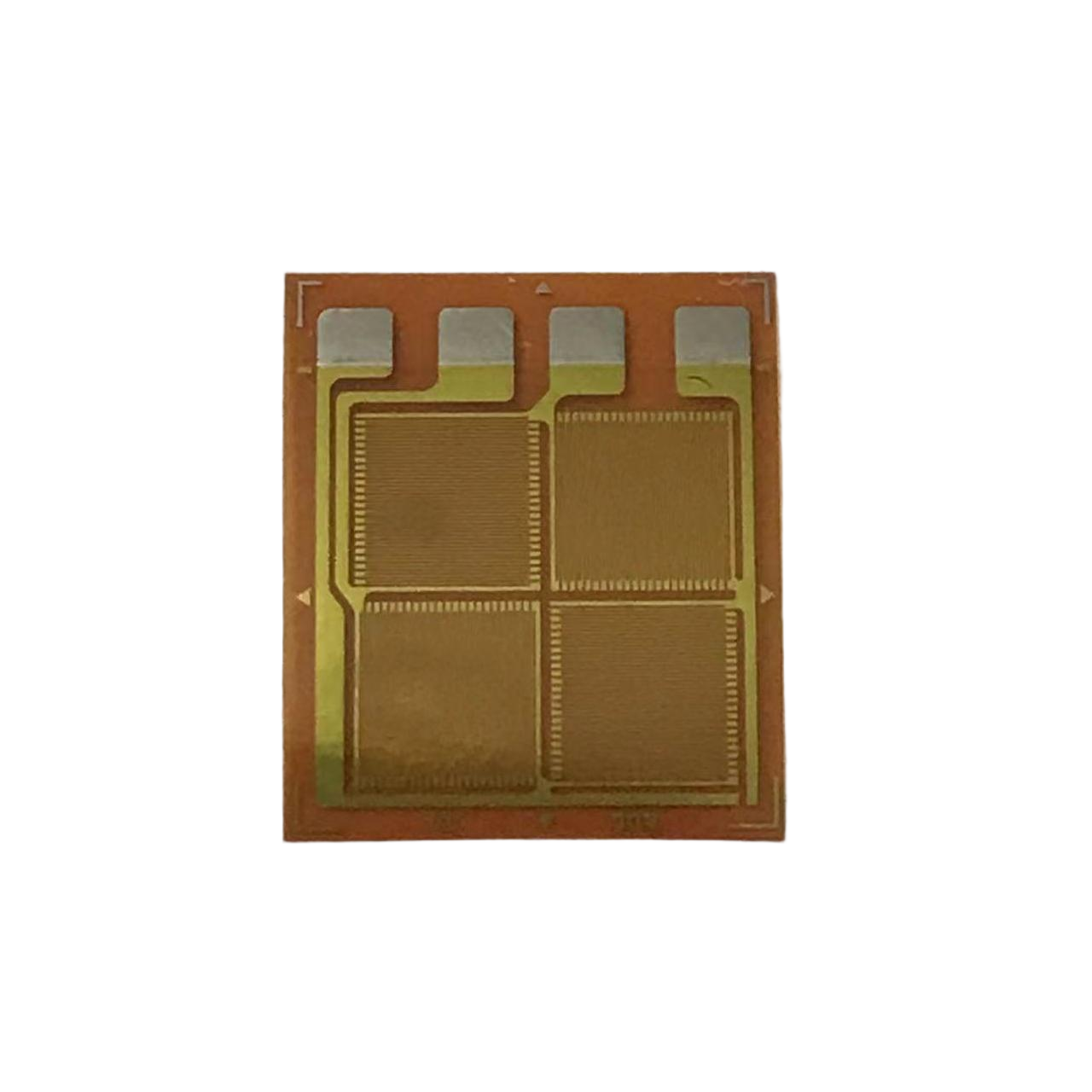

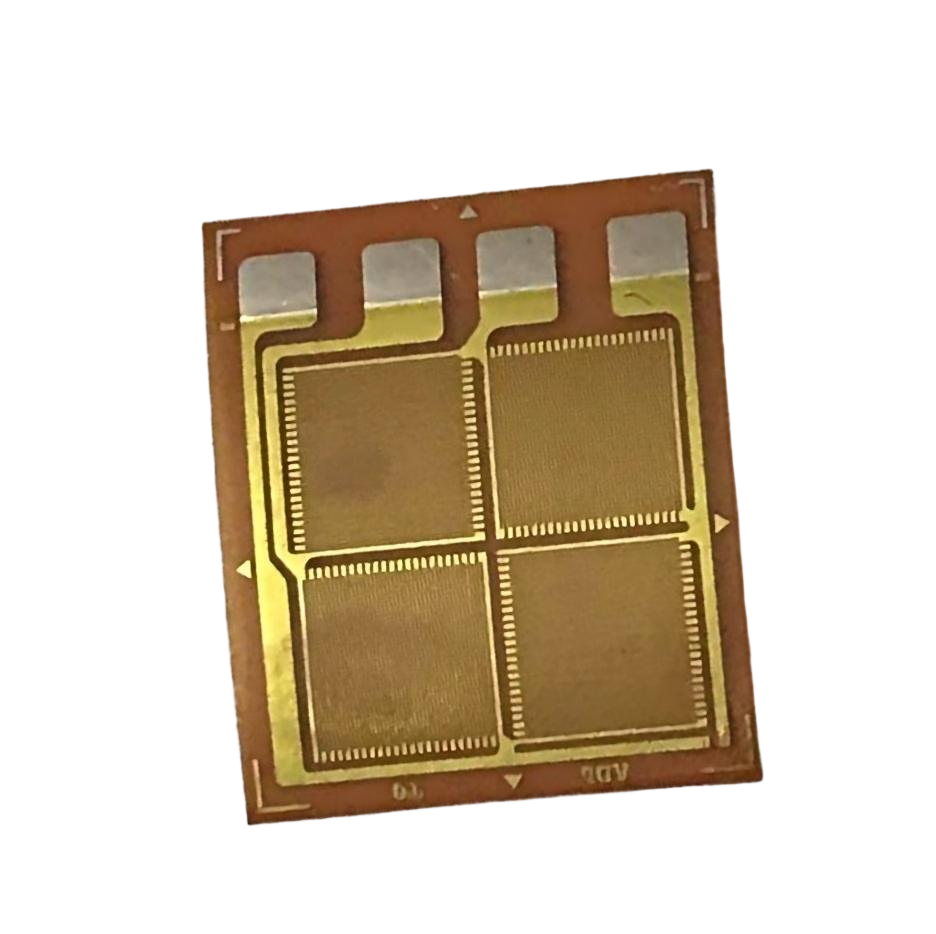

Full Bridge Resistant Strain Gauge with Solder Points

Model: EB-A series

Product Description:

A full-bridge strain gauge is a high-performance sensor configuration that uses four active strain gauges wired into a Wheatstone bridge circuit All four gauges are bonded to the test object, which maximizes measurement sensitivity and provides superior compensation for thermal effects and extraneous loads compared to quarter- and half-bridge setups.

Features:

  • Product Name: Foil Strain Gauge
  • Grid number: 4
  • Hysteresis: ±0.05% Full Scale
  • Material: Steel or Alloy Aluminum
  • Measurement Range: 0-1000 Microstrain
  • Service: Custom design on carrier size, grid dimension
  • Carrier Material: Imported Phenolic Aldehyde/Polyimide/Epoxy
  • Measuring Material: Foil(nickel copper alloy, Constantan or Karma)
  • Resistance: 350,500,1000 Ohm
  • Operational temperature －20～＋80℃, Temperature compensation range ＋10～＋80℃
  • Each package 40 pcs, can be soldered copper wire, good performance
  • Three (3) to Five (5) solder points



Dimension:


Model Measuring Grid Size (mm) Carrier Size (mm)
BF350-3EB-A 2.25×2.65 9.2×7.7
ZF1000-3EB-A 2.25×2.65 9.2×7.7

Note: Other models and sizes are available according to customer request







Full Bridge Resistant Strain Gauge with Solder Points 0

Customization: carrier size, grid dimension, resistance
