Robust Strain Load Cell For Weighing Solution

1 pc

MOQ

Negotiable

Price

Robust Strain Load Cell For Weighing Solution

Features Gallery Product Description Request A Quote

Features

Specifications

Basic Infomation

Place of Origin: China

Brand Name: TOP SENSOR

Certification: CE

Payment & Shipping Terms

Packaging Details: 1 pc per box, 20 pcs per Carton

Delivery Time: 15-25 days

Payment Terms: T/T, Western Union

Supply Ability: 2000 pcs per month

Gallery

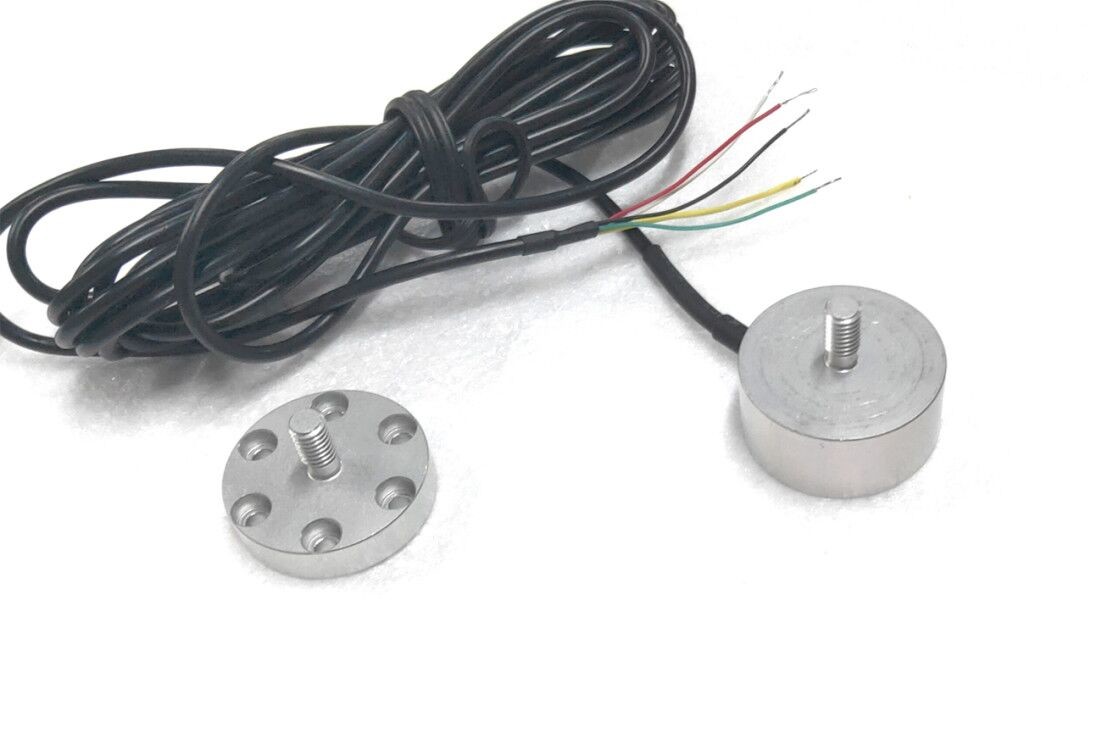

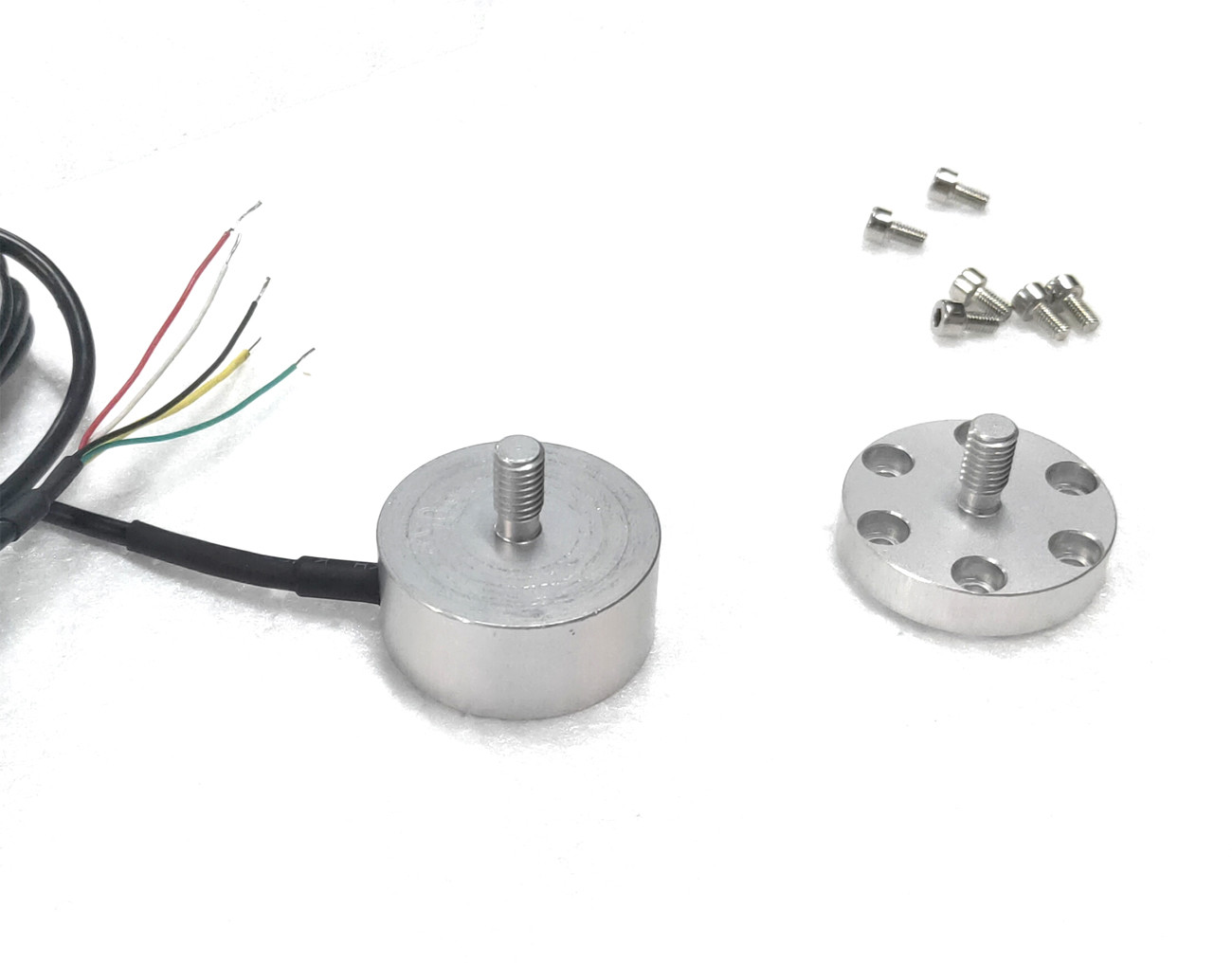

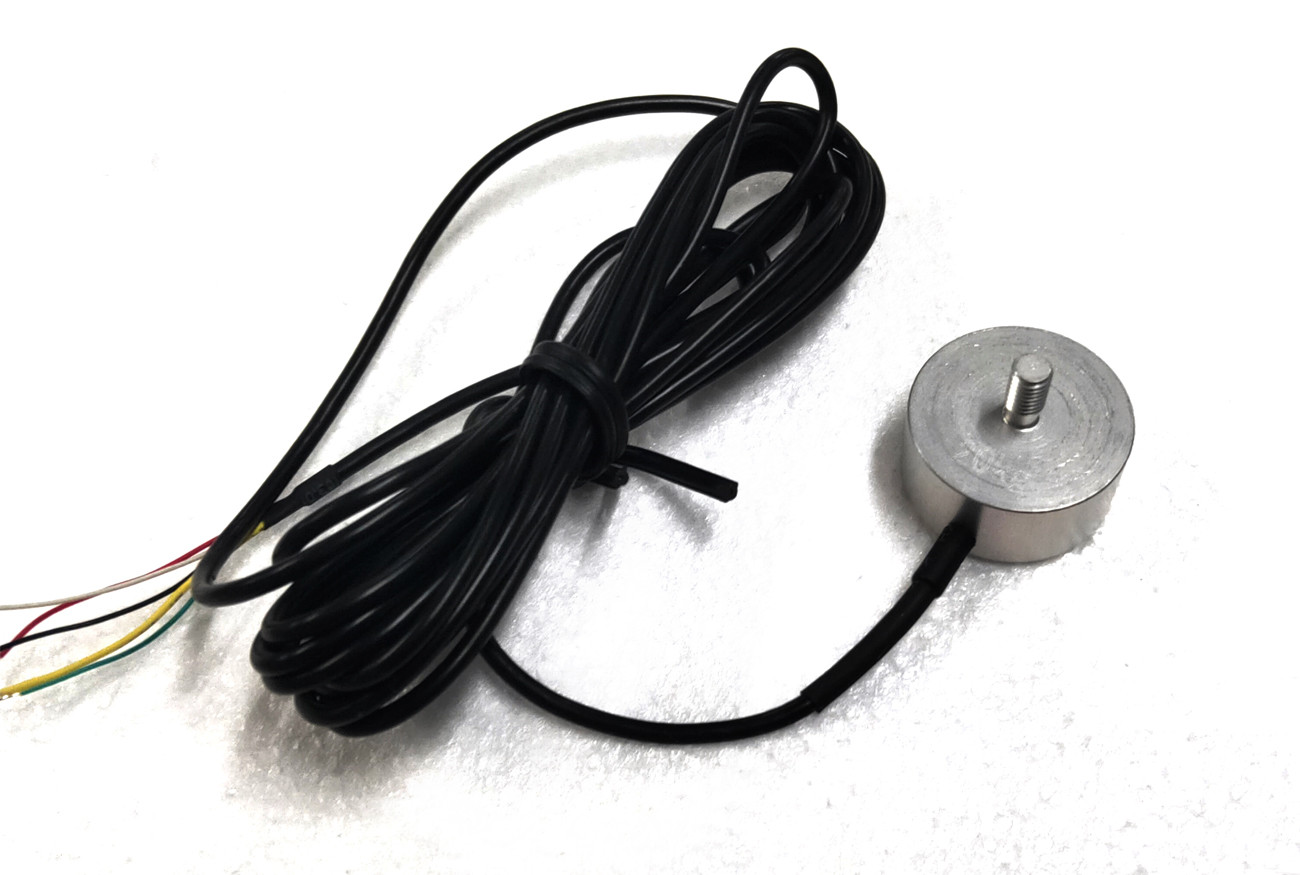

Robust Strain Load Cell For Weighing Solution

Product Description

Robust Strain Load Cell For Weighing Solution

Model: CL-04
CAPACITY: 100KG-30,000KG

Features:

High Strength Alloy steel
High Precision, Oil-proof, Waterproof IP66
Spoke type, easy installation
Suitable for electronic truck scales
Platform scales and other electronic weighing devices

Dimensions:(mm)

SPECIFICATION
Precision:		C2
Rated Output:		2.0 ±0.003
Creep(%F.S/30min):		±0.03
Zero balance(%F.S):		±1.0
Input resistance:		700±10
Output resistance:		700±5
Insulation resistance:		≥5000(100VDC)
Temp. effect on span(%F.S/10℃):		±0.03
Temp. effect on zero(%F.S/10℃):		±0.03
Use temp. range(℃):		-30～+65
Excitation voltage(V):		9～12(DC)
Safety overload (%F.S)		150%
Ultimate overload (%F.S)		200%
Defend grade		IP66
Cable Length:		1meters -6 meters
Wire Connection Method
RED=Input+	BLACK=Input-	GREEN=Output+	WHITE=Output-
