Name: Shear Beam Loadcell With Screw Mounting Large Capacity For Vehicle Weighing System
Brand: Top Sensor Technology Co.Ltd
SKU: SD-03
Price: 500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Features: High Precision Good Performance

Mounting Type: Screw Mount

Compensated Temperature: -10℃-50℃

Temperature Effect On Zero: ≤0.02%F.S./10℃

Repeatability: ≤0.01%F.S.

Linearity: 0.2 %FS

Operating Temperature: -10 ℃-60 ℃

Hysteresis: ≤0.02%F.S.

Highlight:

Screw Mounting Shear Beam Loadcell

Vehicle Weighing System Shear Beam Loadcell

Large Capacity Shear Beam Loadcell

Basic Infomation

Place of Origin: China

Brand Name: Top Sensor

Model Number: SD-03

Payment & Shipping Terms

Gallery

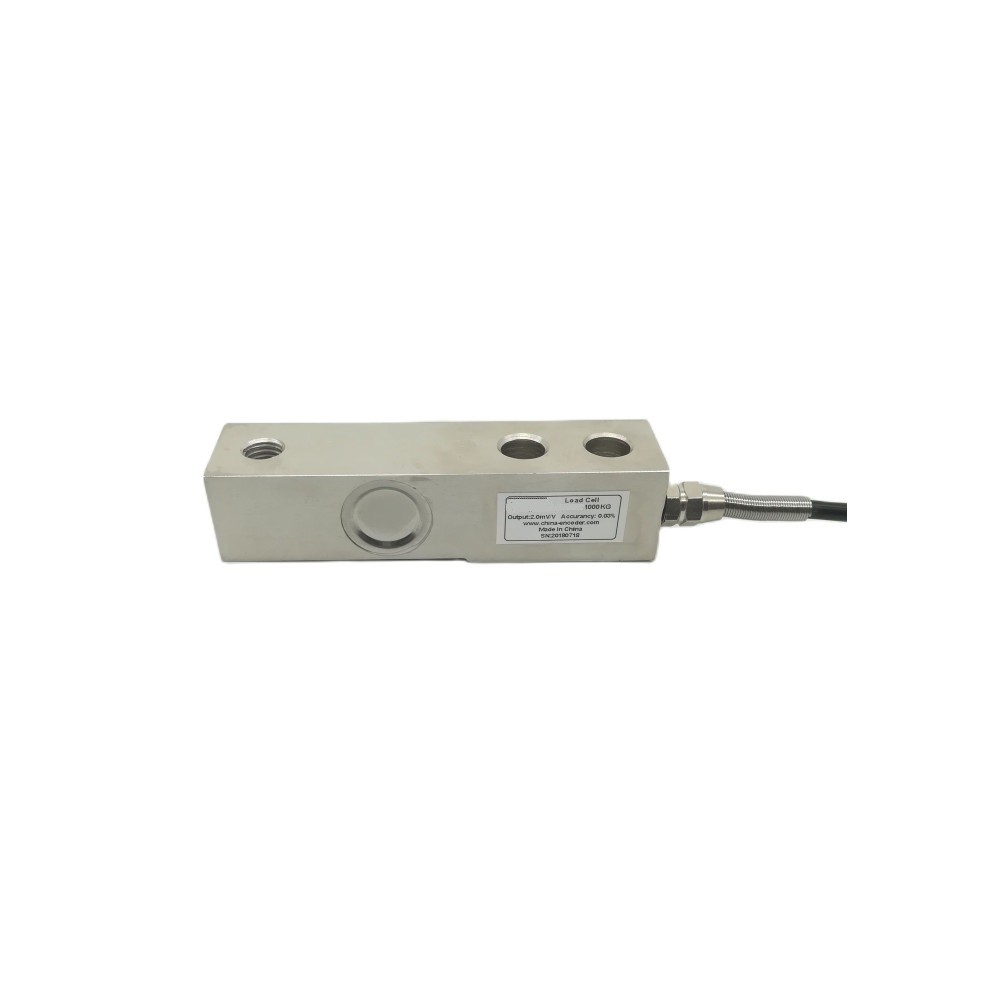

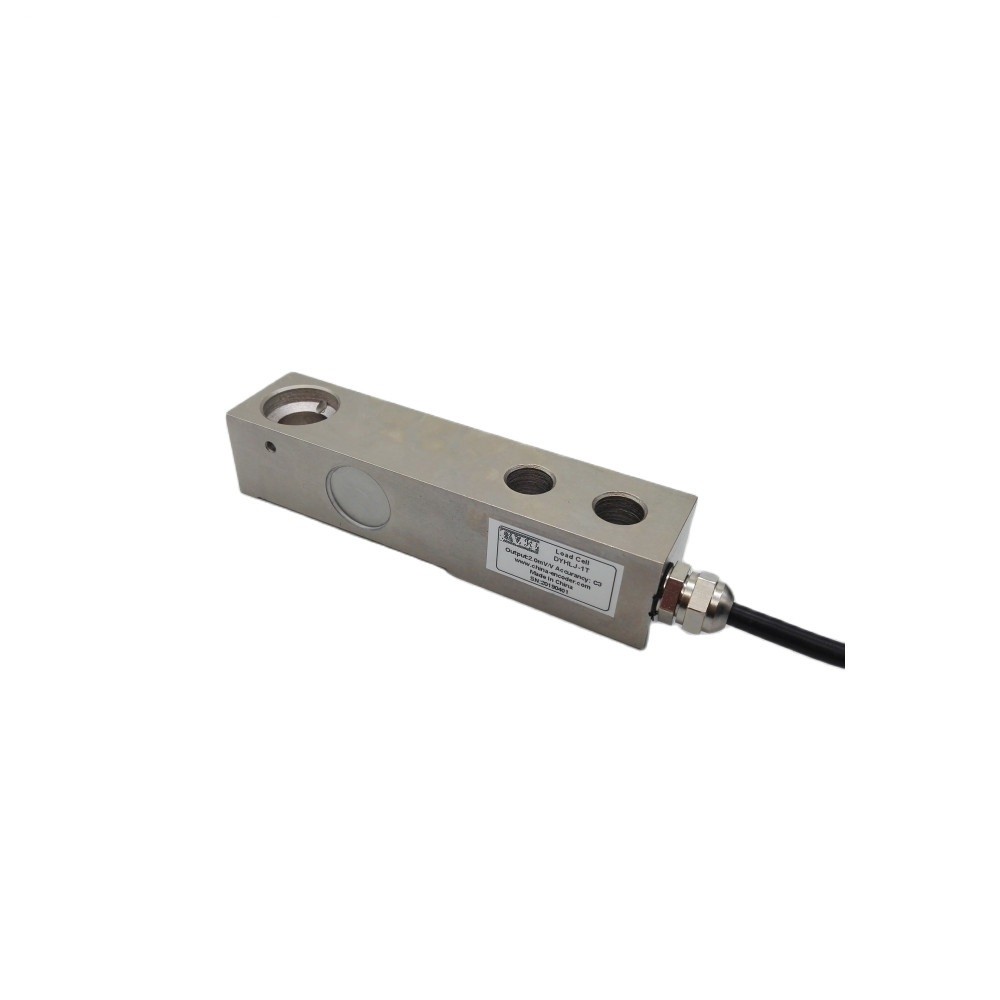

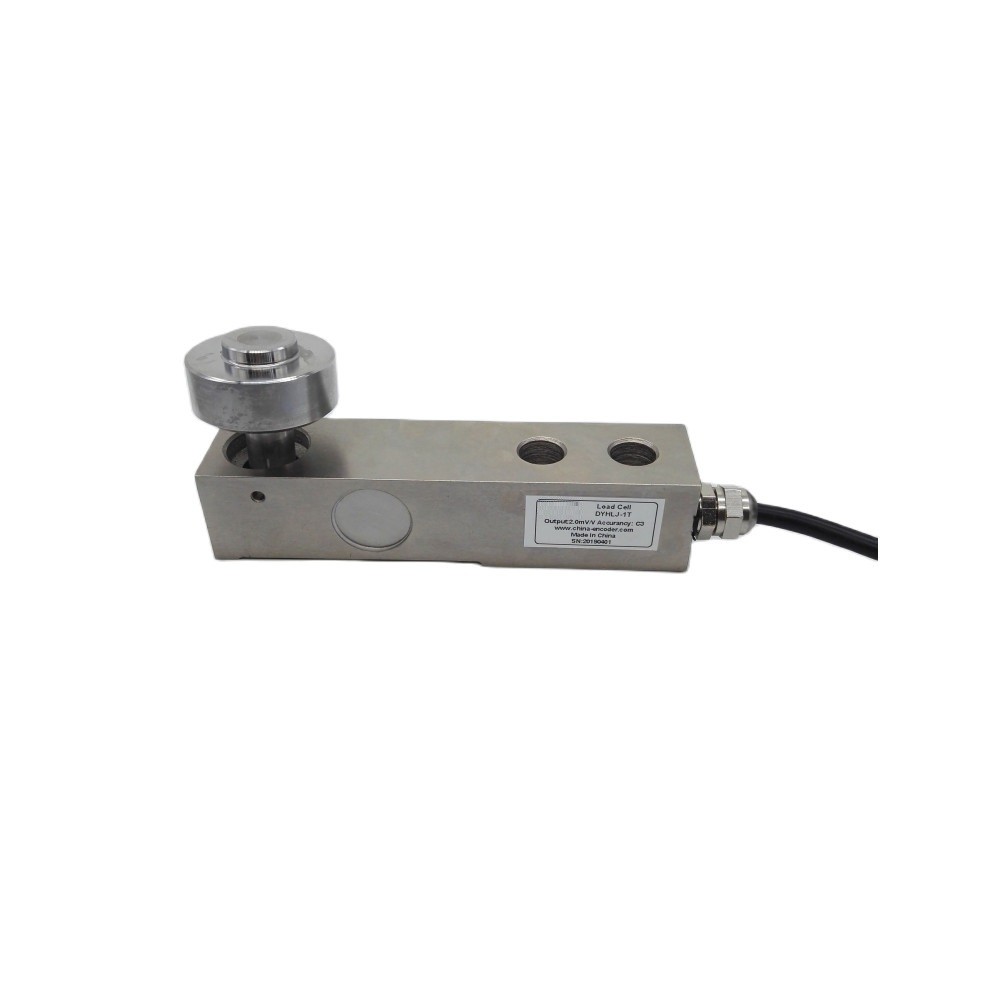

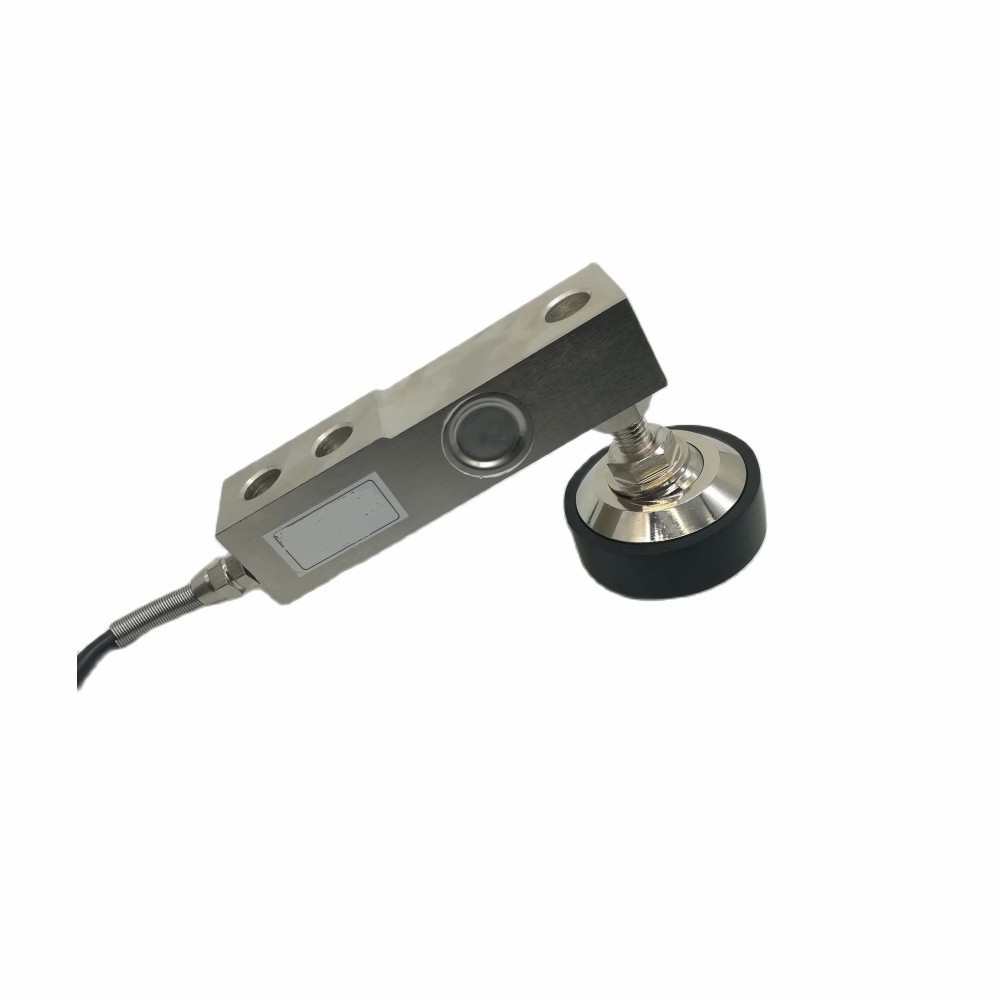

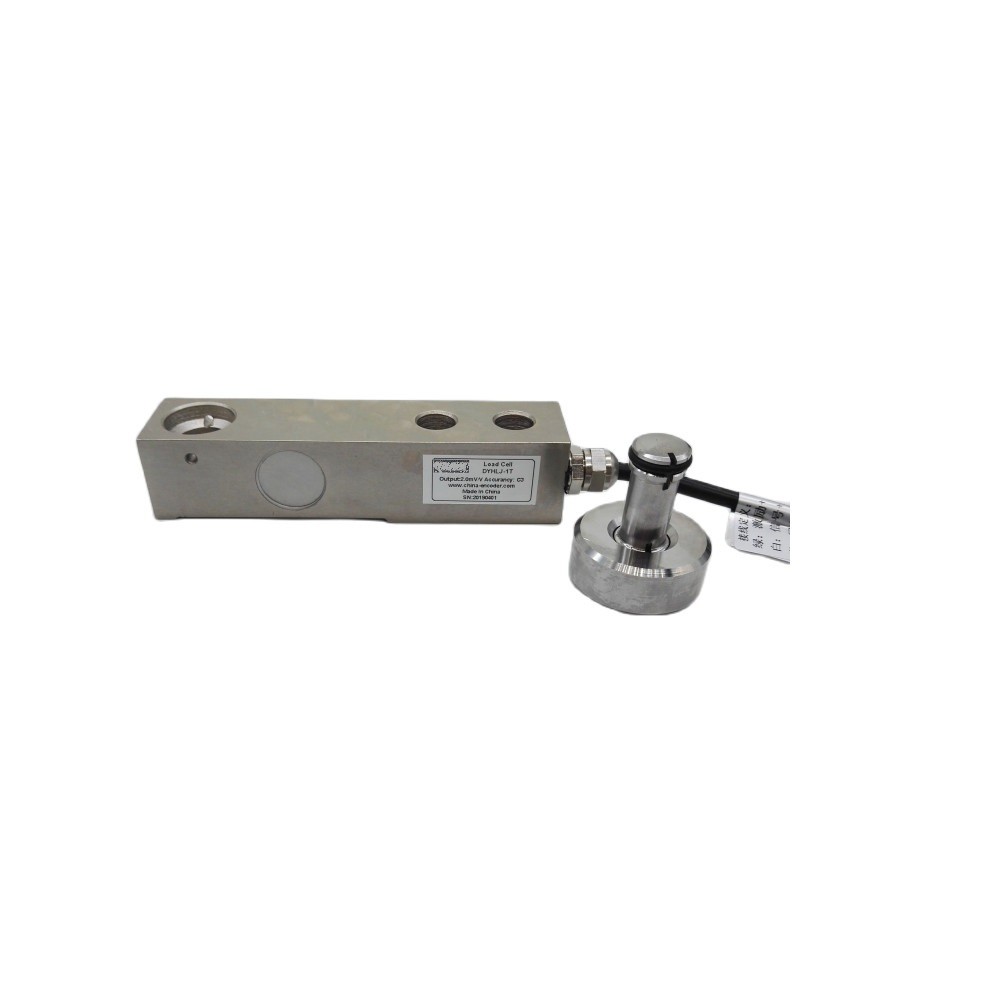

Shear Beam Loadcell With Screw Mounting Large Capacity For Vehicle Weighing System

Product Description

Large Capacity Shear Beam Loadcell with Screw Mounting

Single Shear Beam Load Cells

Model: SD-03

Capacity: 100kg-10,000kg

Features:
Single Shear Beam Load Cell, Bending beam load cell.

Capacity range from 100kg to 10,000kg.
Material: Alloy Steel or Stainless Steel, High quality, high accuracy OIML standard, low costs,
Laser Sealed, Water Proof to IP68, Anti corrosion.
Application: Floor scales, platform scales, weigh bridge and other weighing devices.

Dimensions:(mm)

Capacity	L	L1	L2	L3	L4	d	B	M
1~4(klb) 0.5~2(t) 5KSE	130	56.5	15.8	25.4	76.2	13.5	31.8	M16X2 M12X1.75 1/2-20UNF
5~10(klb) 2.5~5(t)	171.5	77.2	19.1	38.1	95.3	20	38.1	M18X1.5 3/4-16UNF
20(klb) 10(t)	222.3	101.6	25.4	50.8	120.7	26.2	50.8	M24x2 1-12 UNF

SPECIFICATION:
Precision:		C3
Combined Error:		±0.02
Rated Output:		2mv / 3mv/v±0.003
Creep(%F.S/30min):		±0.02
Non-linearity(%F.S)		±0.02
Hysteresis:(%F.S)		±0.02
Zero balance(%F.S):		±1.0
Input resistance:		350±5
Output resistance:		350±5
Insulation resistance:		≥5000(100VDC)
Temp. effect on span(%F.S/10℃):		±0.017
Temp. effect on zero(%F.S/10℃):		±0.02
Use temp. range(℃):		-20～+55
Excitation voltage(V):		9～12(DC)
Safety overload (%F.S)		150%
Ultimate overload (%F.S)		200%
Defend grade		IP68
Cable Length:		3 meters -10 meters
Wire Connection Method
RED=EXC+	BLACK=EXC-	GREEN=Signal+	WHITE=Signal-
