Link Type Tension Load Cell Custom Service

10
MOQ
Link Type Tension Load Cell Custom Service
Features Gallery Product Description Request A Quote
Features
Specifications
Defend Grade: IP67
Capacity: 1T-70T
Application: Weighing Industrial
Model: PR-01
Non-Linearity: ≤±0.02% F.S.
Feature: High Accuracy
Materia: Alloy Steel
Recommended Excitation: 5V
Highlight:

Crane Scale Tension Load cell

,

Link Type Tension Load cell

,

Plate Ring Tension Load cell
Basic Infomation
Place of Origin: China
Brand Name: Top Sensor
Model Number: PR-01 series
Payment & Shipping Terms
Delivery Time: 10 days
Payment Terms: T/T in advance
Supply Ability: 2000 pcs per month
Product Description

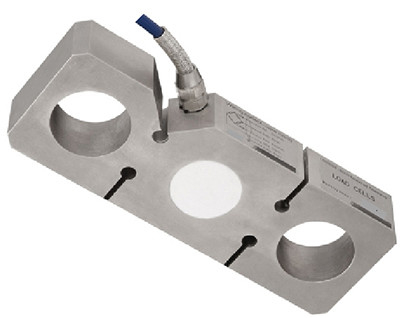

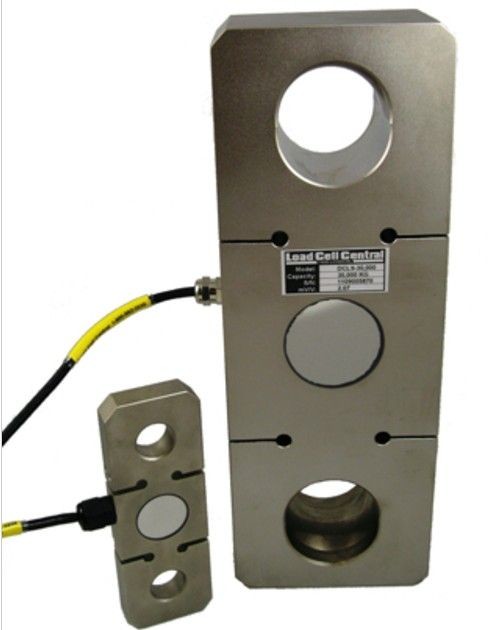

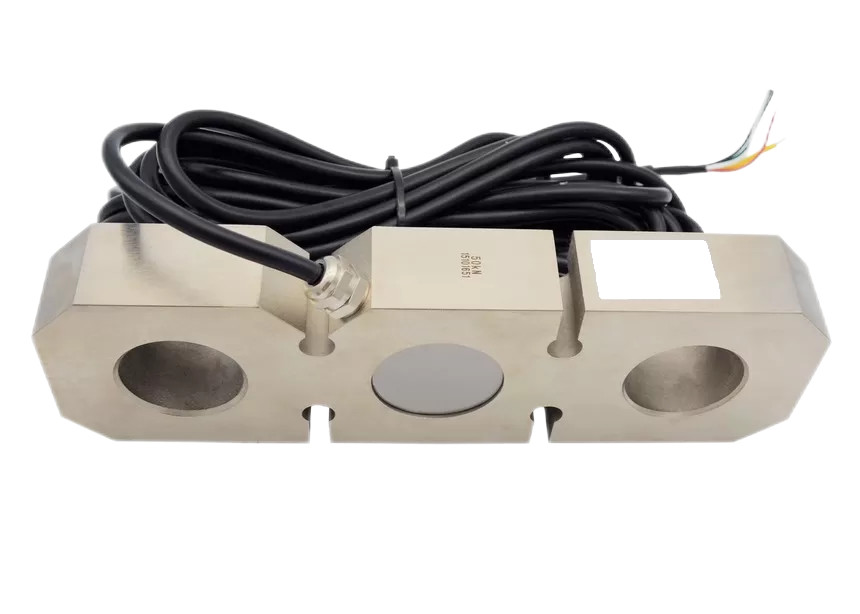

PR-01 Plate Ring Link Type Tension Load Cell Customizable OEM

Product Description:



Link Type Tension Load Cell Custom Service 0

Features:

Capacity: 1-70t
Material :Alloy Steel
High Accuracy and Long Time Stable

Technical Parameters:

Specifications:
Capacity 1t-70t
Material Alloy Steel
Accuracy: 0.02% F.S
Rated Output: 2.0 ±0.003
Creep(%F.S/30min): ±0.02
Zero balance(%F.S): ±1.0
Input resistance: 350±10
Output resistance: 350±10
Insulation resistance: ≥5000(100VDC)
Temp. effect on span(%F.S/10℃): ±0.03
Temp. effect on zero(%F.S/10℃): ±0.03
Use temp. range(℃ ): -35～+85
Excitation voltage(V) : : 9～12(DC)
Safety overload (%F.S) 150%
Ultimate overload (%F.S) 200%
Defend grade IP67
Cable Length: 5 meters -20 meters
Wire Connection Method
Red=Input+ Black=Input- Green=Output+ White=Output-





Applications:

 Water Bag Load Testing

Overhead Weighing
Load Cell Rental or Hire
Bollard Pull Testing


Support and Services:

The Plate Ring Type Load Cell product technical support and services provided are:

  • Assistance with load cell selection and specification
  • Technical consultation on installation, calibration, and operation
  • Repair and maintenance services
  • Training and education on load cell technology and applications
  • Customization and engineering solutions to meet specific requirements
  • 24/7 technical support and troubleshooting


Packing and Shipping:

Product Packaging:

  • The Column Type Load Cell will be securely packed in a sturdy cardboard box.
  • The load cell will be wrapped in bubble wrap for added protection.
  • Product dimensions: 10cm x 10cm x 30cm.

Shipping:

  • The Plate Ring Link Type Tension Load Cell will be shipped via a reputable courier service.
  • Shipping cost will be calculated based on the destination and weight of the package.
  • Shipping time may vary depending on the destination, but typically takes between 5-10 business days.
  • A tracking number will be provided once the package has been shipped.
