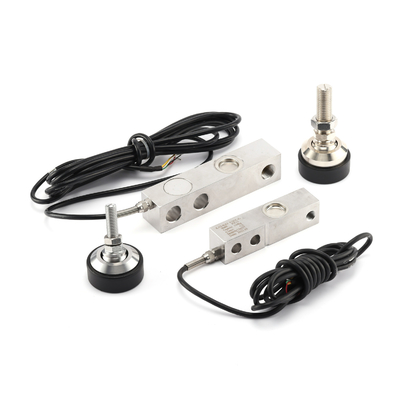

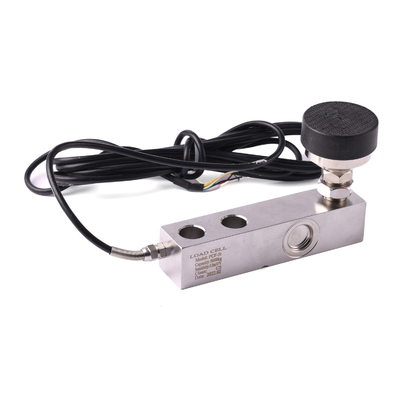

Stainless Steel Floor Scale Load Cell with ±0.02% Accuracy Rated -10 to 60 ℃

Stainless Steel Floor Scale Load Cell with ±0.02% Accuracy Rated -10 to 60 ℃
Features Gallery Product Description Request A Quote
Features
Specifications
Sensitivity: 2.0±0.05mV/V
Rated Temperature Range: -10~+60 ℃
Output Resistance: 700Ω±5Ω
Maximum Excitation: 15V
Feature: Reliable Performance
Accurracy: 0.02%
Material: Alloy Steel / Stainless Steel
Type: Shear Beam
High Light:

60 ℃ Floor Scale Load Cell

,

Stainless Steel Floor Scale Load Cell

,

±0.02% Accuracy Floor Scale Load Cell

Basic Infomation
Place of Origin: China
Brand Name: Top Sensor
Model Number: SD-03
Payment & Shipping Terms
Product Description

Product Description:

Our Shear Beam Load Cell is a single-point load cell that exhibits a high level of accuracy, making it an ideal choice for weighing systems that require reliable performance. The load cell is designed with a shear beam type, which makes it highly resistant to external forces, ensuring that it can withstand harsh environments. Additionally, the shear beam technology ensures that the load cell has a long life span, reducing the need for frequent replacements, thus saving you time and money.

Our Shear Beam Load Cell is rated to operate within a temperature range of -10~+60 ℃, making it an excellent choice for applications that require a wide temperature range. This feature ensures that the load cell can operate efficiently, even in extreme temperatures, without compromising its performance. With this load cell, you can be sure that your weighing system will function optimally, regardless of the temperature conditions.

Our Shear Beam Load Cell comes in three different accuracy levels, namely 0.02%FS, 0.03%FS, and 0.05%FS. This feature allows you to choose the load cell that best suits your application needs. With our highly accurate load cell, you can be sure of precise weight measurements, eliminating the need for constant calibration. This feature saves you time and resources, making our load cell a cost-effective option for your weighing needs.

In summary, our Shear Beam Load Cell is a reliable and highly accurate load cell that is designed to cater to your industrial weighing needs. With its shear beam technology, wide temperature range, and three different accuracy levels, this load cell is an excellent choice for floor scale load cell, weighing modules, and hopper scales. Get yours today and experience reliable and accurate weight measurements like never before!



Features:

  • Product Name: Shear Beam Load Cell
  • Maximum Excitation: 15V
  • Insulation Resistance: ≥5000MΩ
  • Load Cell Type: Single Shear Beam Load Cell
  • Sensitivity: 2.0±0.05mV/V
  • Accuracy Grade: C3


Technical Parameters:

Accuracy 0.02%FS, 0.03%FS, 0.05%FS
Accuracy Grade C3
Measuring Range 100-10t
Output Resistance 700Ω±5Ω
Sensitivity 2.0±0.05mV/V
Rated Temperature Range -10~+60 ℃
Material Alloy Steel / Stainless Steel
Type Shear Beam
Hysteresis ±0.02%FS, ±0.03%FS, ±0.05%FS
Load Cell Type Single Shear Beam Load Cell


Applications:

The Top Sensor SD-03 Single Shear Beam Load Cell is ideal for use in a wide range of scenarios. It can be used for weighing applications in industrial, commercial, and agricultural settings. This load cell is perfect for use in Floor Scale Load Cell systems, where it can accurately measure the weight of goods being transported or processed. It is also suitable for use in filling and batching systems, where precision and reliability are critical.

The SD-03 load cell has a rated temperature range of -10~+60 ℃, which makes it suitable for use in a variety of environments. It can withstand harsh conditions and still provide accurate readings. This makes it an ideal solution for use in outdoor weighing applications, where it may be exposed to extreme temperatures and weather conditions.

In conclusion, the Top Sensor SD-03 Single Shear Beam Load Cell is a reliable and high-quality weighing solution. Its versatility and precision make it ideal for use in a wide range of applications, including Floor Scale Load Cell systems. Its excellent insulation resistance, sensitivity, and output resistance ensure that it provides accurate and consistent readings, even in harsh environments.



Customization:



Support and Services:

Our Shear Beam Load Cell product comes with comprehensive technical support and services to ensure a seamless user experience. Our team of experts are available to provide assistance with installation, calibration, and troubleshooting of the load cells. We also offer repair and maintenance services to ensure the longevity and reliability of the product. In addition, we provide customized solutions to meet specific application requirements. Contact us for more information on our technical support and services.



FAQ:

Q: What is the brand name of this load cell?

A: The brand name of this load cell is Top Sensor.

Q: What is the model number of this load cell?

A: The model number of this load cell is SD-03.

Q: Where is this load cell manufactured?

A: This load cell is manufactured in China.

Q: What is the capacity range of this load cell?

A: The capacity range of this load cell is 1 ton to 10 tons.

Q: What is the output signal of this load cell?

A: The output signal of this load cell is 2mV/V to 3mV/V.
