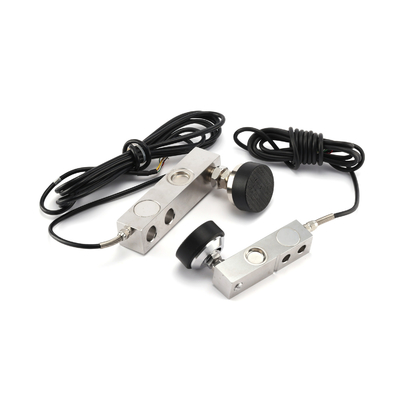

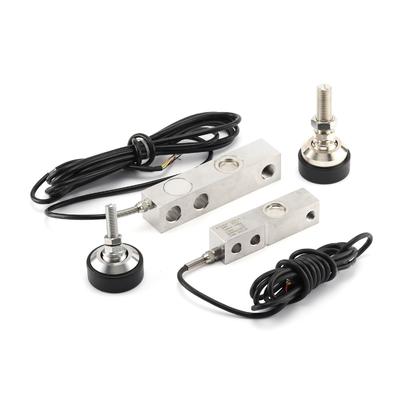

Alloy Steel Stainless Steel Single Shear Beam Load Cell 0.02%FS Accuracy for Industrial Machinery

Alloy Steel Stainless Steel Single Shear Beam Load Cell 0.02%FS Accuracy for Industrial Machinery
Features Gallery Product Description Request A Quote
Features
Specifications
Sensitivity: 2.0±0.05mV/V
Load Cell Type: Single Shear Beam Load Cell
Measring Range: 100kg-10t
Accuracy: 0.02%FS, 0.03%FS, 0.05%FS
Material: Alloy Steel / Stainless Steel
Insulation Resistance: ≥5000MΩ
Hysteresis: ±0.02%FS, ±0.03%FS, ±0.05%FS
Maximum Excitation: 15V
High Light:

0.02%FS Shear Beam Load Cell

,

Industrial Machinery Shear Beam Load Cell

,

Alloy Steel Shear Beam Load Cell

Basic Infomation
Place of Origin: China
Brand Name: Top Sensor
Model Number: SD-03
Payment & Shipping Terms
Product Description

Product Description:

One of the key features of this load cell is its reliable performance. It has an accuracy of 0.02%, which ensures precise and consistent measurements every time. Additionally, the load cell has a hysteresis of ±0.02%FS, ±0.03%FS, ±0.05%FS, which ensures that it maintains its accuracy even after repeated use.

The Shear Beam Load Cell has an output resistance of 700Ω±5Ω, which makes it compatible with most weighing indicators and controllers. It is also easy to install and maintain, making it a cost-effective solution for weighing applications.

Overall, the Shear Beam Load Cell is a reliable and accurate sensor that is suitable for various industrial weighing applications. Its single shear beam design ensures that it can handle heavy loads while maintaining precision and accuracy.



Features:

  • Product Name: Shear Beam Load Cell
  • Accuracy: 0.02%
  • Sensitivity: 2.0±0.05mV/V
  • Measuring Range: 100-10t
  • Accuracy: 0.02%FS, 0.03%FS, 0.05%FS
  • Rated Temperature Range: -10~+60 ℃

This single Shear Beam Load Cell is an essential component for measuring weight in various applications, such as Floor Scale Load Cell. With an accuracy of 0.02%, a sensitivity of 2.0±0.05mV/V, and a measuring range of 100-10t, it provides reliable and precise measurements. The rated temperature range of -10~+60 ℃ ensures that it can be used in a wide range of environments.



Technical Parameters:

Accuracy 0.02%
Load Cell Type Single Shear Beam Load Cell
Hysteresis ±0.02%FS, ±0.03%FS, ±0.05%FS
Rated Temperature Range -10~+60 ℃
Measuring Range 100-10t
Feature Reliable Performance
Output Resistance 700Ω±5Ω
Insulation Resistance ≥5000MΩ
Maximum Excitation 15V
Accuracy 0.02%FS, 0.03%FS, 0.05%FS


Applications:

The measuring range of this shear beam load cell is 100-10t, which makes it an ideal product for applications where heavy loads need to be measured with high accuracy. The hysteresis of this load cell is ±0.02%FS, ±0.03%FS, ±0.05%FS, which ensures that the readings are highly accurate and consistent. The accuracy grade of this load cell is C3, and it has an accuracy of 0.02%, making it a reliable and trustworthy device.

The SD-03 Shear Beam Load Cell has a wide range of applications, including floor scale load cell applications. This load cell can be used in warehouses, factories, and other industrial settings where heavy loads need to be weighed accurately. It is also ideal for use in truck scales and other weighing applications where precision is crucial.

Additionally, this load cell is easy to install and maintain, making it a popular choice for many businesses. It is durable and designed to withstand harsh environments, making it a reliable product that can last for years. Overall, the SD-03 Shear Beam Load Cell from Top Sensor is a high-quality product that is perfect for use in a wide range of industrial applications where accurate weight measurement is essential.



Customization:



Support and Services:

The Shear Beam Load Cell is a high-precision, low-profile sensor designed for accurate weight measurement in industrial applications. It is widely used in hopper and tank weighing systems, truck scales, and other weighing applications. The load cell is made of high-quality stainless steel and has a rugged construction that ensures long-term reliability and durability.

Our technical support team is available to assist you with any questions or concerns you may have about the Shear Beam Load Cell. We offer a range of services, including installation support, calibration services, and repair and maintenance services. Our team is dedicated to ensuring that your load cell is functioning at optimal levels and providing accurate weight measurements.

Our calibration services include a comprehensive calibration report that details the load cell's accuracy and performance. We also offer repair and maintenance services to ensure that your load cell is functioning properly and providing accurate weight measurements over the long term.

In addition to our technical support and services, we offer a range of accessories and components to help you get the most out of your Shear Beam Load Cell. These include mounting kits, cables, and connectors, as well as custom-designed solutions to meet your specific application requirements.



FAQ:

Q: What is the brand name of this Shear Beam Load Cell?

A: The brand name of this product is Top Sensor.

Q: What is the model number of this Shear Beam Load Cell?

A: The model number of this product is SD-03.

Q: Where is this Shear Beam Load Cell manufactured?

A: This product is manufactured in China.

Q: What is the maximum weight capacity of this Shear Beam Load Cell?

A: The maximum weight capacity of this product is 10,000 lbs.

Q: What is the accuracy of this Shear Beam Load Cell?

A: The accuracy of this product is +/- 0.03% of full scale output.
