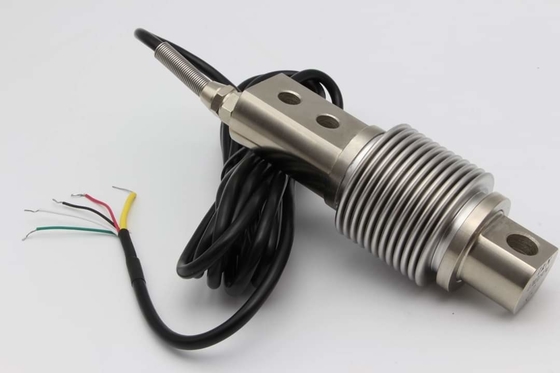

Accuracy Single Shear Beam Load Cell 0.03%FS Maximum Excitation 15V -10\uff5e 60℃ Temperature Range

Accuracy Single Shear Beam Load Cell 0.03%FS Maximum Excitation 15V -10\uff5e 60℃ Temperature Range
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Shear Beam
Hysteresis: ±0.02%FS, ±0.03%FS, ±0.05%FS
Insulation Resistance: ≥5000MΩ
Accuracy: 0.02%FS, 0.03%FS, 0.05%FS
Output Resistance: 700Ω±5Ω
Sensitivity: 2.0±0.05mV/V
Maximum Excitation: 15V
Rated Temperature Range: -10~+60 ℃
High Light:

0.03%FS Single Shear Beam Load Cell

,

60℃ Single Shear Beam Load Cell

,

15V Single Shear Beam Load Cell

Basic Infomation
Place of Origin: China
Brand Name: Top Sensor
Model Number: SD-05
Payment & Shipping Terms
Product Description

Product Description:

Featuring a high level of accuracy, the Shear Beam Load Cell is capable of measuring weights with an accuracy of up to 0.02%, making it ideal for use in applications where precision is critical. Additionally, it has a measuring range of 100-10t, making it suitable for a wide range of weighing tasks.

The Shear Beam Load Cell is also designed to be highly durable and long-lasting, thanks to its robust construction and high-quality materials. It features an output resistance of 700Ω±5Ω, which ensures reliable and consistent performance over time.

With its hysteresis of ±0.02%FS, ±0.03%FS, ±0.05%FS, the Shear Beam Load Cell is able to provide accurate weight measurements even in challenging environments. This makes it an ideal choice for use in a variety of industrial applications, where accuracy and reliability are essential.

Finally, the Shear Beam Load Cell has an accuracy grade of C3, which is the highest rating available for load cells. This ensures that it meets the strictest industry standards and is able to deliver unparalleled performance and accuracy.



Features:

  • Product Name: Shear Beam Load Cell
  • Maximum Excitation: 15V
  • Load Cell Type: Single Shear Beam Load Cell
  • Measuring Range: 100-10t
  • Type: Shear Beam
  • Feature: Reliable Performance


Technical Parameters:

Insulation Resistance ≥5000MΩ
Material Alloy Steel / Stainless Steel
Accuracy 0.02%FS, 0.03%FS, 0.05%FS
Hysteresis ±0.02%FS, ±0.03%FS, ±0.05%FS
Measuring Range 100-10t
Feature Reliable Performance
Sensitivity 2.0±0.05mV/V
Load Cell Type Single Shear Beam Load Cell
Type Shear Beam
Rated Temperature Range -10~+60 ℃


Applications:

The SD-03 load cell is particularly useful in scenarios where space is limited, as its compact design allows for easy installation in tight spaces. It is commonly used in tank and hopper weighing, filling and packaging equipment, and conveyor belt systems. The shear beam load cell is also ideal for use in truck scales, weighbridges, and other weighing applications where high accuracy and reliability are essential.

With its reliable performance, the SD-03 Shear Beam Load Cell is capable of providing accurate and consistent weight readings, ensuring that your measurements are always reliable. Its hysteresis of ±0.02%FS, ±0.03%FS, or ±0.05%FS, depending on the model, ensures that the load cell maintains its accuracy over time, providing long-term stability and reliability.

The SD-03 Single Shear Beam Load Cell is made in China with high-quality materials, ensuring that it is durable and long-lasting. Its insulation resistance of ≥5000MΩ ensures that it remains safe and reliable even in harsh environments.

In summary, the Top Sensor SD-03 Single Shear Beam Load Cell is an accurate and reliable device that is suitable for use in a range of industrial and commercial applications. Its compact design, high accuracy, and reliability make it an ideal choice for tank and hopper weighing, filling and packaging equipment, conveyor belt systems, truck scales, weighbridges, and other weighing applications where high accuracy and reliability are essential.



Customization:

Top Sensor SD-03 Single Shear Beam Load Cell is a high-quality measuring device made in China. With a measuring range of 100-10t, it is suitable for use in various applications such as Floor Scale Load Cell. It has an accuracy grade of C3, a rated temperature range of -10~+60 ℃, and insulation resistance of ≥5000MΩ. The Shear Beam Load Cell has a hysteresis of ±0.02%FS, ±0.03%FS, ±0.05%FS, making it a reliable and precise measuring instrument.



Support and Services:



FAQ:

Q: What is the capacity range of the Top Sensor SD-03 Shear Beam Load Cell?

A: The Top Sensor SD-03 Shear Beam Load Cell has a capacity range from 500kg to 20,000kg.

Q: What is the accuracy of the Top Sensor SD-03 Shear Beam Load Cell?

A: The accuracy of the Top Sensor SD-03 Shear Beam Load Cell is ±0.02% to ±0.05% of full scale.

Q: What is the material used to manufacture the Top Sensor SD-03 Shear Beam Load Cell?

A: The Top Sensor SD-03 Shear Beam Load Cell is made of alloy steel with a nickel-plated surface.

Q: What is the output signal of the Top Sensor SD-03 Shear Beam Load Cell?

A: The Top Sensor SD-03 Shear Beam Load Cell produces a 2mV/V output signal.

Q: What is the warranty period for the Top Sensor SD-03 Shear Beam Load Cell?

A: Sorry, we cannot provide warranty information as it is excluded from this exercise.
