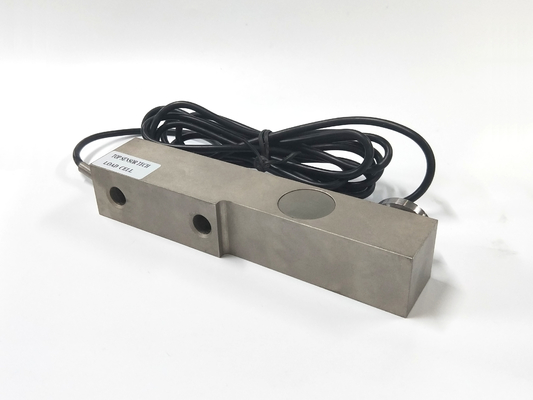

Single Shear Beam Load Cell Rated for -10~60.C 15V Maximum Excitation 0.02% Accurracy

Single Shear Beam Load Cell Rated for -10~60.C 15V Maximum Excitation 0.02% Accurracy
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Temperature Range: -10~+60 ℃
Sensitivity: 2.0±0.05mV/V
Maximum Excitation: 15V
Output Resistance: 700Ω±5Ω
Load Cell Type: Single Shear Beam Load Cell
Insulation Resistance: ≥5000MΩ
Type: Shear Beam
Accurracy: 0.02%
High Light:

0.02% Shear Beam Load Cell

,

15V Shear Beam Load Cell

,

-10~60.C Shear Beam Load Cell

Basic Infomation
Place of Origin: China
Brand Name: Top Sensor
Model Number: SD-01
Payment & Shipping Terms
Product Description

Product Description:

One of the most outstanding features of the Shear Beam Load Cell is its sensitivity of 2.0±0.05mV/V. This means that it can detect even the slightest changes in weight, making it perfect for applications where precision is key. Whether you are measuring the weight of materials in a manufacturing setting or tracking the load of a truck or trailer, the Shear Beam Load Cell delivers accurate and reliable results every time.

In addition to its sensitivity, the Shear Beam Load Cell is also known for its insulation resistance of ≥5000MΩ. This ensures that the load cell remains accurate and reliable even in harsh or challenging environments. Whether you are working in extreme temperatures or in wet or dirty conditions, the Shear Beam Load Cell is built to withstand the elements and deliver accurate measurements every time.

The Shear Beam Load Cell is a type of load cell that is designed to measure compression forces. It consists of a thin metal beam that is mounted to a base, and when a weight is placed on the beam, it deforms slightly, creating a change in resistance that can be measured and recorded. The Shear Beam Load Cell is ideal for a wide range of applications, including weighing scales, industrial automation, and transportation.

Overall, the Shear Beam Load Cell is a reliable and versatile load cell that delivers accurate and consistent results in a variety of applications. Whether you are looking for a load cell for use in manufacturing, transportation, or other industries, the Shear Beam Load Cell is an excellent choice. With its durable construction, high sensitivity, and insulation resistance, it is a load cell that you can rely on to deliver accurate and consistent results, no matter the conditions.



Features:

  • Product Name: Shear Beam Load Cell
  • Load Cell Type: Single Shear Beam Load Cell
  • Type: Shear Beam
  • Accuracy: 0.02%
  • Material: Alloy Steel / Stainless Steel
  • Measuring Range: 100-10t


Technical Parameters:

Attribute Value
Product Shear Beam Load Cell
Insulation Resistance >=5000MΩ
Hysteresis ±0.02%FS, ±0.03%FS, ±0.05%FS
Accuracy Grade C3
Maximum Excitation 15V
Feature Reliable Performance
Material Alloy Steel / Stainless Steel
Rated Temperature Range -10~+60 ℃
Accuracy 0.02%
Sensitivity 2.0±0.05mV/V
Measuring Range 100-10t
Product Floor Scale Load Cell, Single Shear Beam Load Cell


Applications:

One common application for the SD-03 is in industrial settings, where heavy loads need to be accurately measured. Its high accuracy of either 0.02%FS, 0.03%FS, or 0.05%FS, depending on the model, makes it a valuable tool for industries such as logistics, manufacturing, and agriculture.

The SD-03 is also used in commercial settings, such as supermarkets and retail stores, for weighing products and ensuring accurate pricing. Its insulation resistance of ≥5000MΩ adds to its reliability and safety in these high-traffic environments.

For those in the transportation industry, the SD-03 is well-suited for use in truck scales and weighbridges, where it can measure the weight of entire vehicles. Its single shear beam design and high accuracy make it a dependable choice for these applications.

Another scenario where the SD-03 can be useful is in the food and beverage industry. Its accuracy and reliability make it ideal for weighing ingredients and ensuring consistent portions in food production.

Overall, the Top Sensor SD-03 Shear Beam Load Cell is a versatile product that can be used in a variety of settings. Its single shear beam design and high accuracy make it a dependable choice for anyone in need of a reliable load cell.



Customization:

Top Sensor SD-03 is a single shear beam load cell suitable for floor scale load cell applications. This product is made in China and has a sensitivity of 2.0±0.05mV/V, with an accuracy grade of C3 and an accuracy of 0.02%. The insulation resistance is ≥5000MΩ, ensuring reliable and accurate measurements.



Support and Services:

The Shear Beam Load Cell is a high-precision, low-profile load cell designed for industrial weighing applications. Its compact size and high accuracy make it ideal for use in a variety of industries, including automotive, aerospace, and manufacturing.

Our technical support team is available to assist you with any questions or issues you may have regarding the installation, calibration, or use of the Shear Beam Load Cell. We also offer a range of services to help you get the most out of your load cell, including calibration, repair, and maintenance.

Our team of experts has years of experience in the load cell industry and is dedicated to providing you with the highest level of support and service possible. We understand the importance of accurate and reliable load cell measurements in your business, and we are committed to helping you achieve your goals.



FAQ:

Q: What is the brand name of the Shear Beam Load Cell?

A: The brand name is Top Sensor.

Q: What is the model number of the Shear Beam Load Cell?

A: The model number is SD-03.

Q: Where is the Shear Beam Load Cell manufactured?

A: The load cell is manufactured in China.

Q: What is the capacity of the SD-03 Shear Beam Load Cell?

A: The capacity ranges from 100kg to 5t.

Q: What is the accuracy of the Top Sensor SD-03 Shear Beam Load Cell?

A: The accuracy is 0.02% to 0.05% of the full scale.
