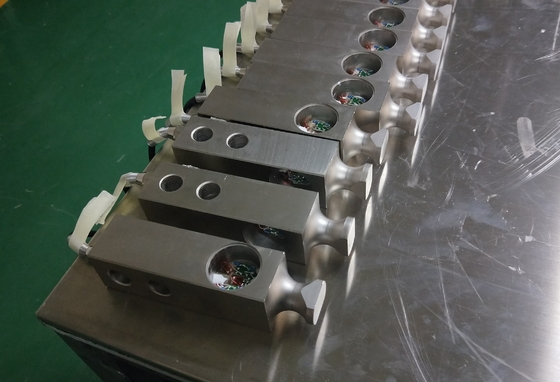

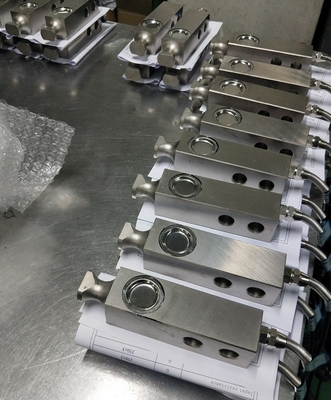

Accurate Weight Measurement Precision Shear Beam Load Cell Type

Accurate Weight Measurement Precision Shear Beam Load Cell Type
Features Gallery Product Description Request A Quote
Features
Specifications
Accurracy: 0.02%
Feature: Reliable Performance
Output Resistance: 700Ω±5Ω
Hysteresis: ±0.02%FS, ±0.03%FS, ±0.05%FS
Load Cell Type: Single Shear Beam Load Cell
Type: Shear Beam
Rated Temperature Range: -10~+60 ℃
Sensitivity: 2.0±0.05mV/V
High Light:

Precision Shear Beam Load Cell

,

Single Shear Beam Load Cell

Basic Infomation
Place of Origin: China
Brand Name: Top Sensor
Model Number: SD-07
Payment & Shipping Terms
Product Description

Product Description:

The Shear Beam Load Cell is known for its high accuracy, making it an ideal choice for industries that require precise measurements. It has an accuracy of 0.02%FS, 0.03%FS, or 0.05%FS, depending on the model chosen. The accuracy grade of this load cell is C3, which is a testament to its high precision.

Manufactured using high-quality materials, the Shear Beam Load Cell is built to last. It is designed to withstand harsh environments and can handle heavy loads with ease. Its robust construction makes it suitable for use in a wide range of industrial applications, including floor scale load cell applications.

If you are looking for a reliable and accurate load cell for your floor scale, the Shear Beam Load Cell is an excellent choice. It is designed to provide precise measurements and can handle heavy loads with ease. Its robust construction ensures that it will last for years, making it a cost-effective solution for your floor scale load cell needs.



Features:

  • Product Name: Shear Beam Load Cell
  • Sensitivity: 2.0±0.05mV/V
  • Accuracy Grade: C3
  • Hysteresis: ±0.02%FS, ±0.03%FS, ±0.05%FS
  • Accuracy: 0.02%FS, 0.03%FS, 0.05%FS
  • Load Cell Type: Single Shear Beam Load Cell
  • Keywords: Floor Scale Load Cell, Single Shear Beam Load Cell, Single Shear Beam Load Cell


Technical Parameters:

Sensitivity 2.0±0.05mV/V
Maximum Excitation 15V
Load Cell Type Single Shear Beam Load Cell
Output Resistance 700Ω±5Ω
Rated Temperature Range -10~+60 ℃
Hysteresis ±0.02%FS, ±0.03%FS, ±0.05%FS
Material Alloy Steel / Stainless Steel
Accuracy 0.02%FS, 0.03%FS, 0.05%FS
Accuracy Grade C3
Feature Reliable Performance


Applications:

One of the many applications of Top Sensor SD-03 Shear Beam Load Cell is in floor scale load cells. These load cells are used in weighing applications that require high accuracy and reliability. Floor scale load cells are designed to withstand the heavy loads of equipment and materials, making them ideal for industrial applications, such as weighing pallets, drums, and large containers.

Another application of Top Sensor SD-03 Shear Beam Load Cell is in truck scales. Truck scales are used to weigh vehicles and their contents, and the shear beam load cell is an essential component of this system. These load cells are designed to withstand the harsh conditions of weighing vehicles and their contents, including vibration and shock.

Top Sensor SD-03 Shear Beam Load Cell is also used in the agricultural industry for weighing crops, livestock, and machinery. These load cells are ideal for use in environments where there is a high level of moisture, dust, and other contaminants.

Other applications of Top Sensor SD-03 Shear Beam Load Cell include industrial weighing systems, such as conveyor belt scales, hopper scales, and tank weighing systems. These load cells are also used in force measurement applications, such as testing machines and material testing equipment.

In conclusion, Top Sensor SD-03 Shear Beam Load Cell is a high-quality and reliable product that is suitable for various applications. With its accuracy and hysteresis, it is ideal for use in floor scale load cells, truck scales, agricultural weighing, and industrial weighing systems.



Customization:

At Top Sensor, we understand that each application is unique, which is why we offer product customization services. Our team of experts can work with you to modify the load cell to meet your specific requirements. Whether you need a different measuring range or a custom design, we can help. Contact us today to learn more about our floor scale load cell customization services.



Support and Services:



FAQ:

Q: What is the brand name of this load cell?

A: The brand name of this load cell is Top Sensor.

Q: What is the model number of this load cell?

A: The model number of this load cell is SD-03.

Q: Where is this load cell manufactured?

A: This load cell is manufactured in China.

Q: What is the capacity of this load cell?

A: The capacity of this load cell ranges from 1 ton to 20 tons.

Q: What is the accuracy of this load cell?

A: The accuracy of this load cell is 0.02% to 0.05% of full scale.
