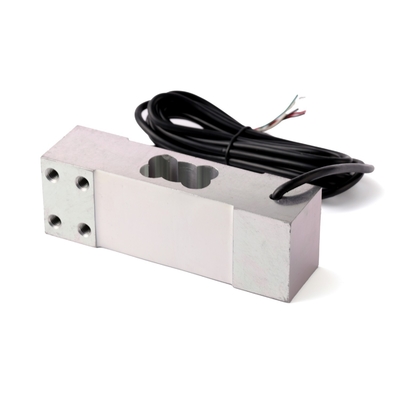

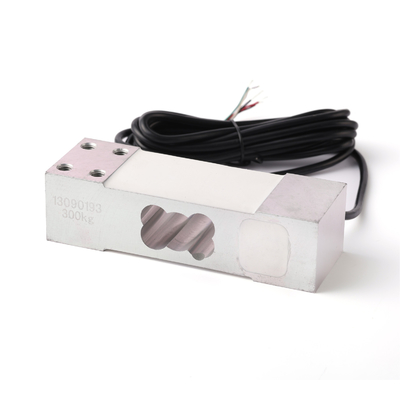

Precision Alloy Aluminum Load Cell SD-03 10V DC Power Supply 0.02%FS Accuracy For Weight Measurement

Precision Alloy Aluminum Load Cell SD-03 10V DC Power Supply 0.02%FS Accuracy For Weight Measurement
Features Gallery Product Description Request A Quote
Features
Specifications
Power Supply: 10V DC
Usage: Weight Measurement Transducer
Cable Specification: φ5.5
Cable: φ5, 2m
Customized: Acceptable
Accuracy: 0.02%FS
Model: SPA-42
Operating Temperature: -20°C To +60°C
High Light:

0.02%FS Accuracy Aluminum Load Cell

,

Weight Measurement Aluminum Load Cell

,

10V DC Aluminum Load Cell

Basic Infomation
Place of Origin: China
Brand Name: Top Sensor
Model Number: SPA-42
Payment & Shipping Terms
Product Description

Product Description:

The Parallel Beam Load Cell Model SPA-42 has a sensitivity of 2.0±0.2 MV/V, which provides precise measurements. It is designed to measure the weight of objects accurately, making it an ideal choice for various weighing applications in industries such as food, pharmaceutical, and automotive. The load cell is easy to install and use, which makes it a popular choice among engineers and technicians.

The load cell's compact design and unique construction make it ideal for use in small or limited spaces. It is a Single Point Type Load Cell, which means it can be used for both tension and compression applications. The load cell's Parallel Beam Load Cell design ensures accurate and stable output, making it suitable for use in dynamic applications.

The SD-03 load cell is highly reliable and has a long lifespan, making it a cost-effective solution for industrial weighing applications. Its high accuracy, stability, and durability make it an ideal choice for use in a wide range of industries. It is an excellent solution for applications such as platform scales, conveyor systems, and other industrial weighing systems.



Features:

  • Product Name: Single Point Load Cell
  • Power Supply: 10V DC
  • Cable: φ5, 2m
  • Input Resistance: 400±10Ω
  • Protection Class: IP68
  • Operating Temperature: -20°C To +60°C
  • Application: Parallel Beam Load Cell, Vending Machine Load Cell, Parallel Beam Load Cell


Technical Parameters:

Power Supply 10V DC
Compensated Temperature -10°C to +40°C
Accuracy 0.02%FS
Protection Class IP68
Customized Acceptable
Cable Specification φ5.5
Temp -20-60°C
Cable Length 2-5 Meters
Material Aluminum Alloy
Cable φ5, 2m


Applications:

  • Vending Machines: The SD-03 load cell is a great choice for vending machines. It can accurately measure the weight of products and ensure that the correct amount is dispensed. Its small size and high sensitivity make it a perfect fit for vending machines of any size.
  • Industrial Weighing: The SD-03 load cell is also suitable for industrial weighing applications. It can be used to measure the weight of raw materials, finished products, and other materials in factories and warehouses. Its high accuracy and sensitivity make it a reliable option for any industrial weighing application.
  • Medical Equipment: The SD-03 load cell is also used in medical equipment. It can be used to measure the weight of patients, making it an essential component of medical beds and chairs. Its high sensitivity and accuracy ensure that precise measurements are taken.
  • Food Processing: The SD-03 load cell is also used in food processing applications. It can be used to measure the weight of ingredients and finished products, ensuring that recipes are followed accurately. Its high accuracy and sensitivity make it a perfect fit for the food processing industry.

The SD-03 load cell comes with a cable length of 2-5 meters, making it easy to install in any application. It can also be customized to fit specific requirements. With a sensitivity of 2.0±0.2 MV/V and an accuracy of 0.02%FS, the SD-03 load cell provides reliable and precise measurements. The cable is φ5, 2m, ensuring that it can withstand heavy use and harsh conditions. Made in China, the SD-03 load cell is a durable and reliable choice for any weighing application.



Customization:



Support and Services:

The Single Point Load Cell is a high-precision sensor designed to accurately measure weight and force in industrial and commercial applications. Our technical support team is available to answer any questions you may have regarding the installation, calibration, or maintenance of your load cell. Our services include:

  • On-site installation and calibration support
  • Remote technical assistance via phone or email
  • Repair and maintenance services
  • Customization and modification options to meet your specific needs

We are committed to providing you with the highest level of customer service and technical expertise to ensure the optimal performance of your Single Point Load Cell. Contact us today to learn more about our products and services.



Packing and Shipping:

Product Packaging:

This Single Point Load Cell will be carefully packed in a sturdy cardboard box with bubble wrap to ensure that it arrives in perfect condition. The load cell will also be placed in a plastic bag to protect it from any moisture during shipping.

Shipping:

We use reliable shipping carriers to ensure that your order is delivered on time. Shipping times may vary depending on your location, but we will provide you with a tracking number so you can track your package during transit. Please note that any customs fees or import taxes are the responsibility of the customer.
