Aluminum Alloy Single Point Load Cell

100pcs
MOQ
USD3.5~4.0 per piece
Price
Aluminum Alloy Single Point Load Cell
Features Gallery Product Description Request A Quote
Features
Specifications
Cable Specification: φ5.5
Temp: -20-60°C
Power Supply: 10V DC
Material: Aluminum Alloy
Compensated Temperature: -10°C To +40°C
Customized: Acceptable
Operating Temperature: -20°C To +60°C
Cable Length: 2-5 Meters
Highlight:

Aluminum Alloy Single Point Load Cell

,

10V DC Single Point Load Cell

,

5M Cable Single Point Load Cell

Basic Infomation
Place of Origin: China
Brand Name: Top Sensor
Model Number: SPA-02A
Payment & Shipping Terms
Delivery Time: 7 days
Payment Terms: T/T, Western Union
Product Description

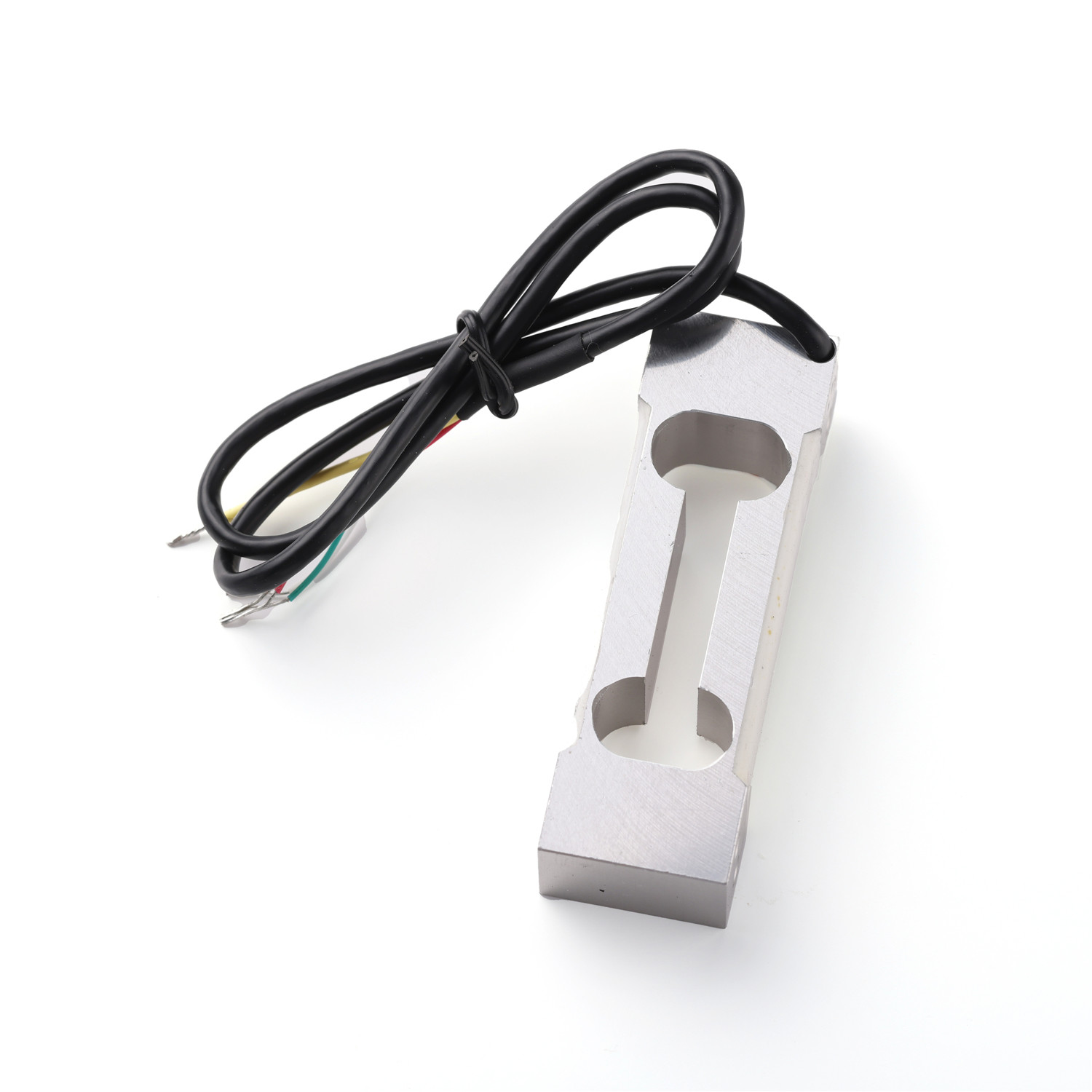

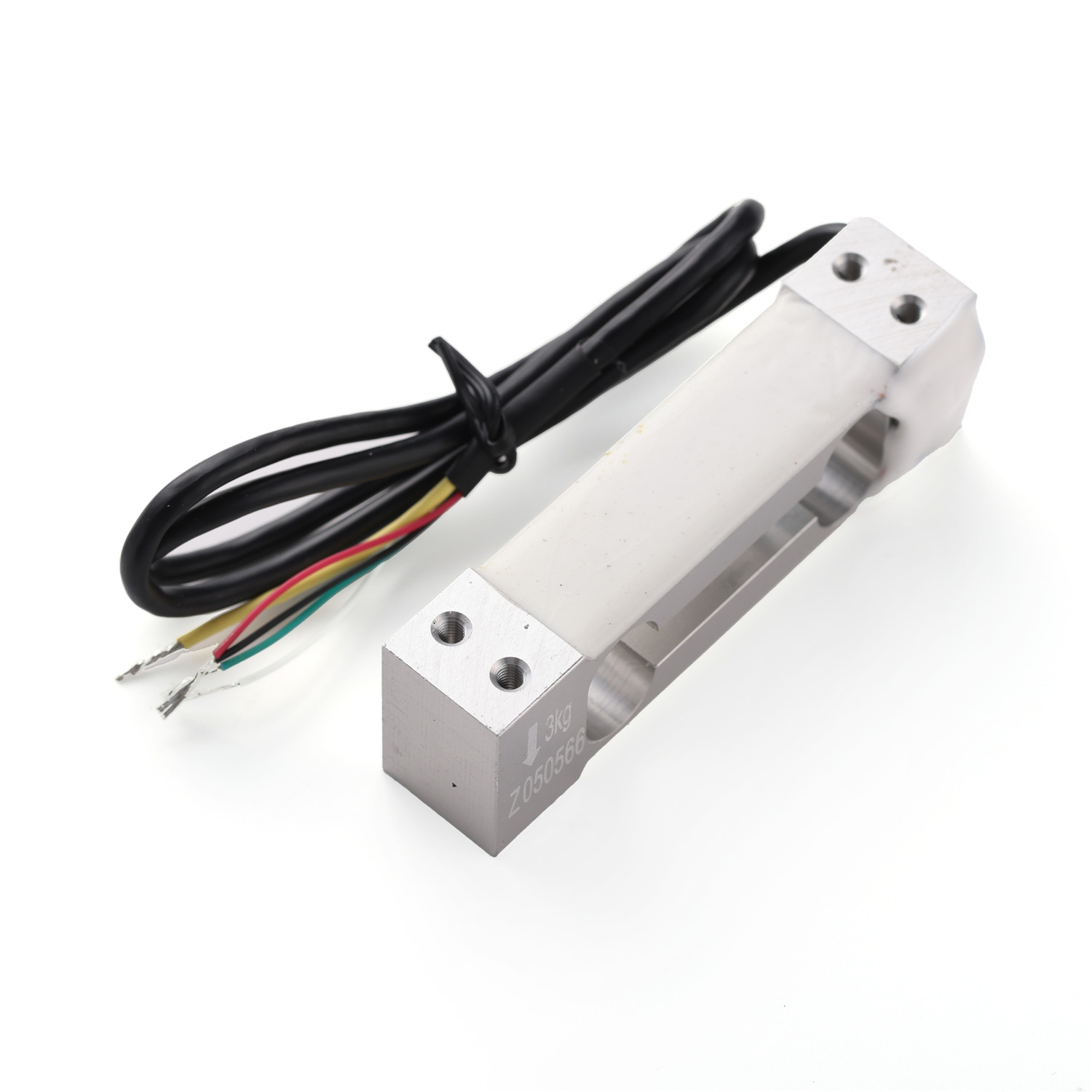

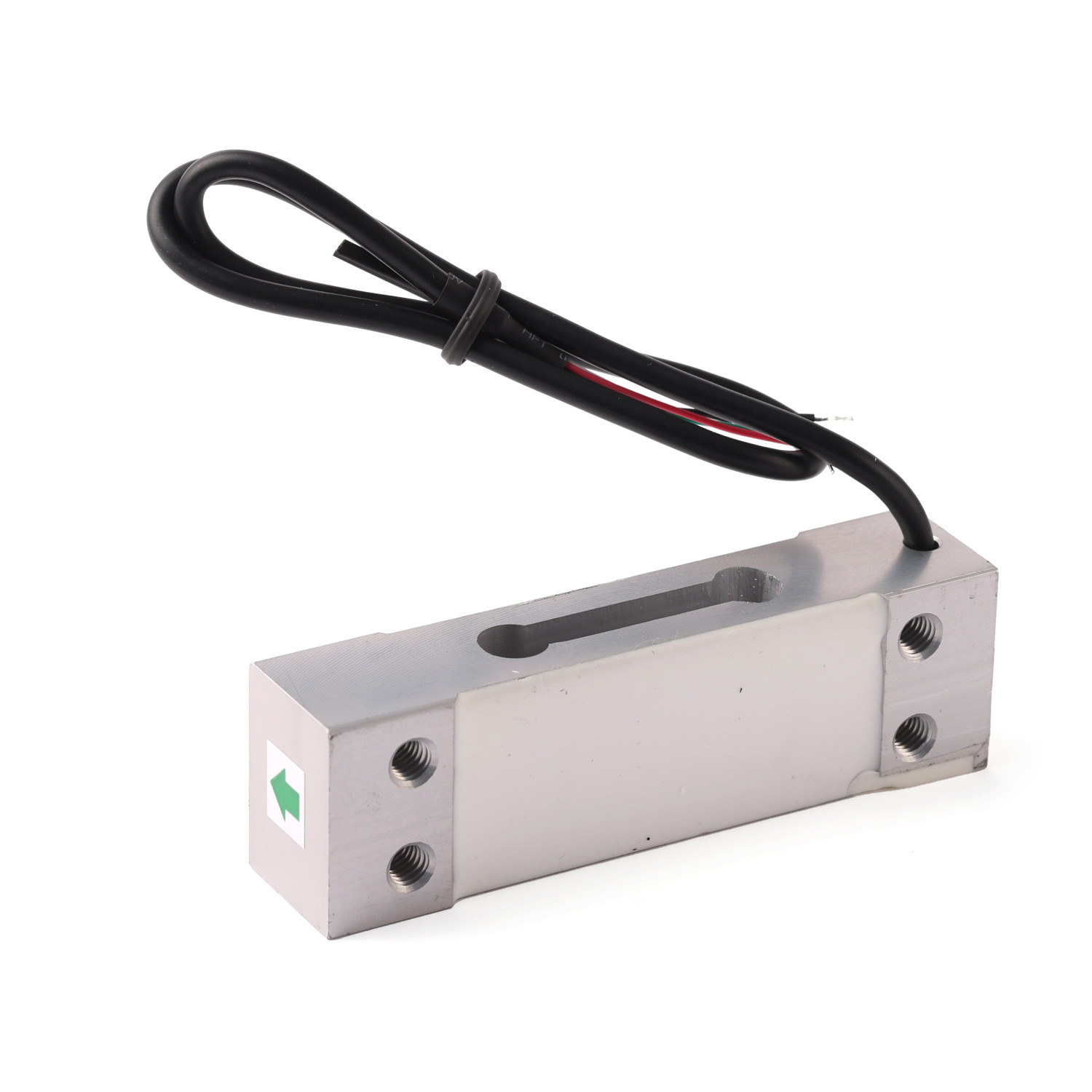

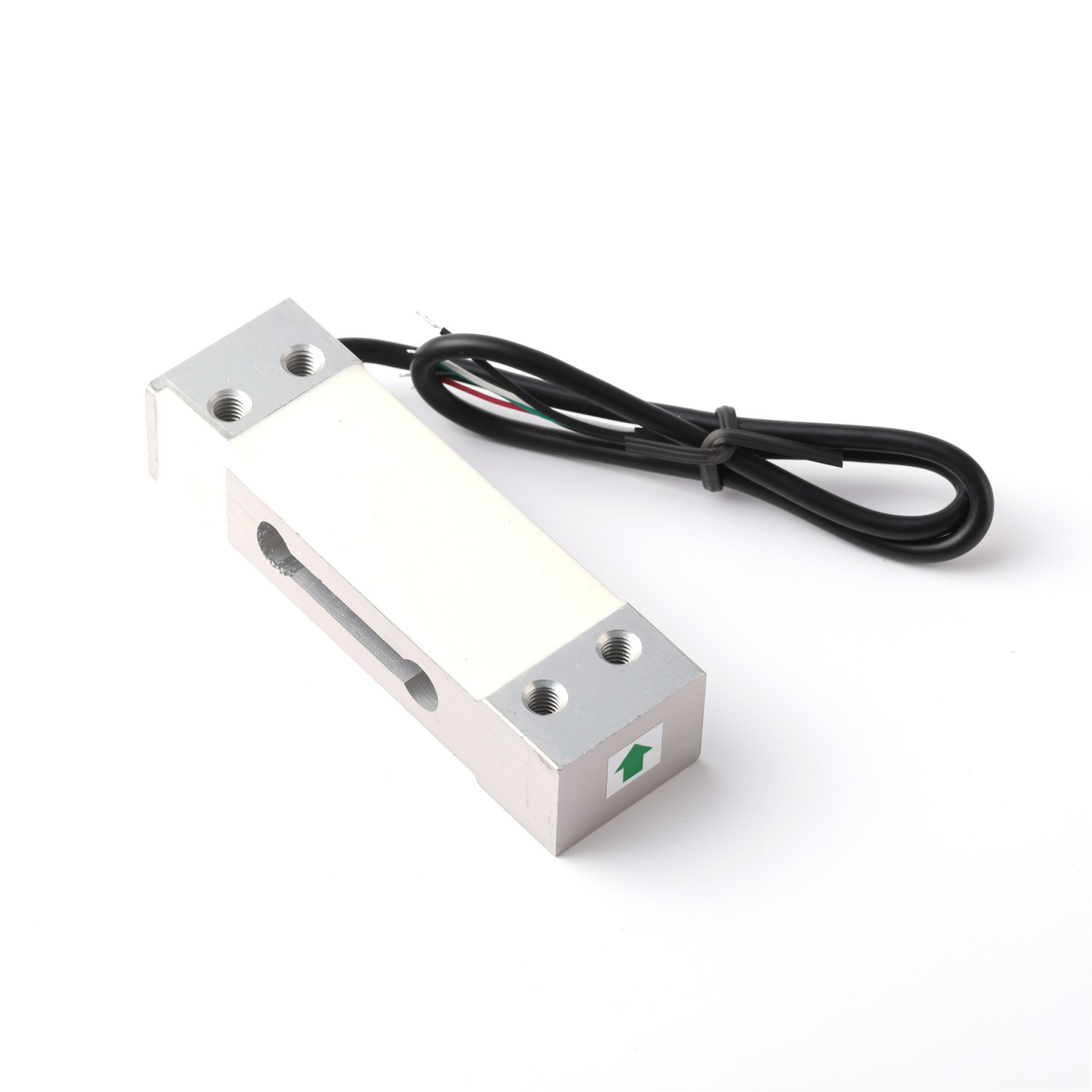

Aluminum Alloy Single Point Load Cell

Model: SPA-02

Features:

  • Product Name: Single Point Load Cell
  • Temp: -20-60°C
  • Compensated Temperature: -10°C To +40°C
  • Operating Temperature: -20°C To +60°C
  • Cable Length: 2-5 Meters
  • Customized: Acceptable
  • Application: Vending Machine , Alloy Aluminum Load Cell


Technical Parameters:

Product Attribute Value
Type Single Point Type Load Cell
Compensated Temperature -10°C To +40°C
Operating Temperature -20°C To +60°C
Usage Weight Measurement Transducer
Input Resistance 400±10Ω
Accuracy 0.02%FS
Material Aluminum Alloy
Sensitivity 2.0±0.2 MV/V
Temp -20-60°C
Customized Acceptable
Cable Length 2-5 Meters
Type Parallel Beam Load Cell


Customization:



Support and Services:

The Single Point Load Cell product is designed to provide accurate and reliable weight measurements for a variety of applications. Our technical support team is available to assist with any questions or issues you may have with the product, including installation, calibration, and troubleshooting. We also offer a range of services to ensure the ongoing performance of your Single Point Load Cell, including maintenance, repair, and replacement of any faulty components. Our team is committed to providing exceptional support and services to help you get the most out of your Single Point Load Cell.



Packing and Shipping:

Product Packaging:

  • Single Point Load Cell
  • Protective foam padding
  • User manual

Shipping:

  • Ships within 2 business days
  • Standard shipping rates apply
  • Tracking number provided
