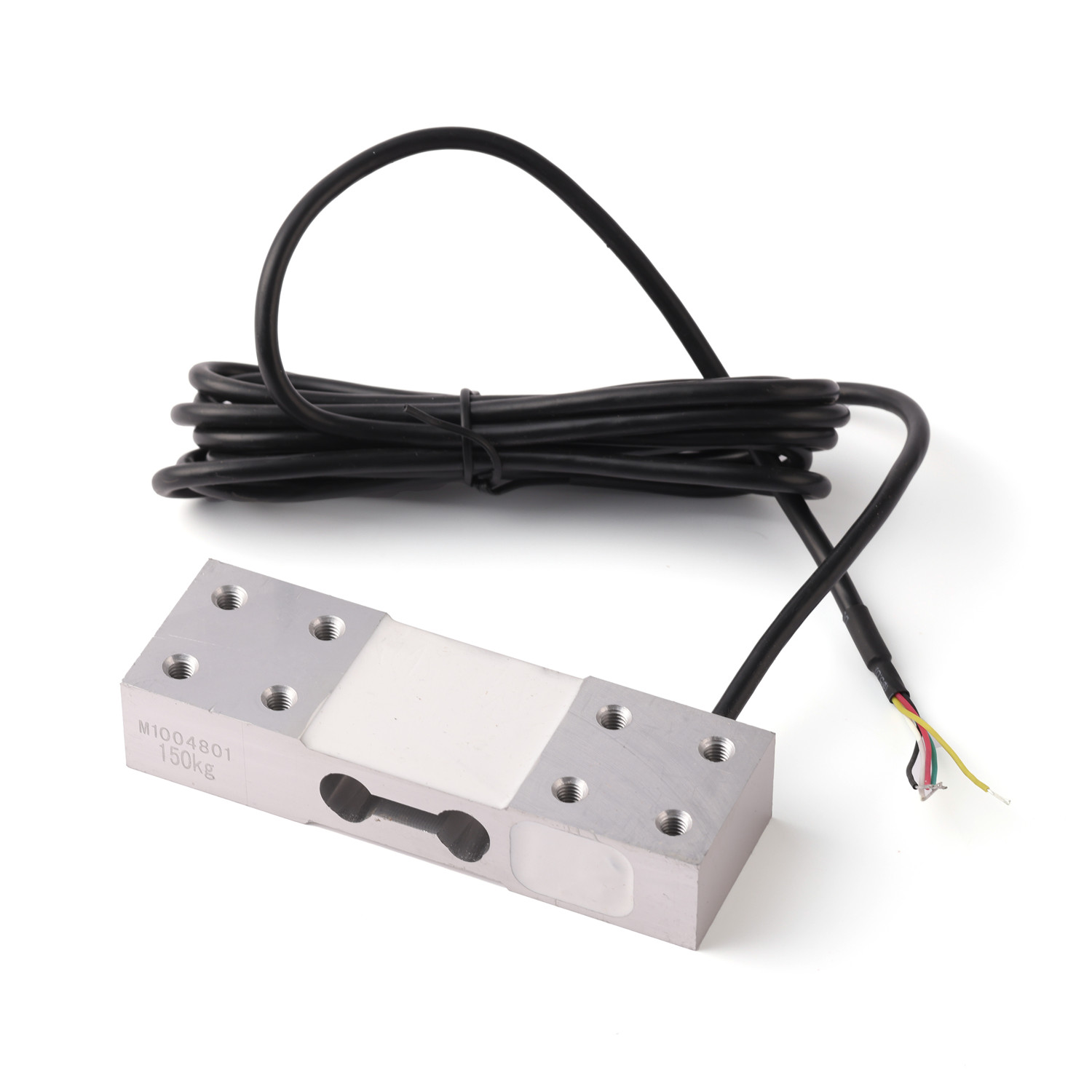

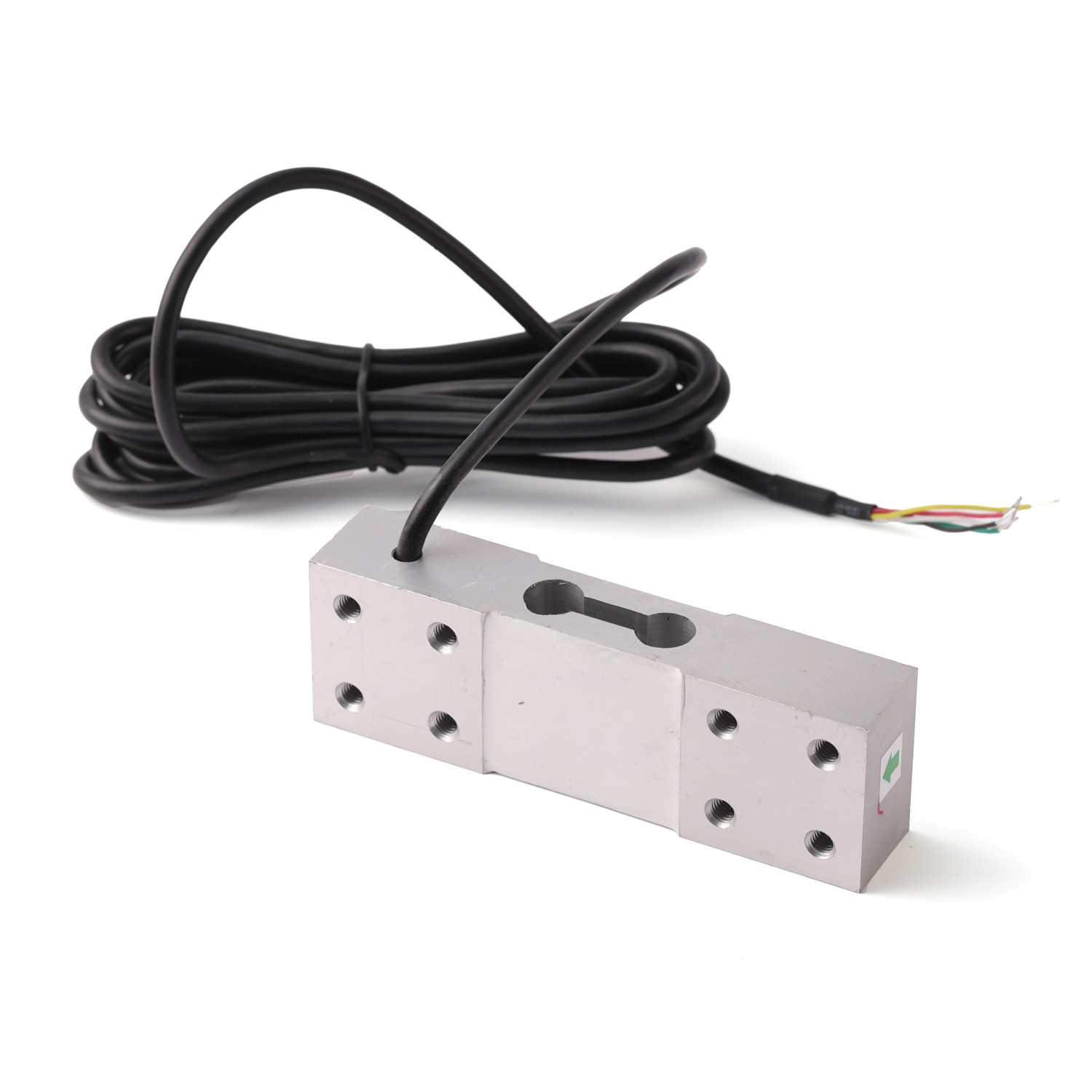

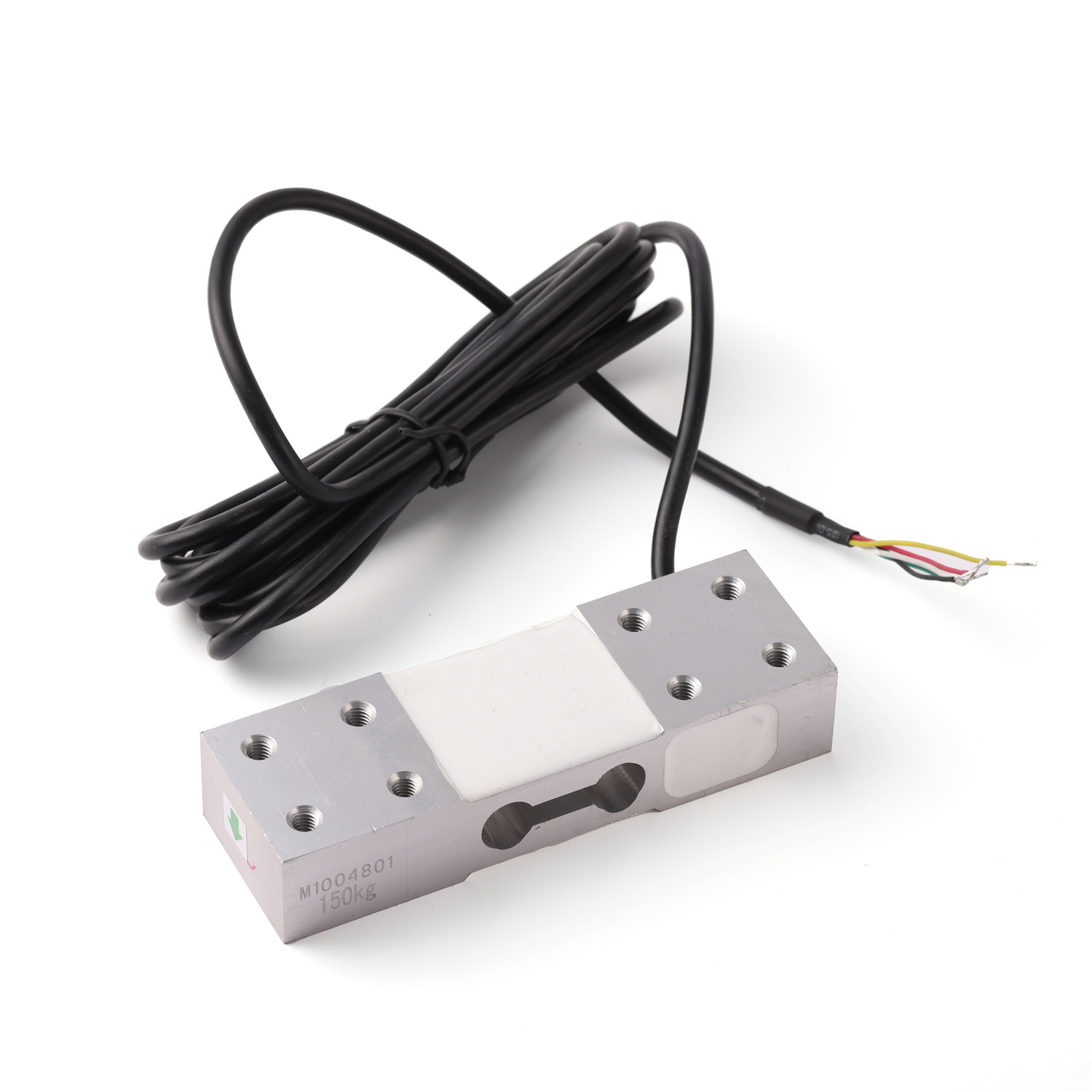

Customizable Single Point Load Cell For Precision Weight Measurement

Customizable Single Point Load Cell  For Precision Weight Measurement
Features Gallery Product Description Request A Quote
Features
Specifications
Customized: Acceptable
Input Resistance: 400±10Ω
Usage: Weight Measurement Transducer
Compensated Temperature: -10°C To +40°C
Power Supply: 10V DC
Model: SD-03
Cable Length: 2-5 Meters
Cable Specification: φ5.5
High Light:

Customizable Single Point Load Cell

,

Precision Single Point Load Cell

Basic Infomation
Place of Origin: China
Brand Name: Top Sensor
Model Number: SPA-19
Payment & Shipping Terms
Product Description

Product Description:

Constructed from high-quality alloy aluminum, our load cell is designed to withstand the rigors of daily use while maintaining its accuracy. Its single point design provides precise weight measurement, making it ideal for use in vending machines and other applications where accuracy is essential.

Our load cell comes equipped with a φ5 cable that is 2 meters in length, making it easy to connect to your system. If you need a longer cable, we also offer cables that are 2-5 meters in length with a φ5.5 specification. This ensures that you have the flexibility you need to get the job done.

With a power supply of 10V DC, our load cell is able to provide reliable weight measurement data quickly and accurately. Whether you are monitoring inventory levels in a vending machine or measuring the weight of a product on a production line, our Single Point Type Load Cell is the perfect solution.



Features:

  • Product Name: Single Point Load Cell
  • Type: Single Point Type Load Cell
  • Accuracy: 0.02%FS
  • Input Resistance: 400±10Ω
  • Compensated Temperature: -10°C To +40°C
  • Cable: φ5, 2m
  • Customized: Acceptable


Technical Parameters:

Model SPA-19
Usage Weight Measurement Transducer
Temp -20-60°C
Customized Acceptable
Material Alloy Aluminum
Power Supply 10V DC
Cable Length 2-5 Meters
Operating Temperature -20°C To +60°C
Accuracy 0.02%FS
Input Resistance 400±10Ω
Type Single Point Type Load Cell, Alloy Aluminum Load Cell, Vending Machine Load Cell


Applications:

Thanks to its high level of accuracy, the SPA-19 Single Point Load Cell is suitable for use in a variety of product application occasions. For example, it could be used in medical equipment where accurate weight measurements are required for patient monitoring and treatment. It could also be used in industrial settings where precise weight measurements are needed for quality control purposes.

As an Alloy Aluminum Load Cell, It is both lightweight and durable, making it an excellent choice for use in portable equipment or in harsh environments. Its compensated temperature range of -10°C to +40°C means that it can provide accurate measurements even in temperature-sensitive scenarios.

The SD-03 Single Point Load Cell comes with a cable specification of φ5.5, making it easy to install and connect to other equipment. Additionally, Top Sensor offers customization options for this product, so it can be tailored to meet specific customer needs and requirements.

Overall, the Top Sensor Single Point Load Cell is a reliable and accurate weight measurement transducer that can be used in a variety of scenarios and occasions. Its Alloy Aluminum Load Cell design and high level of accuracy make it an excellent choice for applications where precision is essential.



Customization:



Support and Services:

The Single Point Load Cell product is designed to provide accurate and reliable weight measurements in various industrial applications. Our technical support and services team is dedicated to ensuring that our customers receive the highest level of assistance with any issues that may arise during the installation, operation, or maintenance of the product.

Our services include:

  • Technical support via phone or email
  • On-site installation and calibration assistance
  • Repair and maintenance services
  • Training and education on product usage and troubleshooting

Our team of experienced professionals is available to help you with any questions or concerns you may have about the Single Point Load Cell product. Please do not hesitate to contact us for assistance.



Packing and Shipping:

Product Packaging:

The Single Point Load Cell product will be carefully packaged in a sturdy cardboard box with appropriate padding to prevent any damage during shipping. The load cell will be placed in a plastic bag and sealed to protect it from moisture and dust. The box will also include the necessary mounting hardware and a user manual.

Shipping:

The Single Point Load Cell product will be shipped via a reputable courier service. The shipping method and estimated delivery date will be communicated to the customer upon purchase. The customer will also receive a tracking number to track their shipment online.
