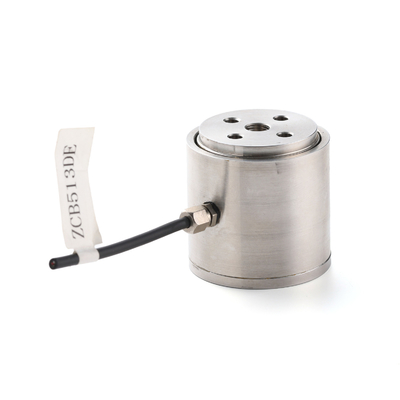

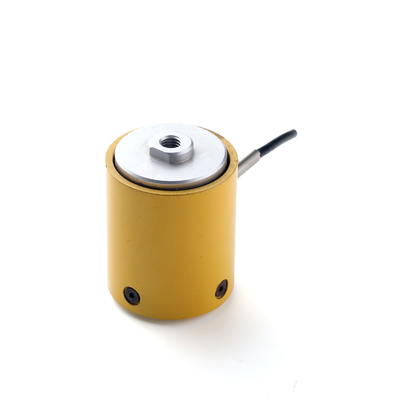

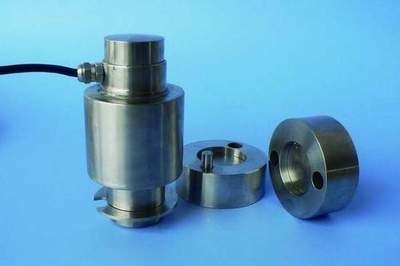

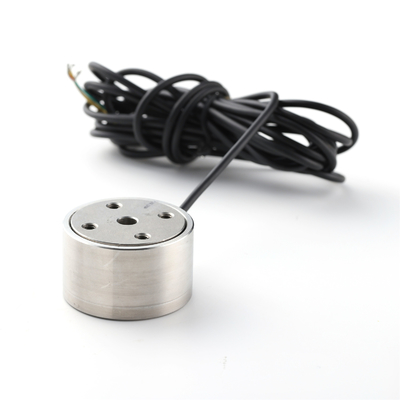

Accuracy Alloy Steel Column Type Load Cell IP67 5V Measuring Range 1-50t

10
MOQ
Accuracy Alloy Steel Column Type Load Cell IP67 5V Measuring Range 1-50t
Features Gallery Product Description Request A Quote
Features
Specifications
Materia: Alloy Steel
Non-Linearity: ≤±0.02% F.S.
Recommended Excitation: 10V
Defend Grade: IP67
Application: Weighing Industrial
Cable Length: 1-10 Meters
Measuring Range: 5-500kg
Feature: High Accuracy
High Light:

5V Column Type Load Cell

,

IP67 Column Type Load Cell

,

1-50t Column Type Load Cell

Basic Infomation
Place of Origin: China
Brand Name: Top Sensor
Model Number: CR series
Payment & Shipping Terms
Delivery Time: 10 days
Payment Terms: T/T in advance
Supply Ability: 2000 pcs per month
Product Description

Product Description:

Our Strain Gage Load Cell technology ensures accurate and reliable measurements, with a non-linearity rate of ≤±0.02% F.S. This Load Transducer Column is capable of handling both tension and compression forces, making it a versatile option for a variety of applications.

Whether you're weighing heavy machinery or measuring force in a manufacturing process, this Load Transducer Column is up to the job. Its durable construction and precise measurements make it an essential tool for any industrial setting.

Don't settle for subpar load cells - trust in our Compression Load Cell to provide you with accurate and dependable results. Order now to experience the difference for yourself!



Features:

  • Product Name: Column Type Load Cell
  • Force Measuring Column
  • Column Mounted Load Cell
  • Defend Grade: IP67
  • Cable Length: 10-15 Meters
  • Non-Linearity: ≤±0.02% F.S.
  • Load Cell Type: Strain Gage Load Cell
  • Application: Weighing Industrial


Technical Parameters:

Excitation Voltage 5VDC / 10VDC
Output Signal Analog (mV/V), Digital (RS485, CAN)
Defend Grade IP67
Non-Linearity ≤±0.02% F.S.
Cable Length 10-15 Meters
Usage Weighing Scale
Model CL-03
Water Protection IP67
Recommended Excitation 10V
Material Alloy Steel,Stainless Steel

This product is a force measuring column, tension and compression cell.



Applications:

Top Sensor CR series Column Mounted Load Cells are designed to provide accurate and reliable measurements for compression forces. They are widely used in various industrial environments such as production lines, material handling, and weighing systems.

With a capacity range of 10T-100T, these compression load cells are made of high-quality alloy steel, making them durable and resistant to harsh environments. They have a non-linearity of ≤±0.02% F.S., which ensures accurate and consistent readings.

The Top Sensor CR series Column Mounted Load Cells are easy to install and maintain. They come with a cable length of 10-15 meters, which allows for flexible installation options. They require an excitation voltage of 5VDC or 10VDC, making them suitable for a wide range of applications.

The Top Sensor CR series Column Mounted Load Cells are ideal for use in various scenarios such as weighing tanks, hoppers, and silos. They are also commonly used in construction and engineering applications such as bridge and building load testing.

With a minimum order quantity of 10 and a delivery time of 10 days, Top Sensor CR series Column Mounted Load Cells are readily available for customers. Payment terms are T/T in advance, and the supply ability is 2000 pcs per month, ensuring that customers can receive their orders on time and with quality assurance.



Support and Services:

The Column Type Load Cell is a high precision sensor designed to measure compression forces in a variety of industrial applications. It features a sturdy column design that ensures accurate readings even under extreme conditions.

Our technical support team is available to assist with any installation or calibration questions you may have. In addition, we offer a range of repair and maintenance services to keep your load cells functioning at optimal levels.

Some of the key technical specifications of the Column Type Load Cell include:

  • Capacity range: 10-500kg
  • Material: Alloy steel, Stainless steel
  • Protection class: IP67, IP68
  • Output signal: 2mV/V,

Whether you need assistance with installation, calibration, or maintenance, our team of experts is here to help you get the most out of your Column Type Load Cell. Contact us today to learn more!



Packing and Shipping:

Product Packaging:

  • Column Type Load Cell
  • User Manual
  • Mounting Hardware

Shipping:

  • Weight: 0.5 kg
  • Dimensions: 30 cm x 20 cm x 10 cm
  • Shipping Method: Standard
  • Shipping Carrier: UPS
