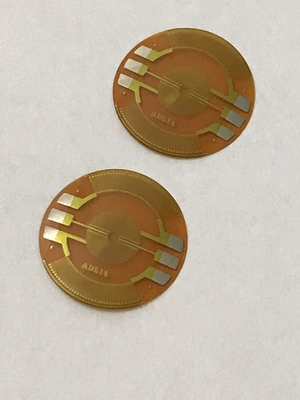

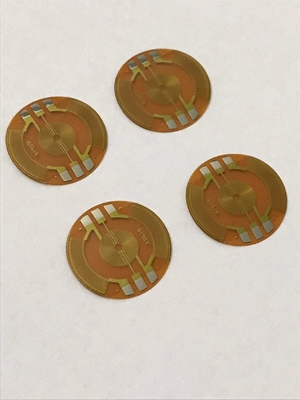

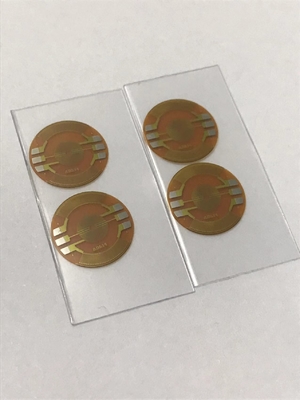

Custom Steel Foil Strain Gauge for Load Cell Sensor with Phenolic Aldehyde Carrier

10
MOQ
2.5
Price
Custom Steel Foil Strain Gauge for Load Cell Sensor with Phenolic Aldehyde Carrier
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Steel Or Alloy Aluminum
Service: Custom
Creep: ±0.05% Full Scale
Silicon: 4.7×0.22×0.02
Working Temperature: -20~+80℃,
Operational Temperature: -20~+80℃
Usage: Load Cell Sensor
Carrier Material: Phenolic Aldehyde/ Polyimide/ Epoxy
Highlight:

Custom Steel Foil Strain Gauge

,

Load Cell Sensor Foil Strain Gauge

,

Phenolic Aldehyde Carrier Foil Strain Gauge

Basic Infomation
Place of Origin: China
Brand Name: Top Sensor
Model Number: KA
Payment & Shipping Terms
Payment Terms: L/C, T/T
Supply Ability: 20000 pcs per month
Product Description

Product Description:

The Foil Strain Gauge uses a thin strip of metal foil that is mounted on a carrier material which is made of Phenolic Aldehyde, Polyimide, or Epoxy. The carrier material provides the necessary support and insulation for the metal foil. The metal foil is manufactured using a special process that ensures high precision and accuracy in its measurement.

Our Foil Strain Gauges have a creep rating of ±0.05% full scale, which means that they are highly reliable and accurate even when subjected to long-term use. They are also resistant to temperature changes, vibrations, and other environmental factors that may affect their performance.

Our Foil Strain Gauges are compatible with various load cell designs and can be easily integrated into existing systems. They are ideal for use in industries such as automotive, aerospace, and manufacturing, where precise and accurate measurements are essential.

Overall, our Foil Strain Gauges are a reliable and cost-effective solution for measuring linear deformation or strain in load cell sensors. With their high-precision design, accuracy, and compatibility with various load cell designs, they are the perfect choice for any load cell application.



Features:

  • Product Name: Foil Strain Gauge, Custom Steel Foil Strain Gauge for Load Cell Sensor with Phenolic Aldehyde Carrier
  • Working Temperature: -20~+80℃
  • Usage: Load Cell Sensor
  • Feature: Micro Pressure Sensor
  • Hysteresis: ±0.05% Full Scale
  • Strain Gage Type: Single Element
  • Related Keywords: Linear Strain Gauges, Strain Gauges


Technical Parameters:

Silicon 4.7×0.22×0.02
Strain Gage Type Single Element
Working Temperature -20~+80℃
Service Custom
Material Steel Or Alloy Aluminum
Operational Temperature -20~+80℃
Feature Micro Pressure Sensor
Usage Load Cell Sensor
Creep ±0.05% Full Scale
Carrier Material Phenolic Aldehyde/ Polyimide/ Epoxy


Applications:

The Top Sensor BA is an ideal product for a wide range of applications, including structural testing, material testing, load cell calibration, and stress analysis. This product is capable of measuring strain, stress, and deformation in various materials, including metals, plastics, and composites. The working temperature range of this product is -20~+80℃, making it suitable for use in extreme environments.

Top Sensor BA is a custom product that is designed to meet the specific needs of the user. It can be used in a wide range of scenarios, including aerospace, automotive, civil engineering, and medical industries. The product's creep is ±0.05% Full Scale, providing accurate and consistent measurements over time.

In summary, the Top Sensor BA is a high-quality foil strain gauge that is designed to provide precise and reliable measurements of strain and deformation. It is a full bridge strain gauge that is suitable for a wide range of applications and scenarios. With its high-quality silicon material and custom design, the Top Sensor BA is an ideal product for anyone looking for accurate and consistent strain measurements.



Customization:



Support and Services:

The Foil Strain Gauge product comes with the following Technical Support and Services:

- Assistance with product installation and initial setup

- Troubleshooting and technical support for any product issues

- Repair and maintenance services for any damaged or malfunctioning products

- Calibration and testing services to ensure accurate and reliable measurements

- Product training and educational resources to help customers fully utilize the product's capabilities



FAQ:

Q: What is a foil strain gauge?

A: A foil strain gauge is a sensor used to measure strain or pressure on an object. It consists of a thin metal foil that is bonded to the surface of the object being measured and changes resistance when the object is subjected to stress or strain.

Q: What is the brand name of this strain gauge?

A: The brand name of this strain gauge is Top Sensor.

Q: What is the model number of this strain gauge?

A: The model number of this strain gauge is BA.

Q: Where is this strain gauge manufactured?

A: This strain gauge is manufactured in China.

Q: What applications are suitable for this strain gauge?

A: This strain gauge is suitable for a wide range of applications including structural testing, aerospace, automotive, and industrial testing.
