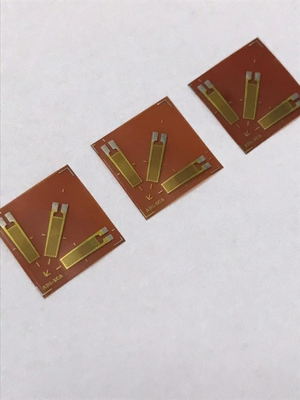

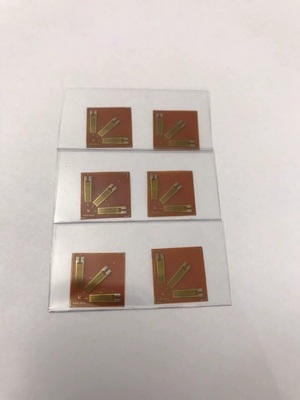

Strain Gauges with 4.7×0.22×0.02 Dimensions and ±0.05% Full Scale Hysteresis

100
MOQ
Strain Gauges with 4.7×0.22×0.02 Dimensions and ±0.05% Full Scale Hysteresis
Features Gallery Product Description Request A Quote
Features
Specifications
Service: Custom
Measurement Range: 0-1000 Microstrain
Silicon: 4.7×0.22×0.02
Working Temperature: -20~+80℃,
Feature: Micro Pressure Sensor
Hysteresis: ±0.05% Full Scale
Model: BF-BA Series
Material: Steel Or Alloy Aluminum
High Light:

±0.05% Full Scale Hysteresis Strain Gauges

,

4.7×0.22×0.02 Strain Gauges

Basic Infomation
Place of Origin: China
Brand Name: Top Sensor
Model Number: BA
Payment & Shipping Terms
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: 2000 pcs per month
Product Description

Product Description:

Our Foil Strain Gauges are made with high-quality Carrier Materials such as Phenolic Aldehyde, Polyimide, and Epoxy, ensuring durability and reliability. These materials are carefully selected to ensure that our Strain Gauges can withstand even the harshest environments and are able to provide accurate readings over a wide range of temperatures (-20~+80℃).

One of the key features of our Foil Strain Gauges is their ability to measure micro pressure with exceptional precision. This makes them ideal for use in applications where accurate pressure measurements are essential, such as in the automotive industry, aerospace industry, and many others.

Our Foil Strain Gauges also feature a low creep rate of ±0.05% Full Scale, ensuring that they maintain their accuracy over time. This is a critical feature for many applications where precise measurements are required.

At [Company Name], we understand that every application is unique, which is why we offer custom Foil Strain Gauges that can be tailored to meet your specific needs. Whether you need a particular Carrier Material or require a specific configuration, our team of experts can work with you to create a custom solution that meets your exact requirements.

If you're looking for a reliable, high-quality Strain Gauge solution, look no further than our Foil Strain Gauges at [Company Name]. Contact us today to learn more about how we can help you with your micro pressure measurement needs!



Features:

  • Product Name: Foil Strain Gauge
  • Material: Steel Or Alloy Aluminum
  • Measurement Range: 0-1000 Microstrain
  • Feature: Micro Pressure Sensor
  • Creep: ±0.05% Full Scale
  • Service: Custom


Technical Parameters:

Operational Temperature -20~+80℃
Working Temperature -20~+80℃
Material Steel Or Alloy Aluminum
Measurement Range 0-1000 Microstrain
Hysteresis ±0.05% Full Scale
Feature Micro Pressure Sensor
Model BF-BA Series
Silicon 4.7×0.22×0.02
Carrier Material Phenolic Aldehyde/ Polyimide/ Epoxy
Strain Gage Type Single Element


Applications:

The BA strain gauge is available in half bridge, full bridge, and quarter bridge configurations. The half bridge strain gauge configuration is suitable for applications where the strain is expected to vary in one direction only. On the other hand, the full bridge strain gauge configuration is ideal for applications where the strain can vary in multiple directions. The quarter bridge configuration is suitable for applications where the strain levels are low.

The BA strain gauge is compatible with carrier materials such as phenolic aldehyde, polyimide, and epoxy. These carrier materials provide excellent stability and durability, making them suitable for use in harsh environments. The strain gauge is also available in different sizes and shapes to fit various applications.

Some of the application occasions and scenarios where the BA strain gauge can be used include:

  • Automotive industry: The strain gauge can be used to measure the deformation of car components, such as suspension systems and brake systems. The full bridge strain gauge configuration is ideal for this application.
  • Aerospace industry: The strain gauge can be used to measure the deformation of aircraft components, such as wings and landing gears. The half bridge or full bridge strain gauge configuration can be used for this application.
  • Civil engineering: The strain gauge can be used to monitor the deformation of structures such as bridges, tunnels, and buildings. The full bridge strain gauge configuration is ideal for this application.
  • Medical equipment: The strain gauge can be used to measure the deformation of medical equipment such as prosthetic limbs and orthopedic implants. The half bridge or full bridge strain gauge configuration can be used for this application.

In conclusion, the Top Sensor BA strain gauge is a versatile and reliable product that can be customized to meet specific measurement needs. Its compatibility with different carrier materials and configurations make it suitable for use in a wide range of applications, including those in harsh environments.



Customization:

With our customization services, we can tailor the BF-BA Series to meet your specific needs. Our team can work with you to determine the best carrier material for your application and adjust the operational temperature range to fit your requirements. Trust Top Sensor for all your Half Bridge Strain Gauge needs.



Support and Services:

The Foil Strain Gauge product technical support and services include:

- Assistance with installation and calibration of the strain gauge

- Troubleshooting and diagnosis of any issues with the strain gauge

- Repair and replacement services for damaged or faulty strain gauges

- Consultation on suitable strain gauge options for specific applications

- Customization of strain gauges for unique measurement requirements



FAQ:

Q: What is a Foil Strain Gauge?

A: A Foil Strain Gauge is a device that measures strain or pressure by converting a physical deformation into an electrical signal.

Q: What is the brand name of this Foil Strain Gauge?

A: The brand name of this Foil Strain Gauge is Top Sensor.

Q: What is the model number of this Foil Strain Gauge?

A: The model number of this Foil Strain Gauge is BA.

Q: Where is this Foil Strain Gauge manufactured?

A: This Foil Strain Gauge is manufactured in China.

Q: What is the accuracy of this Foil Strain Gauge?

A: The accuracy of this Foil Strain Gauge is +/- 0.5% full scale.
