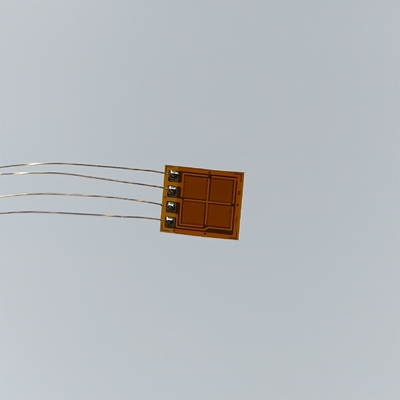

Custom BF BA Series Micro Pressure Sensor Foil Strain Gauges For Load Cell Sensor Technology

Custom BF BA Series Micro Pressure Sensor Foil Strain Gauges For Load Cell Sensor Technology
Features Gallery Product Description Request A Quote
Model: BF-BA Series
Hysteresis: ±0.05% Full Scale
Service: Custom
Measurement Range: 0-1000 Microstrain
Usage: Load Cell Sensor
Creep: ±0.05% Full Scale
Feature: Micro Pressure Sensor
Dimensions: 5 Mm X 5 Mm
High Light:

Load Cell Sensor Foil Strain gauge


Custom Foil Strain gauge


BA Series Foil Strain gauge

Basic Infomation
Place of Origin: China
Brand Name: Top Sensor
Model Number: BF
Payment & Shipping Terms
Product Description

Product Description:

Our Foil Strain Gauge is designed with a full bridge strain gauge configuration, which means that it is capable of providing highly accurate measurements. This configuration is ideal for load cell sensors, which require precise measurements to ensure that the load being measured is accurate.

The Foil Strain Gauge is also designed with a carrier material of either phenolic aldehyde, polyimide, or epoxy. This carrier material is important because it allows the strain gauge to be attached to the load cell sensor, ensuring that it stays in place and provides accurate measurements.

One of the key features of our Foil Strain Gauge is its low creep. With a creep of only ±0.05% full scale, this strain gauge is highly reliable and will provide accurate measurements over a long period of time. This makes it ideal for applications where consistent and accurate measurements are critical.

Overall, our Foil Strain Gauge is a highly reliable and accurate strain gauge that is ideal for load cell sensors. With its full bridge strain gauge configuration, carrier material options, and low creep, this strain gauge is sure to provide accurate and consistent measurements for a wide range of applications.



  • Product Name: Foil Strain Gauge
  • Silicon: 4.7×0.22×0.02
  • Strain Gage Type: Single Element
  • Working Temperature: -20~+80℃
  • Creep: ±0.05% Full Scale
  • Dimensions: 5 Mm X 5 Mm

Foil Strain Gauges, Half Bridge Strain Gauges


Technical Parameters:

Technical Parameter Description
Strain Gage Type Single Element
Feature Micro Pressure Sensor
Measurement Range 0-1000 Microstrain
Dimensions 5 Mm X 5 Mm
Service Custom
Material Steel Or Alloy Aluminum
Carrier Material Phenolic Aldehyde/ Polyimide/ Epoxy
Model BF-BA Series
Usage Load Cell Sensor
Creep ±0.05% Full Scale


The BF-BA Series is manufactured in China using high-quality materials such as steel or alloy aluminum for the gauge itself and phenolic aldehyde, polyimide, or epoxy for the carrier material. This ensures that the gauges are durable and long-lasting.

These half bridge strain gauges are ideal for use in scenarios where load cells are used to measure weight or force. They can be used in a variety of industries, including automotive, aerospace, and construction.

For example, in the automotive industry, the BF-BA Series gauges can be used to measure the stress and strain on vehicle components such as suspension systems and engine mounts. In the aerospace industry, they can be used to measure the structural integrity of aircraft components like wings and landing gear. In the construction industry, they can be used to measure the load bearing capacity of building materials such as concrete and steel.

The versatility of these strain gauges makes them a popular choice for engineers and manufacturers alike. They are easy to install and provide accurate readings, making them an essential tool for any load cell sensor application.

In conclusion, Top Sensor's BF-BA Series Foil Strain Gauges are a reliable and high-quality option for anyone in need of accurate strain measurements. With their single-element strain gage type, durable materials, and half bridge design, they are perfect for a wide range of industries and scenarios.
