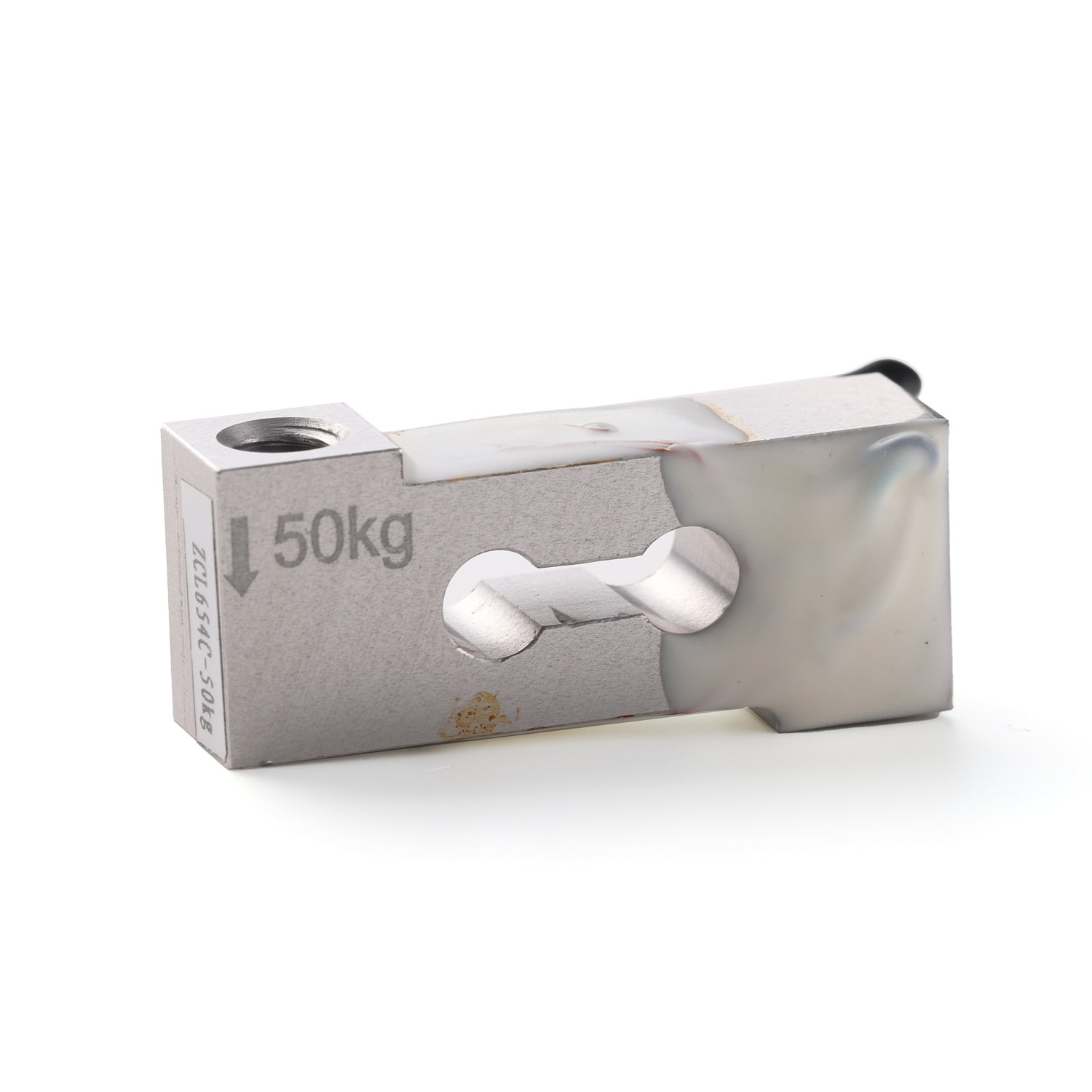

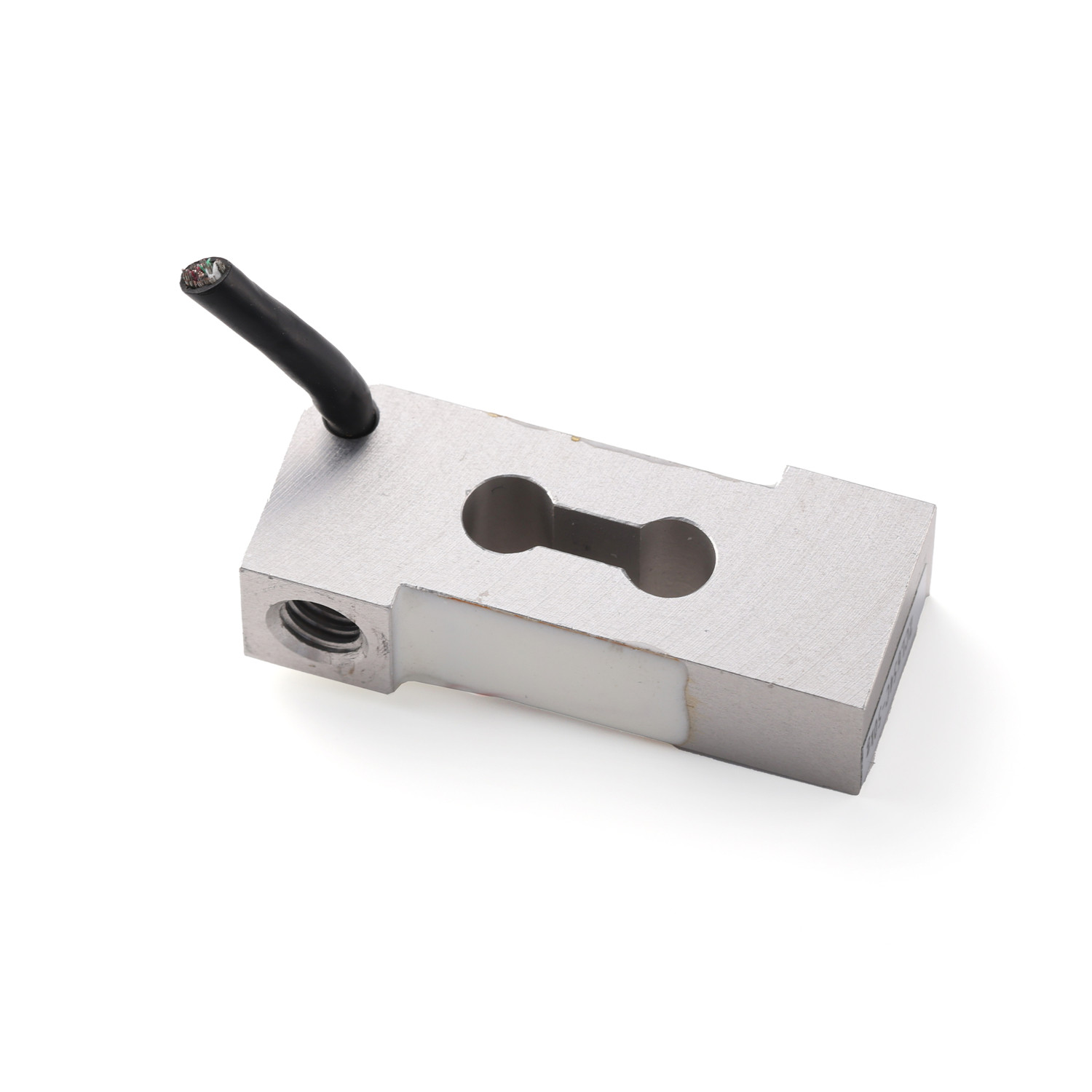

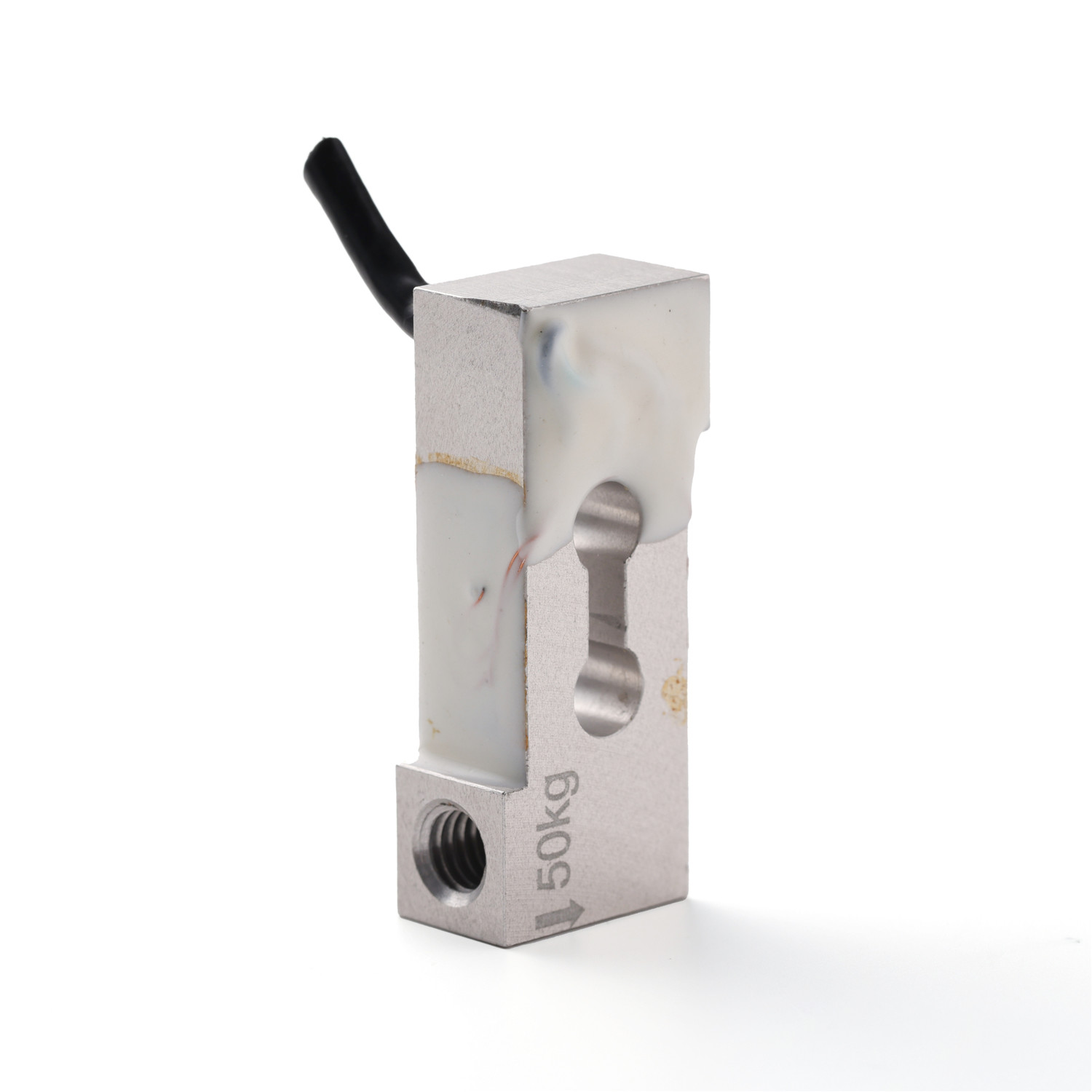

Precision Aluminum Alloy Single Point Load Cell 0.02%FS Accuracy Accept Customization

Precision Aluminum Alloy Single Point Load Cell 0.02%FS Accuracy Accept Customization
Features Gallery Product Description Request A Quote
Cable: φ5, 2m
Accuracy: 0.02%FS
Customized: Acceptable
Compensated Temperature: -10°C To +40°C
Material: Aluminum Alloy
Sensitivity: 2.0±0.2 MV/V
Cable Length: 2-3 Meters
Usage: Weight Measurement Transducer
High Light:

0.02%FS Single Point Load Cell


Customization Single Point Load Cell


Aluminum Alloy Single Point Load Cell

Basic Infomation
Place of Origin: China
Brand Name: Top Sensor
Model Number: SPA-01
Payment & Shipping Terms
Delivery Time: 7 days
Payment Terms: T/T, L/C
Product Description

Product Description:

The SPA-07Single Point Type Load Cell has an input resistance of 400±10Ω, which ensures consistent and accurate readings during weight measurements. This load cell is perfect for a variety of applications such as weighing scales, industrial automation, and other weighing systems.

The SPA-01 Single Point Type Load Cell is designed to operate in temperatures ranging from -20 to 60°C, making it suitable for use in harsh environments. Its rugged construction ensures that it can withstand extreme temperatures and other harsh conditions without affecting its accuracy.

The SPA-01 Single Point Type Load Cell comes with a φ5, 2m cable, which provides ample length for proper installation and use. This cable is designed to be durable and withstand heavy loads, ensuring that it can hold up to constant use over time.

The SPA-01 Single Point Type Load Cell is an excellent choice for those looking for an accurate and reliable load cell to use in their weighing systems. Its high-quality construction, input resistance, and temperature range make it a versatile tool for a wide range of applications.



  • Product Name: Single Point Load Cell
  • Material: Aluminum Alloy
  • Cable Specification: φ5
  • Usage: Weight Measurement Transducer
  • Temp: -20-60°C
  • Cable Length: 2-3 Meters
  • Features: Parallel Beam Load Cell
  • Keywords: Parallel Beam Load Cell, Alloy Aluminum Load Cell

Technical Parameters:

Power Supply 10V DC
Material Aluminum Alloy
Cable Specification φ5
Accuracy 0.02%FS
Operating Temperature -20°C To +60°C
Cable Length 2-3 Meters
Usage Weight Measurement Transducer
Compensated Temperature -10°C To +40°C
Customized Acceptable
Model SPA-07
Vending Machine Load Cell Single Point Type Load Cell, Parallel Beam Load Cell


One common application for the SPA-01 load cell is in vending machines. The load cell can be used to accurately measure the weight of products such as snacks and beverages, ensuring that customers are charged the correct amount.

The SPA-01 load cell is also suitable for use in other commercial and industrial settings where weight measurement is critical. It can be used in packaging and filling machines, as well as in checkweighers and other quality control applications.

The load cell's cable specification is φ5, and it comes with a φ5, 2m cable. It has a temperature range of -20-60°C, making it suitable for use in a variety of environments.

With its reliable performance and durability, the Top Sensor SPA-01 Single Point Type Load Cell is a trusted choice for weight measurement applications.




Packing and Shipping:

Product Packaging:

  • The Single Point Load Cell will be packaged securely in a sturdy cardboard box.
  • The load cell will be encased in foam padding to prevent any damage during transit.
  • The box will also include a user manual and any necessary accessories.


  • The Single Point Load Cell will be shipped via a reputable courier service.
  • The package will be tracked and insured for added security.
  • The estimated delivery time will depend on the destination, but typically takes 3-7 business days.
