Double Shear Beam Load Cells ,500kg,1 Ton Alloy Steel Construction Nickel Plated Material

10
MOQ
Negotiable
Price
Double Shear Beam Load Cells ,500kg,1 Ton Alloy Steel Construction Nickel Plated Material
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Double Shear Beam Load Cell
Material: Alloy Steel, Nickel Plated
Advantage: Oil-proof, Waterproof And Anti-corrosion
Feature: Reliable Performance
Capacity: 500kg,1t,2t
Basic Infomation
Place of Origin: China
Brand Name: Top Sensor
Certification: CE
Model Number: DB-08
Payment & Shipping Terms

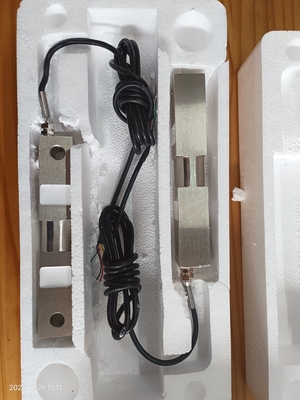

Packaging Details: 4 pcs per ctn
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs per month
Product Description

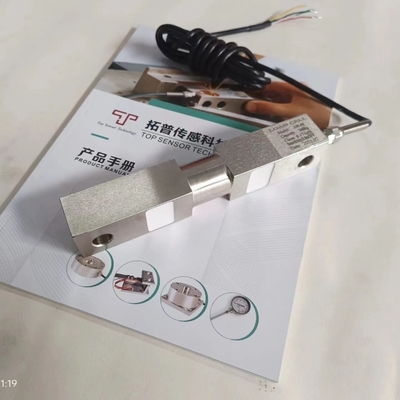

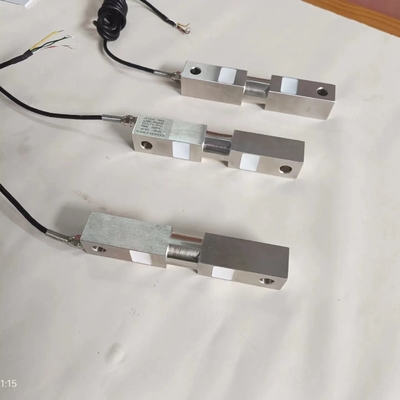

 Load Cell DB-08 Alloy Steel Construction Nickel Plated Material

Shear Beam Load Cells DB-08
Double Shear Beam Load Cells ,Bridge Load Cells. Model:DB-08 Capacity: 1-75Klb Alloy steel construction, nickel plated, hermetically welded, oil-proof, waterproof and anti-corrosion Dual shear beam, Suitable for electronic truck scales, railway scales and other electronic weighing devices


Double Shear Beam Load Cells ,Bridge Load Cells.

  • Model:DB-08

  • Capacity: 1-75Klb

  • Alloy steel construction, nickel plated, hermetically welded, oil-proof, waterproof and anti-corrosion

  • Dual shear beam, Suitable for electronic truck scales, railway scales and other electronic weighing devices.

  • Easy Installation, High Accuracy, Reliable performance.


Dimensions: (mm)

Double Shear Beam Load Cells ,500kg,1 Ton Alloy Steel Construction Nickel Plated Material 0

Double Shear Beam Load Cells ,500kg,1 Ton Alloy Steel Construction Nickel Plated Material 1


Technincal Parameters:



 Accuracy:

 0.02% F.S
 Rated Output(mV/V):  2.0 ±0.001 / 3.0 ±0.001
 Non-linearity(dlin)/%F.S  ±0.02
 Creep(%F.S/30min):  ±0.02
 Hysteresis %F.S  ±0.02
 Repeatability %F.S  ±0.02
 Zero balance mV/V:  ±0.01
 Input resistance:  750±10
 Output resistance:  700±10
 Insulation resistance:  ≥2000(100VDC)
 Temp. effect on span(%F.S/10):  ±0.02
 Temp. effect on zero(%F.S/10):  ±0.02
 Use temp. range():  -30+40
 Excitation voltage(V) : :  1012(DC) Reference 10V
 Safety overload (%F.S)  150%
 Ultimate overload (%F.S)  200%
 Defend grade  IP68
 Cable Length:  12-19 meters, other length available
 Material  Alloy Steel or Stainless Steel
 Wire Connection

 Red (Input+),      Black(Input-),

 Green(Output+),White(Output-)
