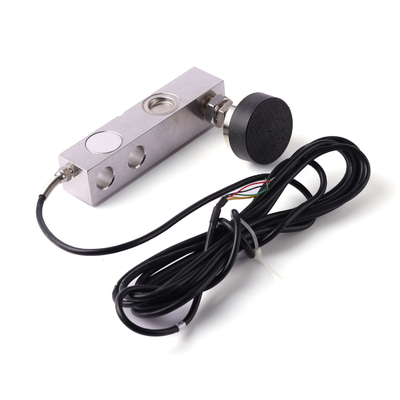

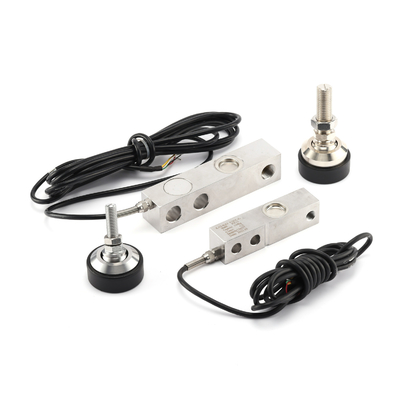

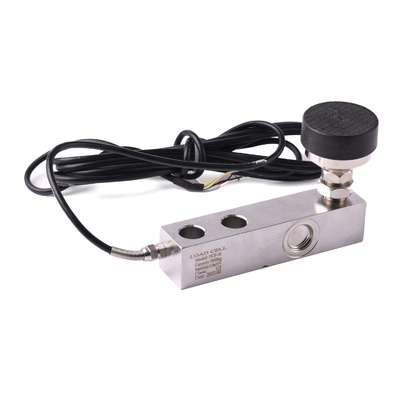

Single Shear Beam Load Cell
Model:SD-03
Capacity:0.2-10t / 0.5-20Klb
Features:
Alloy steel structure; Weld sealing IP67
Applications:
Electronic platform scales, vehicle scales, railroad scales etc
Dimensions:
Capacity |
L |
L1 |
L2 |
L3 |
L4 |
d |
B |
M |
1~4(klb) 0.5~2(t) |
130 |
56.5 |
15.8 |
25.4 |
76.2 |
13.5 |
31.8 |
M16X2 |
5~10(klb) 2.5~5(t) |
171.5 |
77.2 |
19.1 |
38.1 |
95.3 |
20 |
38.1 |
M18X1.5 |
20(klb) 10(t) |
222.3 |
101.6 |
25.4 |
50.8 |
120.7 |
26.2 |
50.8 |
M24x2 |
Precision: 0.02%F.S |
Insulation resistance: ≥5000MΩ(100VDC) |
Rated output: 2±0.003 mv/v or 3mv/v |
Excitation voltage: 9~12VDC |
Non-linearity: 0.03%F.S |
Compensated temp.range: -10~+40℃ |
Hysteresis: 0.03%F.S |
Use temp.range: -20~+55℃ |
Repeat: 0.02%F.S |
Temp.effect on zero: 0.03F.S/10℃ |
Creep: 0.02%F.S/10min |
Temp.effect on span: 0.02F.S/10℃ |
Zero balance: ±1%F.S |
Safe overload: 120% |
Input resistance: 350±5Ω |
Ultimate overload: 150% |
Output resistance: 350±3Ω |
Defend grade: IP67 |
Cable Length :3 meters , 5 meters or on request |
