Home /Products/Column Type Load Cell/Column Truck Scale Load Cell Weighing Capacity Range 10t 20t 30t 40t

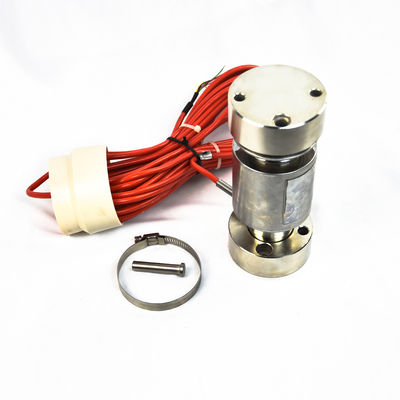

Column Truck Scale Load Cell Weighing Capacity Range 10t 20t 30t 40t

2 pcs
MOQ
Negotiable
Price
Column Truck Scale Load Cell Weighing Capacity Range 10t 20t 30t 40t
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: High Capacity Load Cell
Water Protection: IP67
Material: Alloy Steel
Capacity: 10t,20t.30t,40t
Output Signal: 2mv/v
Usage: Truck Scale,Weigh Bridge
Highlight:

40t Column Load Cell

,

IP67 Column Truck Scale Load Cell

,

Alloy Steel Truck Scale Load Cell
Basic Infomation
Place of Origin: China
Brand Name: Top Sensor
Certification: CE
Model Number: CR-05
Payment & Shipping Terms
Packaging Details: 2 pcs per Carton
Delivery Time: 15-20 days
Payment Terms: T/T, Western Union
Product Description

Column Load Cell,Truck Scale Load Cell Weighing Capacity Range 10t 20t 30t 40t

Canister Load Cells CR-05

Canister Load Cell, Column Type, Compression Weighing CAPACITY: 10-40T Features: Canister Load Cell, High Accuracy, More Stable, The Weighing Capacity range: 10-40t, Stainless Steel Structure, Compression Load Cell Laser Sealed, Water Proof to IP68

Canister Load Cell, Column Type, Compression Weighing
Model: CR-05
Capacity: 10-40T
Features:
Canister Load Cell, High Accuracy, More Stable,
The Weighing Capacity range: 10t,20t.30t,40t
Alloy Steel or Stainless Steel Structure, Compression Load Cell
Laser Sealed, Water Proof to IP67,
APPLICATIONS: Suit for Truck Scale, Weigh Bridge and other electronic weighing equipment

Dimensions (mm):

Column Truck Scale Load Cell Weighing Capacity Range 10t 20t 30t 40t 0



Precision: 0.02%F.S Insulation resistance: ≥5000MΩ(100VDC)
Rated output: 2±0.003mv/v Excitation voltage: 9~12VDC
Non-linearity: 0.03%F.S Compensated temp.range: -10~+40℃
Hysteresis: 0.03%F.S Use temp.range: -20~+55℃
Repeat: 0.02%F.S Temp.effect on zero: 0.02F.S/10℃
Creep: 0.02%F.S/30min Temp.effect on span: 0.02F.S/10℃
Zero balance: ±1%F.S Safe overload: 150%
Input resistance: 700±10Ω Ultimate overload: 200%
Output resistance: 700±5Ω Defend grade: IP68
Wire Connection Cable Length
Red (Input+) Black (Input-) φ5mm 16 meteres
White (Output-) Green (Output+)
Tag:

stainless steel load cell

tension compression load cell

column load cell
