Name: Single Point Load Cell Capacity 100kg 500kg 1000kg 2000kg 5000kg 10000kg
Brand: Top Sensor Technology Co.Ltd
SKU: SD-03A
Price: 999.30 USD
Availability: InStock

Single Point Load Cell Capacity 100kg 500kg 1000kg 2000kg 5000kg 10000kg

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Alloy Steel Or Stainless Steel

Accuracy: C3

Water Protection: IP68

Cable Length: 3-10 Meters

Application: Platform Scale

Load Cell Type: Single Shear Beam Load Cell

Highlight:

shear beam type load cell

beam type load cell

500kg Single Point Load Cell

Basic Infomation

Place of Origin: China

Brand Name: TOP SENSOR

Certification: CE

Model Number: SD-03A

Payment & Shipping Terms

Packaging Details: 12 pcs per ctn

Delivery Time: 10-15 days

Payment Terms: T/T, Western Union

Gallery

Single Point Load Cell Capacity 100kg 500kg 1000kg 2000kg 5000kg 10000kg

Product Description

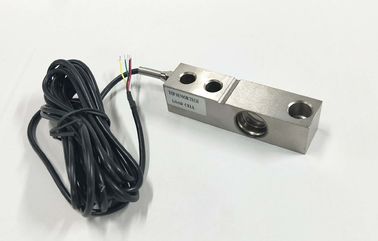

Single Point Load Cell Capacity 100kg 500kg 1000kg 2000kg 5000kg 10000kg

Single Shear Beam Load Cell

Model:SD-03A
Capacity:0.2-10t / 0.5-20Klb

Features:
Alloy steel structure; Weld sealing IP67
Applications:
Electronic platform scales, vehicle scales, railroad scales etc

Dimensions:
Single Point Load Cell Capacity 100kg 500kg 1000kg 2000kg 5000kg 10000kg 0

Capacity	L	L1	L2	L3	L4	d	B	M
0.5~2(t)	130	56.5	15.8	25.4	76.2	13.5	31.8	M12X1.75 or M16
5~10(klb) 2.5~5(t)	171.5	77.2	19.1	38.1	95.3	20	38.1	M18X1.5 3/4-16UNF
15,20(klb) 7.5,10(t)	222.3	101.6	25.4	50.8	120.7	26.2	50.8	M24x2 1-12 UNF

Precision: 0.02%F.S	Insulation resistance: ≥5000MΩ(100VDC)
Rated output: 2±0.003 mv/v or 3mv/v	Excitation voltage: 9~12VDC
Non-linearity: 0.03%F.S	Compensated temp.range: -10~+40℃
Hysteresis: 0.03%F.S	Use temp.range: -20~+55℃
Repeat: 0.02%F.S	Temp.effect on zero: 0.03F.S/10℃
Creep: 0.02%F.S/10min	Temp.effect on span: 0.02F.S/10℃
Zero balance: ±1%F.S	Safe overload: 120%
Input resistance: 350±5Ω	Ultimate overload: 150%
Output resistance: 350±3Ω	Defend grade: IP68
Cable Length :3 meters , 5 meters or on request
