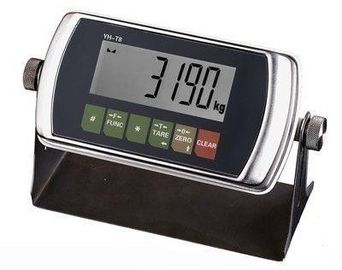

Platform Scale Indicator T8

Platform Scale Indicator, Simple Weight Indicator, Model: T8 Standard function Multi functional LCD display Peak value hold function Animal weighing function External serial port printing function Unit switch function (kg/lb/t) Manual accumulation and automatic accumulation Preset...

Platform Scale Indicator, Simple Weight Indicator,
Model: T8

Standard function

• Multifunctional LCD display

• Peak value hold function

• Animal weighing function

• External serial port printing function

• Unit switch function (kg/lb/t)

• Manual accumulation and automatic accumulation

• Preset tare function

• High-low limits alarm function, HIGH-OK-LOW status indication

• Four grades battery indication, low power alarm and auto power off function

• Auto-sleep and multiple energy-saving mode

• Multiple grades backlight brightness setting

• Precision auto zoom 10-magnification function

• High precision A/D conversion with readability 1/30000

• Able to put in 4 pieces of AA Alkaline dry battery or NIMH rechargeable battery

• Able to connect with A/C adapter approved of international certification

• Optional RS232 and RS485 communication interface, and baud rate is selectable

• Optional 20mA current loop interface for scoreboard connection

Dimensions(mm)

Technical parameter

• Precision grade: 3 grades

• Max division: 3000

• Input-signal range: -19mV～19mV

• Min input-voltage (Umin) of each indexing: 1V

• Conversion rate80 times/sec

• Nonlinear0.0015%

• Power supply: DC 5V

• Load cell communication: able to connect 1~4 350 load cell

• Division: 1/2/5/10/20/50 (selectable)

• Data transportation port (optional): RS232 or RS485, 20mA current loop for scoreboard

• Power: AC 100~240V; 50~60Hz (AC adapter)

• DC 4~6 V (optional: rechargeable battery or 4pcs 3A dry batteries)

• Operation temperature: -10 °C～40 °C

• Storage/transportation temperature: -25 °C～55 °C

• Scoreboard interface(optional)

• Signal output method: serial output, current loop signal

• Baud rate: 600

• Distance of transportation200

• Serial communication interface:

• RS 232C & RS485

• Baud rate: 600/1200/2400/4800/9600 optional

• Distance of transport30m (RS232C) ≤1000m(RS485)
