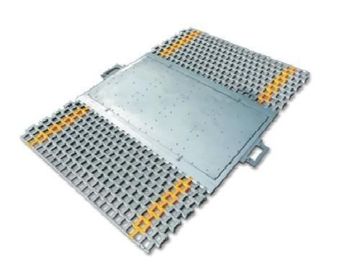

Low Profile Portable Truck Axle Scales , Vehicle Weighing Pads 0.5% Accuracy

  • Low Profile Portable Truck Axle Scales , Vehicle Weighing Pads 0.5% Accuracy
Place of Origin China
Brand Name TST
Certification CE
Model Number TS-06
Minimum Order Quantity 2 units
Price Negotiable
Packaging Details 1 unit per package
Delivery Time 20-30 days
Payment Terms T/T, Western Union
Supply Ability 500 pcs pe rmonth
Product Details
Material Alloy Steel Capacity 10-20t
Accuracy 0.5% Cable Length 10 Meters
Signal 1mv ,1.5mv Water Protection IP66
High Light

truck weight scale

,

portable axle weigh pads
Leave a Message
Product Description

Low Profile Portable Truck Axle Scales , Vehicle Weighing Pads 0.5% Accuracy



Portable Scales

Portable Axle Scales, Weigh Pad, Model: TS-06 Description: Capacity: 10t, 15t, 20t Ultra Low Profile weigh pad scale Aluminum-alloy; Easily mounted / unmounted slope; Light weight, and convenient transportation.and high precision. large platform size



Portable Axle Scales, Weigh Pad, Model: TS-06

Description:

  • Capacity: 10t, 15t, 20t

  • Ultra Low Profile weigh pad scale

  • Aluminum-alloy; Easily mounted / unmounted slope;

  • Light weight, and convenient transportation.and high precision. large platform size

PARAMETERS:

Precision (%F.S): 0.1~0.5

Insulation resistance(M)5000(100VDC)

Dynamic Error(%F.S): 1.5 (1~5km/h) 3~5 (5~10km/h)

Compensated temp.range(℃): -10~+50

Rated output(mV/V): 1.0±0.1 & 1.5±0.1

Use temp.range(℃): -30~+80

Non-linearity(%F.S): 0.2

Temp.effect on zero(F.S/10℃): 0.03

Error on corners(%F.S): 0.2

Temp.effect on span(F.S/10℃): 0.05

Repeatariy(%F.S): 0.05

Safe overload(%): 120

Zero balance(%F.S)1

Ultimate overload(%): 150

Excitation voltage(VDC): 9~15

Net weight(kg): 21(10t,20t)

Recommended voltage(V): 10

Defend grade: IP66
