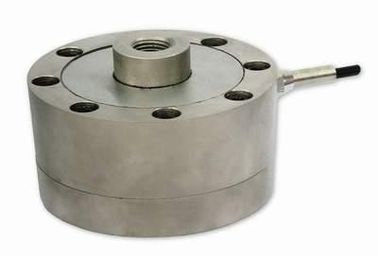

Spoken Load Cell, Compression Weighing
Model: CL-03
CAPACITY: 5-100t
Features:
High Strength Alloy steel, High Precision, Oil-proof, Waterproof IP66
Spoke type, easy installation, suitable for electronic truck scales,
Platform scales and other electronic weighing devices
Dimensions:(mm)
SPECIFICATION | |||
Precision: | C2 | ||
Rated Output: | 2.0 ±0.003 | ||
Creep(%F.S/30min): | ±0.03 | ||
Zero balance(%F.S): | ±1.0 | ||
Input resistance: | 700±10 | ||
Output resistance: | 700±5 | ||
Insulation resistance: | ≥5000(100VDC) | ||
Temp. effect on span(%F.S/10℃): | ±0.03 | ||
Temp. effect on zero(%F.S/10℃): | ±0.03 | ||
Use temp. range(℃): | -30~+65 | ||
Excitation voltage(V): | 9~12(DC) | ||
Safety overload (%F.S) | 150% | ||
Ultimate overload (%F.S) | 200% | ||
Defend grade | IP67 | ||
Cable Length: | 5meters -20 meters | ||
Wire Connection Method | |||
RED=Input+ | BLACK=Input- | GREEN=Output+ | WHITE=Output- |
