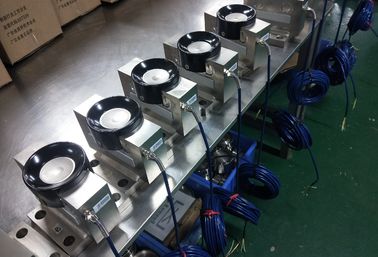

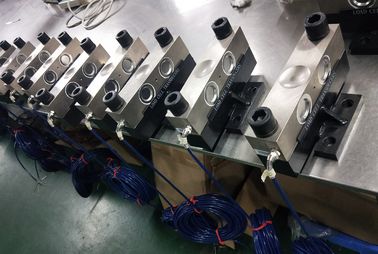

10t-50t Ball Type Load Cell Double Shear Beam Anti - Corrosion Feature

Place of Origin China
Brand Name Top Sensor
Certification CE
Model Number DB-01
Minimum Order Quantity 4 pcs
Price Negotiable

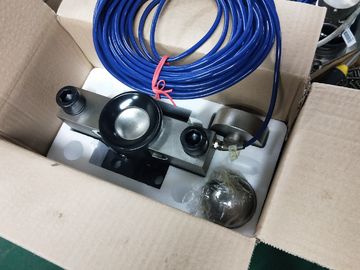

Packaging Details 1 pc per carton
Delivery Time 15-20 days
Payment Terms T/T, Western Union
Product Details
Product Name Ball Type Load Cell Application Weigh Bridge, Truck Scale
Capacity 10t, 20t, 30t, 40t Model DB-01
High Light

load cell weight sensor

,

shear beam type load cell

,

50t Ball Type Load Cell

Leave a Message
Product Description

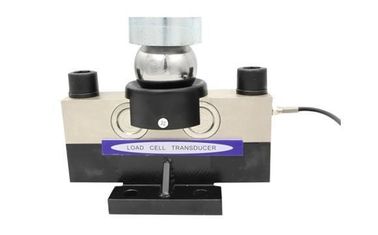

Double Shear Beam Load Cell,Bridge Load Cells,Cup&Ball Type Load Cell

Bridge Load Cells DB-01

Double Shear Beam Load Cells Model: DB-01 CAPACITY: 10t, 20t, 30t, 40t Features: Double Shear Beam Load Cell, Capacity range from 10t - 50t Material: Alloy Steel, good quality, High accuracy and low costs, Glue sealed, oil-proof, waterproof and anti-corrosion APPLICATIONS: Weigh Bridge, Truck...

Double Shear Beam Load Cells

Model: DB-01

CAPACITY: 10t, 20t, 30t, 40t

Features:

  • Double Shear Beam Load Cell, Capacity range from 10t - 50t
  • Material: Alloy Steel, good quality, High accuracy and low costs,
  • Glue sealed, oil-proof, waterproof and anti-corrosion
  • Application: Weigh Bridge, Truck Scale

Parameters:

Precision: C3
Rated Output: 2mv/v±0.003
Creep(%F.S/30min): ±0.02
Zero balance(%F.S): ±1.0
Input resistance: 750±5
Output resistance: 700±5
Insulation resistance: ≥5000(100VDC)
Temp.effect on span(%F.S/10℃): ±0.017
Temp.effect on zero(%F.S/10℃): ±0.02
Use temp.range(℃): -20~+55
Excitation voltage(V): 9~12(DC)
Safety overload (%F.S) 150%
Ultimate overload (%F.S) 200%
Defend grade IP68
Cable Length: 5 meters -15 meters
Wire Connection Method
RED=Input+ BLACK=Input- GREEN=Output+ WHITE=Output-
