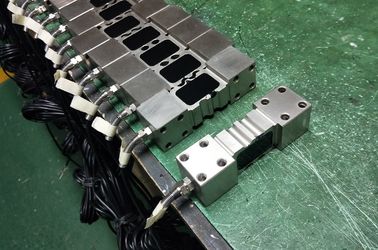

Waterproof Shear Beam Type Load Cell SD-08 Capacity 100kg 200kg 300kg 500kg

  • Waterproof Shear Beam Type Load Cell SD-08 Capacity 100kg 200kg 300kg 500kg
  • Waterproof Shear Beam Type Load Cell SD-08 Capacity 100kg 200kg 300kg 500kg
Place of Origin China
Brand Name TOP SENSOR
Certification CE
Model Number SD-08
Minimum Order Quantity 4 pcs
Price Negotiable
Packaging Details 1 pc per box,20 pcs per carton
Delivery Time 20 days
Payment Terms T/T, Western Union
Supply Ability 2000 pcs per month
Product Details
Product Name Shear Beam Type Load Cell Capacity 100kg, 200kg, 300kg, 500kg
Model Number SD-08 Material Alloy Steel Or Stainless Steel
High Light

shear beam type load cell

,

beam type load cell

,

Waterproof Shear Beam Type Load Cell
Leave a Message
Product Description

Waterproof Shear Beam Type Load Cell SD-08 Capacity 100kg 200kg 300kg 500kg



Single Shear Beam Load Cells

Model: SD-08
Capacity: 100kg, 200kg, 300kg, 500kg
Features:
  • Shear Beam Load Cell, Capacity range from 100kg to 500kg
  • Material:Alloy Steel or Stainless Steel, good quality, High accuracy and low costs,
  • Glue sealed, oil-proof,waterproof and anti-corrosion

Applications: Floor scales, Platform scales, or other weighing machine

Dimensions: (mm)

Waterproof Shear Beam Type Load Cell SD-08 Capacity 100kg 200kg 300kg 500kg 0



Parameters:

Precision: C3
Rated Output: 2mv/v±0.003
Creep(%F.S/30min): ±0.02
Zero balance(%F.S): ±1.0
Input resistance: 350±5
Output resistance: 350±5
Insulation resistance: ≥5000(100VDC)
Temp. effect on span(%F.S/10℃): ±0.017
Temp. effect on zero(%F.S/10℃): ±0.02
Use temp. range(℃): -20～+55
Excitation voltage(V): 9～12(DC)
Safety overload (%F.S) 150%
Ultimate overload (%F.S) 200%
Defend grade IP67
Cable Length: 3 meters -10 meters
Wire Connection Method
RED=Input+ BLACK=Input- GREEN=Output+ WHITE=Output-
