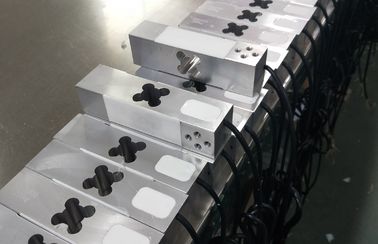

High Accuracy Single Point Load Cell , Aluminum Beam Type Load Cell

  • High Accuracy Single Point Load Cell , Aluminum Beam Type Load Cell
  • High Accuracy Single Point Load Cell , Aluminum Beam Type Load Cell
  • High Accuracy Single Point Load Cell , Aluminum Beam Type Load Cell
  • High Accuracy Single Point Load Cell , Aluminum Beam Type Load Cell
Place of Origin China
Brand Name TOP SENSOR
Certification CE
Model Number SPA-38
Minimum Order Quantity 30 pcs
Price Negotiable
Packaging Details 1 pc per box.30 pcs per carton
Delivery Time 15-20 days
Payment Terms T/T, Western Union
Supply Ability 10000 pcs per month
Product Details
Material Alloy Aluminum Output Signal 2mv/v
Load Cell Type Parallel Beam Load Cell Accuracy C3
Cable Length 2-5 Meters Application Platform Scale
High Light

platform load cell

,

aluminum load cell
Leave a Message
Product Description

Parallel Beam Load Cells, Single Point bending beam Load Cells

Model: SPA-38

CAPACITY: 50kg, 100kg, 200kg, 300kg, 500kg

Features: Parallel Beam Load Cell,
High Grade Alloy Aluminum, good quality, high accuracy and low costs
Silicon adhesive sealed, surface anodized. standard mounting and popular to make bench scales.
Applications: Bench scales, packaging machine, platform scales and other industrial weighing equipment.

Typical Application

High Accuracy Single Point Load Cell , Aluminum Beam Type Load Cell 0

Dimensions:mm

High Accuracy Single Point Load Cell , Aluminum Beam Type Load Cell 1

Specification:
Precision: C2 / C3
Rated Output: 2mv/v±0.1
Creep(%F.S/30min): ±0.02
Zero balance(%F.S): ±1.0
Input resistance: 405±10
Output resistance: 350±3
Insulation resistance: ≥5000(100VDC)
Temp. effect on span(%F.S/10℃): ±0.02
Temp. effect on zero(%F.S/10℃): ±0.02
Use temp. range(℃): -20～+55
Excitation voltage(V): 9～12(DC)
Safety overload (%F.S) 120%
Ultimate overload (%F.S) 150%
Defend grade IP65
Cable Length: 2 meters -6 meters

Packaging & Shipping

Packing
Standard export package: each unit has individual box and all boxes are packed in standard packages.30 pcs per carton, 19kg/ctn

Shipping
Products are shipped from our factory in China

It usually takes 3--5 working days to reach your side by Express such as EMS, DHL, FEDEX etc, we have ability to clear China custom.

Our Services
Service standards: we are committed to provide a high quality and responsive service to all clients, our mission:safety, quality, warranty!
The fastest reply: Please feel free to contact us if you have any questions. You will get a professional and experienced, please leave a message, and tell us the product model you need and your E-mail address.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.
