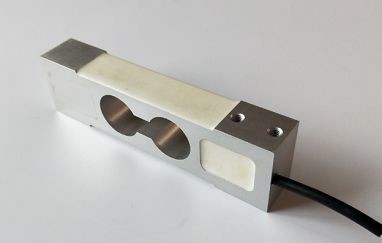

Parallel Beam Load Cells Model: SPA-50 CAPACITY: 5kg-200kg Features: Parallel Beam structure, use high precision strain gauge , increased the load cell performance Good quality Alloy Aluminum material, High accuracy with off-center loads, low costs Silicon adhesive sealed, surface anodized.
Parallel Beam Load Cells
Model: SPA-50
Capacity: 5kg-200kg
Features:
Application: bench scales, platform scales floor scale and other electronical weighing equipment
Dimensions:(mm)
Load Direction
Technical Parameters: | |||
Accuracy: | C2/C3 | ||
Full Scale Output: | 2mv/v±0.1 | ||
Creep(%F.S/30min): | ±0.02 | ||
Non-linearity(%F.S) | ±0.02 | ||
Hysteresis:(%F.S) | ±0.02 | ||
Zero balance(%F.S): | ±1.0 | ||
Input resistance: | 405±10 | ||
Output resistance: | 350±3 | ||
Insulation resistance: | ≥5000(100VDC) | ||
Temp. effect on span(%F.S/10℃): | ±0.02 | ||
Temp. effect on zero(%F.S/10℃): | ±0.02 | ||
Use temp. range(℃): | -20~+55 | ||
Excitation voltage(V): | 9~12(DC) | ||
Safe overload (%F.S) | 120% | ||
Breaking overload (%F.S) | 150% | ||
Defend grade | IP65 | ||
Cable Length: | 2 meters -5 meters | ||
Wire Connection Method: | |||
RED=Voltage+ | BLACK=Voltage- | GREEN=Signal+ | WHITE=Signal- |
Packaging
Standard export package: each unit has individual box and all boxes are packed in standard cartons,
each Carton 30 pcs,G.W:15kg /ctn
