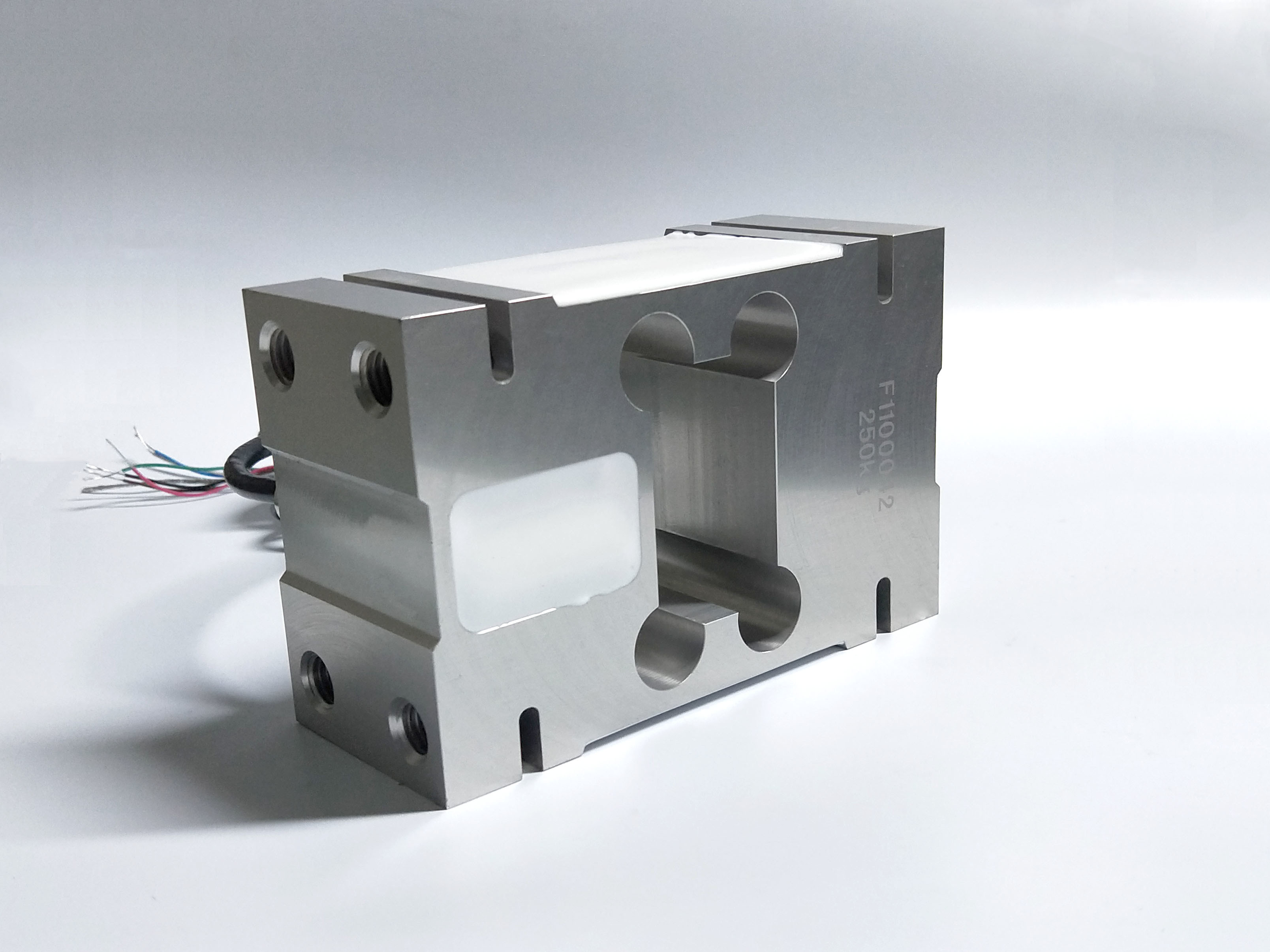

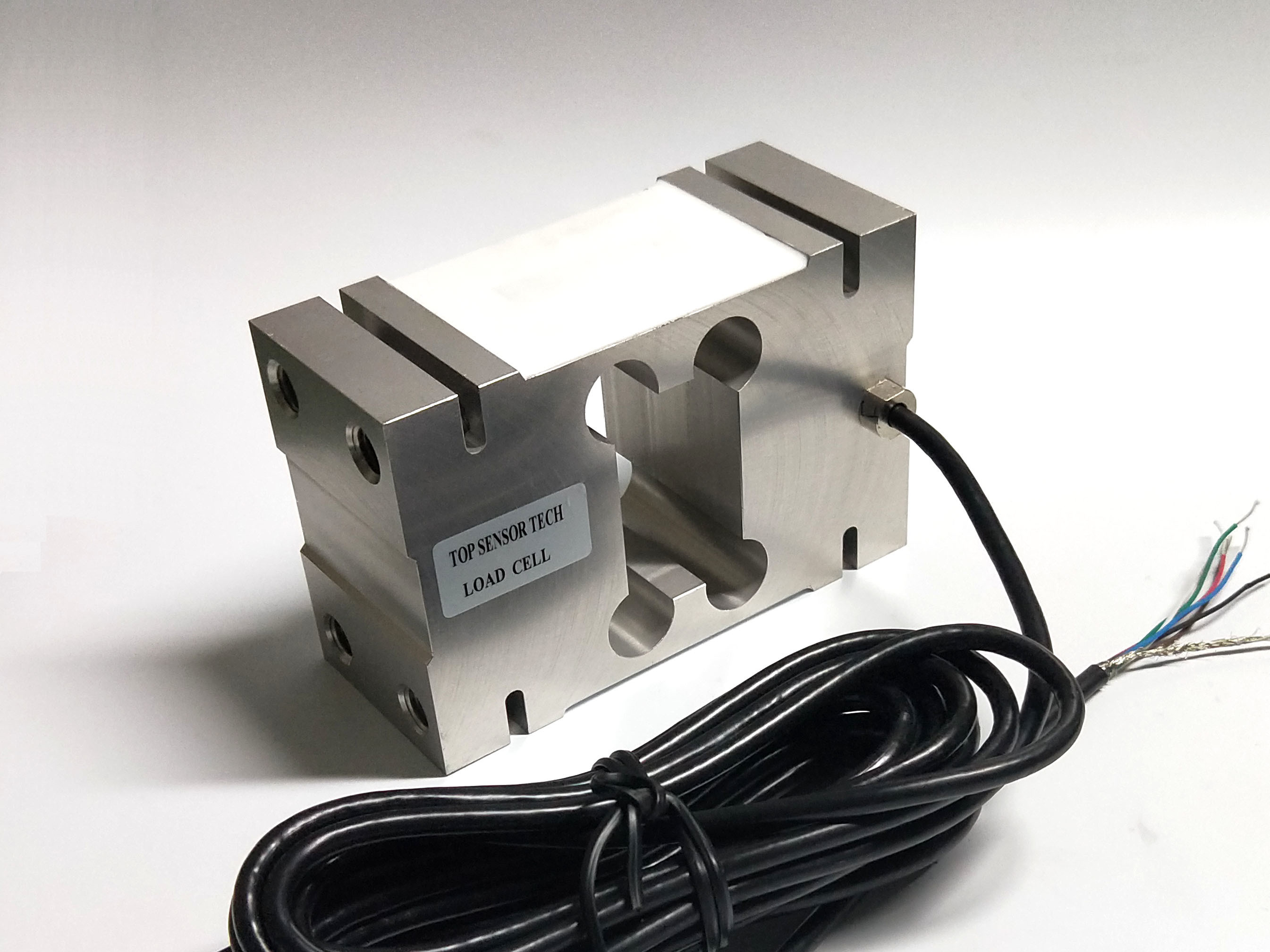

Single Point Force Load Cell For Weighing Device IP65 Water Protection

  • Single Point Force Load Cell For Weighing Device IP65 Water Protection
  • Single Point Force Load Cell For Weighing Device IP65 Water Protection
Place of Origin China
Brand Name TOP SENSOR
Certification CE
Model Number SPA-32
Minimum Order Quantity 1 pc
Price Negotiable
Packaging Details 1 pc per box
Delivery Time 15-20 days
Payment Terms D/P, T/T, Western Union
Supply Ability 2000 pcs per month
Product Details
Type Parallel Beam Load Cell Material Alloy Aluminum
Water Protection IP65 Output Signal 2mv/v
Cable Length 2-3 Meters Application Weighing Device
High Light

platform load cell

,

aluminum load cell
Leave a Message
Product Description

Single Point Load Cells SPA-32

Single Point Load Cells Model: SPA-32 CAPACITY: 50kg-2500kg Features: Material: Alloy Aluminum, Surface anodized, recommend platform size 600x600mm, 600X800mm Glue Sealed, Anti-corrosion High Precision, OIML C3 standard, Long terms stability APPLICATIONS: Electronic scales, platform scales and...



High Capacity Single Point Load Cells

Model: SPA-32

CAPACITY: 50kg-2500kg

Features:

  • Material: Alloy Aluminum, Surface anodized, recommend platform size 600x600mm, 600X800mm,1200mm x 1200mm.
  • Glue Sealed, Anti-corrosion
  • High Precision, OIML C3 standard,
  • Super high capacity single point load cell.
  • A unique design allows for very large platform sizes up to 1200mm x 1200mm.
  • Direct mounted in this design makes a low profile platform with one single load cell

APPLICATIONS: Electronic scales, platform scales and other weighing equipment

Dimensions:

Single Point Force Load Cell For Weighing Device IP65 Water Protection 0

Related Load(kg)

50～200

250～500

750～2500

A

146

156

176

B

75

95

125

C

44

60

76.2

D

50

70

95

E

24

36

46

M

M12

M12

M16



Specifications:

Precision:

C2

Rated Output:

2mv/v±0.1

Creep(%F.S/30min):

±0.02

Zero balance(%F.S):

±1.0

Input resistance:

405±10

Output resistance:

350±3

Insulation resistance:

≥5000(100VDC)

Temp. effect on span(%F.S/10℃):

±0.02

Temp. effect on zero(%F.S/10℃):

±0.02

Use temp. range(℃):

-20～+55

Excitation voltage(V):

9～12(DC)

Safety overload (%F.S)

150%

Defend grade

IP66

Cable Length:

3 meters -6 meters
