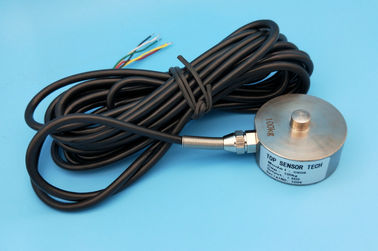

Spoken Column Type Load Cell , Compression Load Cell OEM ODM Service

  • Spoken Column Type Load Cell , Compression Load Cell OEM ODM Service
  • Spoken Column Type Load Cell , Compression Load Cell OEM ODM Service
Place of Origin China
Brand Name TST
Certification CE
Model Number CL-04
Minimum Order Quantity 10
Price Negotiable
Packaging Details 20 pcs per carton
Delivery Time 15-20 days
Payment Terms T/T, Western Union
Supply Ability 5000 pcs per month
Product Details
Material Alloy Aluminum Or Alloy Steel Usage Weighing Scale
Signal 2mv/v Cable 2-6 Meters
Water Protection IP67 OEM/ODM Acceptable
High Light

stainless steel load cell

,

tension compression load cell
Leave a Message
Product Description

Spoken Load Cell,Compression Load Cell 10kg,20kg,100kg.500kg.1000kg,2000kg,5000kg,10,000kg



Spoken Load Cell, Compression Weighing

Model:CL-04

CAPACITY:

100KG-30,000KG

Features:

High Strength Alloy steel,High Precision,Oil-proof,Waterproof IP66

Spoke type,easy installation,suitable for electronic truck scales,

Platform scales and other electronic weighing devices

Dimensions:(mm)

Spoken Column Type Load Cell , Compression Load Cell OEM ODM Service 0

Spoken Column Type Load Cell , Compression Load Cell OEM ODM Service 1



SPECIFICATION
Precision: C2
Rated Output: 2.0 ±0.003
Creep(%F.S/30min): ±0.03
Zero balance(%F.S): ±1.0
Input resistance: 700±10
Output resistance: 700±5
Insulation resistance: ≥5000(100VDC)
Temp. effect on span(%F.S/10℃): ±0.03
Temp. effect on zero(%F.S/10℃): ±0.03
Use temp. range(℃ ): -30～+65
Excitation voltage(V) : : 9～12(DC)
Safety overload (%F.S) 150%
Ultimate overload (%F.S) 200%
Defend grade IP66
Cable Length: 1meters -6 meters
Wire Connection Method
RED=Input+ BLACK=Input- GREEN=Output+ WHITE=Output-
