Home /Products/Miniature Load Cell/Miniature Micro Load Cell Weight Sensor 0.5kg,1kg,2kg,5kg,10kg,20kg

Miniature Micro Load Cell Weight Sensor 0.5kg,1kg,2kg,5kg,10kg,20kg

100
MOQ
Negotiable
Price
Miniature Micro Load Cell Weight Sensor 0.5kg,1kg,2kg,5kg,10kg,20kg
Features Gallery Product Description Request A Quote
Features
Specifications
Output: 1mv
Usage: Weighing Device
Theory: Strain Gauge Load Cell
Product Name: Micro Load Cell
Material: Alloy Aluminum
Application: Kitchen Scale,Weighing Scale,Auto Weighing
Capacity: 1-50kg
Accuracy: 0.3-0.5% FS
Basic Infomation
Place of Origin: China
Brand Name: TOP SENSOR
Model Number: SL-02
Payment & Shipping Terms
Delivery Time: 25-30 days
Payment Terms: T/T
Supply Ability: 20000 pcs per month
Product Description

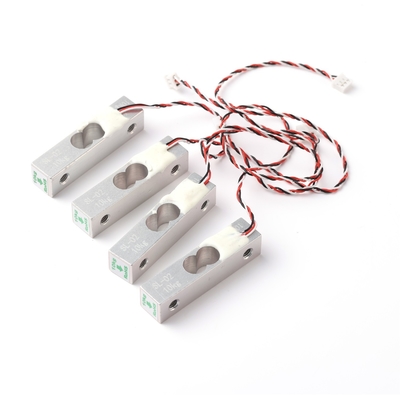

Miniature Load Cells , Micro Load Cell , Weight Sensor , 0.5kg,1kg,2kg,5kg,10kg,20kg Load Cell

Miniature Load Cells,Small Load Cell, Model  SL-02

Micro Load Cell, Miniature Load Cell Model: SL-02 CAPACITY: 1kg-50kg Features: Alloy Aluminum material, High Precision, Colourless anodized, small size, low costs Parallel Beam type, easy installation, suitable for electronic kitchen scales



Micro Load Cell, Miniature Load Cell

  • Model: SL-02

  • Capacity: 1kg-50kg

  • Features:Alloy Aluminum material, High Precision, Colourless anodized, small size, low costs,Parallel Beam type, easy installation, suitable for electronic kitchen scales

  • Dimensions:(mm)

Miniature Micro Load Cell Weight Sensor 0.5kg,1kg,2kg,5kg,10kg,20kg 0

  • Specification

Precision:

0.05% FS

Rated Output:

1.0 ±0.01 mv/v

Creep(%F.S/30min):

±0.05

Zero balance(%F.S):

±1.0

Input resistance:

1000±10

Output resistance:

1000±5

Insulation resistance

≥5000(100VDC)

Temp.effect on span(%F.S/10℃)

±0.03

Temp.effect on zero(%F.S/10℃):

±0.03

Use temp.range(℃):

9～12(DC)

Safety overload (%F.S)

120%

Ultimate overload (%F.S)

150%

Defend grade

IP65

Cable Length:

220 -660 mm

Wire Connection Method



RED=Input+ BLACK=Input- GREEN=Output+ WHITE=Output-



















Tag:

mini load cell

small load cell

micro load cell
