SDK-03 Load Cell Accessories Weighing Module Capacity 500kg-5000kg

Basic Information
Place of Origin: China
Brand Name: TOP SENSOR
Model Number: SDK-03
Minimum Order Quantity: 3 pcs
Price: Negotiable
Delivery Time: 20 -30 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs per month
Material: Alloy Steel Or Stainless Steel Capacity: 500kg-5000kg
Application: Hopper Weighing Cable Length: 3-10 Meters
Water Protection: IP67,IP68 Load Cell Type: Shear Beam Load Cell
High Light:

load cell mountings

,

load cell junction box

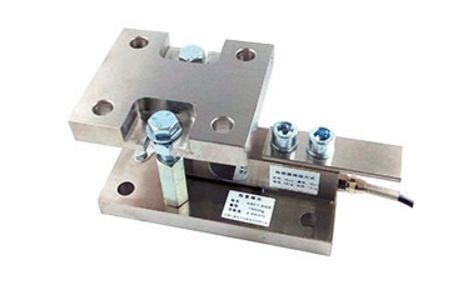

SDK-03 Load Cell Accessories Weighing Module Capacity 500kg-5000kg



Weighing Module, Load Cell Accessories

Model: SDK-03

Lift-off protection, High Stability
Self aligning construction
Nickel plated alloy steel, stainless steel available
Can be used with Single shear beam Load Cell

Dimensions(mm)

SDK-03 Load Cell Accessories Weighing Module Capacity 500kg-5000kg 0

SDK-03 Load Cell Accessories Weighing Module Capacity 500kg-5000kg 1

Capacity

H

H1

H2

B1

B2

D1

D2

L

L1

L2

L3

L4

L5

L6

0.25-2t

106

58

18

100

100

13

13

210

175

140

116

80

70

70

3-5t

135

73

23

160

160

17

17

270

235

200

150

100

90

90
