IP68 Single Shear Beam Strain Gauge Force Sensor

4 pcs
MOQ
Negotiable
Price
IP68 Single Shear Beam Strain Gauge Force Sensor
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Shear Beam Type Load Cell
Capacity: 100kg, 200kg, 300kg, 500kg
Model Number: SD-08
Material: Alloy Steel Or Stainless Steel
Highlight:

IP68 waterproof strain gauge

,

single shear beam load cell

,

force sensor with strain gauge
Basic Infomation
Place of Origin: China
Brand Name: TOP SENSOR
Certification: CE
Model Number: SD-08
Payment & Shipping Terms
Packaging Details: 1 pc per box,20 pcs per carton
Delivery Time: 20 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs per month
Product Description

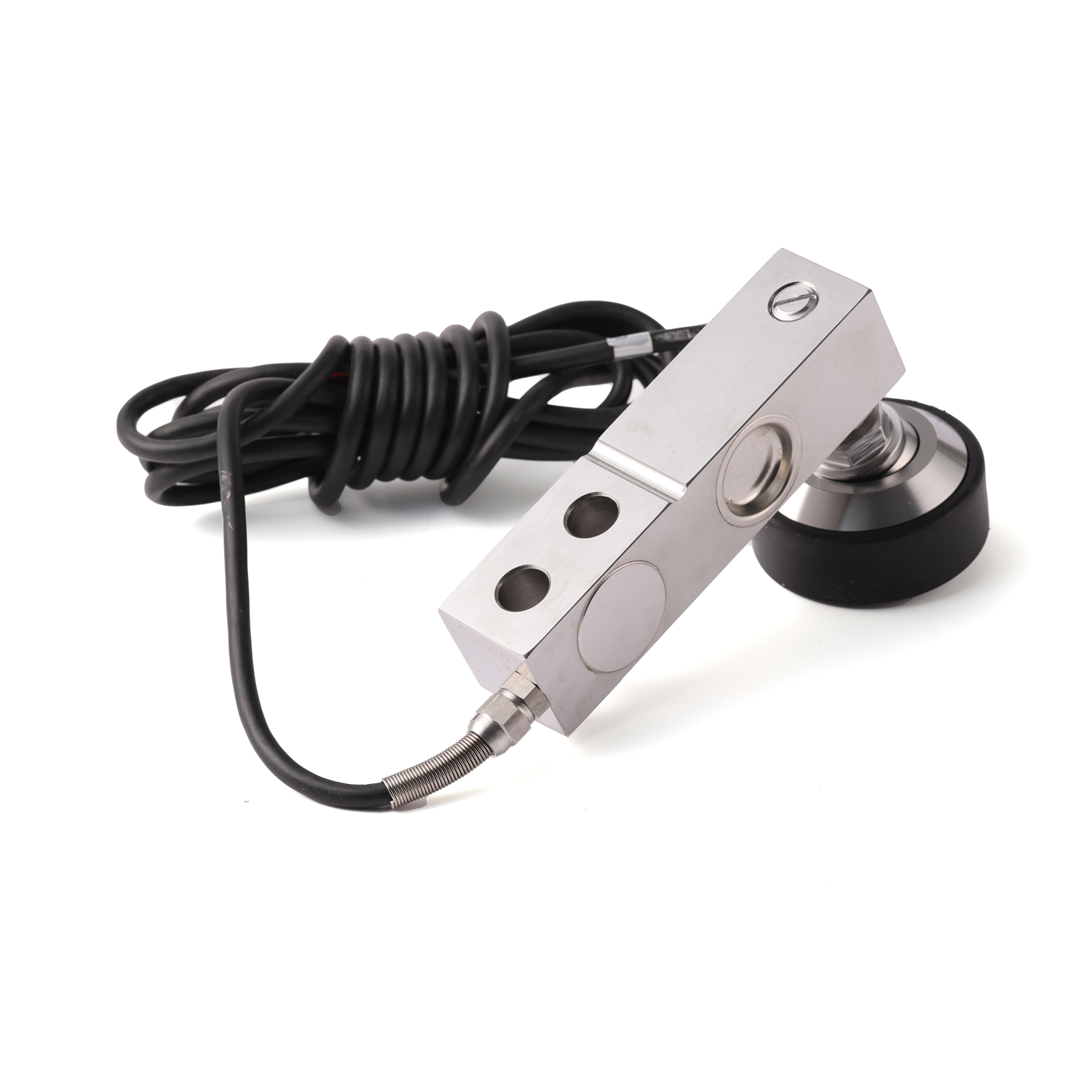

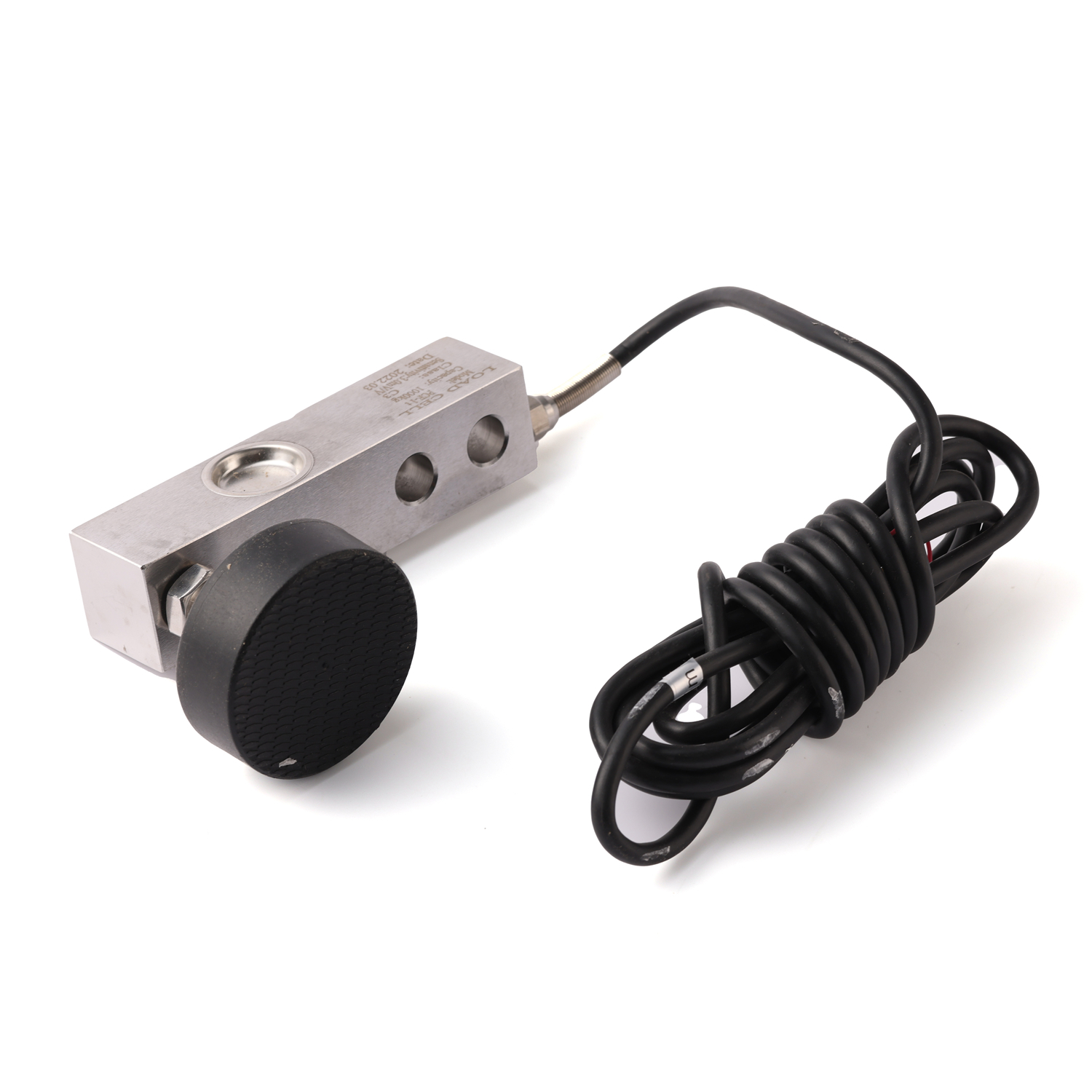

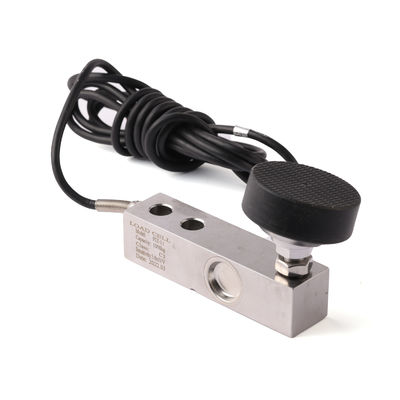

IP68 Single Shear Beam Strain Gauge Force Sensor

Model: SD-08
Capacity: 100kg, 200kg, 300kg, 500kg

Features:

  • Shear Beam Load Cell, Capacity range from 100kg to 500kg
  • Material:Alloy Steel or Stainless Steel, good quality, High accuracy and low costs,
  • Glue sealed, oil-proof,waterproof and anti-corrosion

Applications: Floor scales, Platform scales,hopper scale or other weighing machine.

Dimensions: (mm)

IP68 Single Shear Beam Strain Gauge Force Sensor 0



Parameters:



Capacity
30kg～500kg
Accuracy class
C3
Comprehensive error
±0.1% FS
Output sensitivity
2.0±0.1 mV/V
creep
±0.05% FS/30min
Zero output
±2.0% FS
Input impedance
350±20Ω
Output impedance
350±20Ω
insulation resistance
≥5000 MΩ(100VDC)
Influence of zero temperature
±0.05% FS/10℃
Sensitivity temperature effect
±0.05% FS/10℃
Temperature compensation range
-10℃ ~ +40 ℃
Operating temperature range
-30℃ ~ +70 ℃
Excitation voltage
10VDC ~ 12VDC
Safe overload range
150%
Limit overload range
200%
Material Science
Alloy Steel or Stainless Steel
Protection level
IP66
