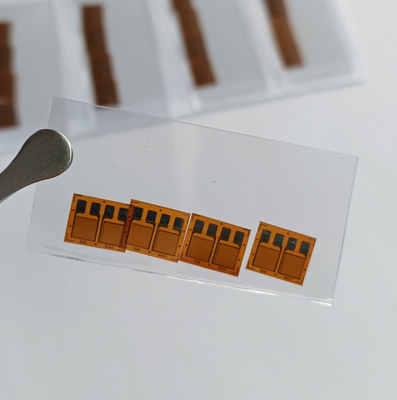

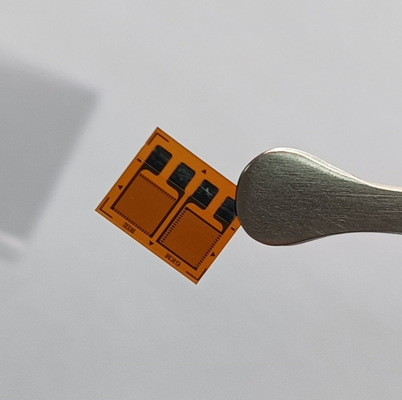

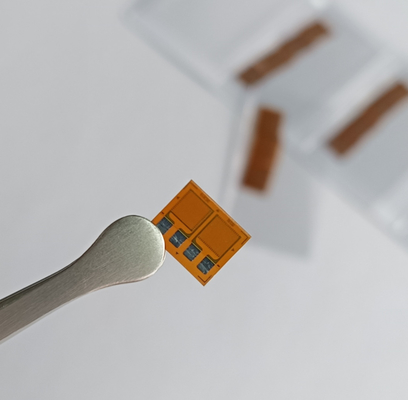

The dimensions of the BF-BA Series Foil Strain Gauge are 3mm -5mm Grid length, making it compact and easy to use in various applications. The silicon material used in this strain gauge measures 4.7×0.22×0.02, which ensures that it delivers precise measurements, even in challenging conditions.
One of the key features of this strain gauge is its custom service. This means that it can be customized to meet the specific requirements of different applications. Whether you need it for research, industrial, or commercial applications, the BF-BA Series Foil Strain Gauge can be customized to suit your needs.
Another key attribute of the BF-BA Series Foil Strain Gauge is its creep performance, which is ±0.05% Full Scale. This ensures that it delivers accurate and reliable results over an extended period.
The BF-BA Series Foil Strain Gauge is one of the best strain gauges available in the market for various applications that require high precision and reliability. Its full bridge design and foil material make it perfect for various applications, including structural analysis, load cells, and other applications that require measurement of surface strain.
Overall, the BF-BA Series Foil Strain Gauge is an excellent choice for those looking for high-quality strain gauges that deliver accurate and reliable results. Its compact size, custom service, and reliable performance make it a must-have for research, industrial, and commercial applications that require precise measurements.
| Technical Parameters | Values |
|---|---|
| Foil Strain Gauge Type | Single Element |
| Dimensions | 5mm x 5mm |
| Material | Steel or Alloy Aluminum |
| Carrier Material | Phenolic Aldehyde/ Polyimide/ Epoxy |
| Feature | Micro Pressure Sensor |
| Operational Temperature | -20～+80℃ |
| Hysteresis | ±0.05% Full Scale |
| Creep | ±0.05% Full Scale |
| Service | Custom |
| Usage | Load Cell Sensor |
The single-element Top Sensor Foil Strain Gauges are designed to measure the strain of an object by detecting changes in the electrical resistance of the foil. This makes them perfect for applications such as load cells, torque sensors, and pressure sensors, where they can be used to measure strain in a wide range of materials and environments.
Top Sensor Foil Strain Gauges are also highly accurate, with a hysteresis of ±0.05% Full Scale, ensuring reliable and consistent measurements every time. The carrier materials used in the production of these strain gauges are Phenolic Aldehyde, Polyimide, and Epoxy, which provide superior mechanical performance and stability, making them ideal for use in harsh environments.
These strain gauges can be used in a wide range of applications, including automotive, aerospace, and industrial applications. They can be used to measure strain in materials such as metals, plastics, and composites, making them a versatile and reliable solution for many different scenarios.
In the automotive industry, Top Sensor Foil Strain Gauges can be used to measure strain in various components such as suspension systems, steering systems, and braking systems, ensuring that they are functioning correctly and safely. In the aerospace industry, these strain gauges can be used to measure the strain in critical components such as wings and fuselages, ensuring that they are operating within safe limits. In the industrial sector, these strain gauges can be used to measure strain in structures such as bridges, pipelines, and buildings, ensuring that they are structurally sound and safe.
Overall, Top Sensor Foil Strain Gauges are a reliable and accurate solution for measuring strain in a wide range of materials and environments. Whether you are working in the automotive, aerospace, or industrial sector, these strain gauges are a versatile and dependable tool that can help you ensure the safety and reliability of your products and structures.
