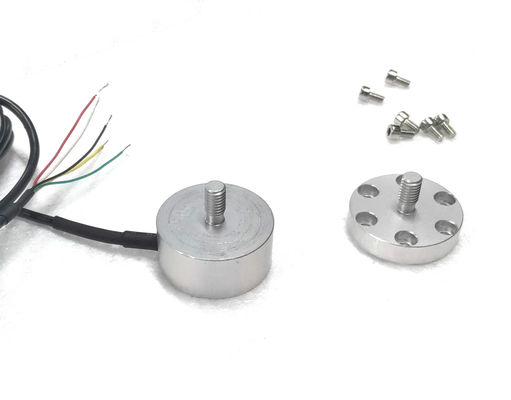

Compression and Tensile Type Load Cell IP66 Alloy Steel Stainless Steel

1 pc
MOQ
Negotiable
Price
Compression and Tensile Type Load Cell IP66 Alloy Steel Stainless Steel
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Micro Load Cell
Protection: Waterproof IP66
Model Number: CL-07
Capacity: 0.5-200kg
High Light:

Alloy Steel Tensile Type Load Cell

,

IP66 Compression Type Load Cell

,

Alloy Steel Strain Gauge Load Cell
Basic Infomation
Place of Origin: China
Brand Name: TOP SENSOR
Certification: CE
Model Number: CL-07
Payment & Shipping Terms
Packaging Details: 1 pc per box, 20 pcs per Carton
Delivery Time: 15-25 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs per month
Product Description

Compression and Tensile Type Load Cell IP66 Alloy Steel,Stainless Steel

Micro Load Cell ,Alloy Steel ,Stainless Steel

Spoken Load Cell, Compression Weighing Model: CL-07 CAPACITY: 0.5KG-200KG Features: High Strength Alloy steel, High Precision, Oil-proof, Waterproof IP66 Spoke type, easy installation, suitable for electronic truck scales, Platform scales and other electronic weighing devices

Micro Load Cell, Compression and Tensile Weighing
Model: CL-07
Capacity: 0.5KG-200KG
Features:

  • High Strength Alloy steel, High Precision, Oil-proof, Waterproof IP66
  • Spoke type, easy installation, suitable for electronic truck scales,
  • Platform scales and other electronic weighing devices

Dimensions:(mm)

Compression and Tensile Type Load Cell IP66 Alloy Steel Stainless Steel 0





Capacity A B C M
0.5-5kg 28 16 38 M4X0.7
10-200kg 33 22 46 M6X1



SPECIFICATION:
Precision: C2
Combined Error: ±0.1
Rated Output: 1mv/v±0.1
Creep(%F.S/30min): ±0.5
Non-linearity(%F.S) ±0.5
Hysteresis:(%F.S) ±0.5
Zero balance(%F.S): ±1.0
Input resistance: 350±5
Output resistance: 350±5
Insulation resistance: ≥5000(100VDC)
Temp. effect on span(%F.S/10℃): ±0.5
Temp. effect on zero(%F.S/10℃): ±0.5
Use temp. range(℃ ): -20～+55
Excitation voltage(V) : : 9～12(DC)
Safety overload (%F.S) 150%
Ultimate overload (%F.S) 200%
Defend grade IP66
Cable Length: 3 meters -10 meters
