Bench Scale Indicator Platform Scale Indicator T8A Battery Power

1 pc
MOQ
Negotiable
Price
Bench Scale Indicator Platform Scale Indicator T8A Battery Power
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Plastic House
Display: Big LCD
Max Division: 3000
Load Cell Communication: 1-4 Pcs 350 Ohm Load Cell
Operation Temperature: -10 °C~40 °C
Power: Battery Power
High Light:

T8A Battery Power Platform Scale Indicator

,

Multifunctional LCD Display Platform Scale Indicator

,

RS232 Bench Scale Indicator

Basic Infomation
Place of Origin: China
Brand Name: Top Sensor
Certification: CE
Model Number: T8A
Payment & Shipping Terms
Packaging Details: 1 pc per box, 8 pcs per Carton
Delivery Time: 10-20 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 pcs per month
Product Description

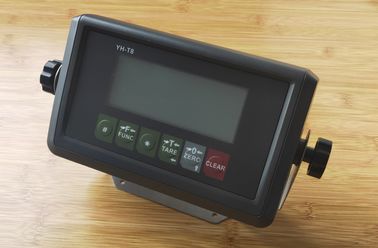

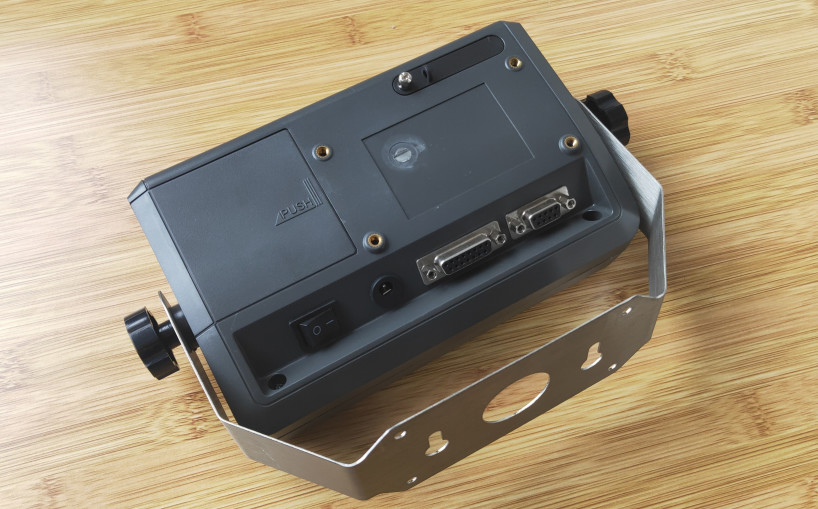

Bench Scale Indicator,Platform Scale Indicator T8A Battery Power



Platform Scale Indicator T8A

Platform Scale Indicator, Simple Weight Indicator, Model: T8 Standard function Multi functional LCD display Peak value hold function Animal weighing function External serial port printing function Unit switch function (kg/lb/t) Manual accumulation and automatic accumulation Preset...



Platform Scale Indicator, Simple Weight Indicator,
Model: T8A

Standard function

  • Multifunctional LCD display

  • Peak value hold function

  • Animal weighing function

  • External serial port printing function

  • Unit switch function (kg/lb/t)

  • Manual accumulation and automatic accumulation

  • Preset tare function

  • High-low limits alarm function, HIGH-OK-LOW status indication

  • Four grades battery indication, low power alarm and auto power off function

  • Auto-sleep and multiple energy-saving mode

  • Multiple grades backlight brightness setting

  • Precision auto zoom 10-magnification function

  • High precision A/D conversion with readability 1/30000

  • Able to put in 4 pieces of AA Alkaline dry battery or NIMH rechargeable battery

  • Able to connect with A/C adapter approved of international certification

  • Optional RS232 and RS485 communication interface, and baud rate is selectable

  • Optional 20mA current loop interface for scoreboard connection



Technical parameter

  • Precision grade: 3 grades

  • Max division: 3000

  • Input-signal range: -19mV~19mV

  • Min input-voltage (Umin) of each indexing: 1V

  • Conversion rate80 times/sec

  • Nonlinear0.0015%

  • Power supply: DC 5V

  • Load cell communication: able to connect 1~4 350 load cell

  • Division: 1/2/5/10/20/50 (selectable)

  • Data transportation port (optional): RS232 or RS485, 20mA current loop for scoreboard

  • Power: AC 100~240V; 50~60Hz (AC adapter)

  • DC 4~6 V (optional: rechargeable battery or 4pcs 3A dry batteries)

  • Operation temperature: -10 °C~40 °C

  • Storage/transportation temperature: -25 °C~55 °C

  • Scoreboard interface(optional)

  • Signal output method: serial output, current loop signal

  • Baud rate: 600

  • Distance of transportation200

  • Serial communication interface:

  • RS 232C & RS485

  • Baud rate: 600/1200/2400/4800/9600 optional

  • Distance of transport30m (RS232C) ≤1000m(RS485)
