Micro Load Cell, Miniature Load Cell Model: SL-02 CAPACITY: 1kg-50kg Features: Alloy Aluminum material, High Precision, Colourless anodized, small size, low costs Parallel Beam type, easy installation, suitable for electronic kitchen scales

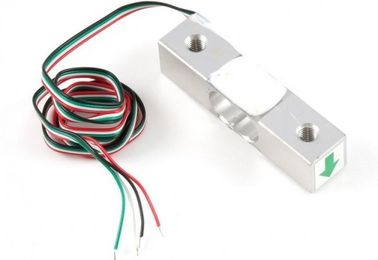

Micro Load Cell, Miniature Load Cell
Model: SL-02
Capacity: 1kg-50kg
Features:Alloy Aluminum material, High Precision, Colourless anodized, small size, low costs,Parallel Beam type, easy installation, suitable for electronic kitchen scales
Dimensions:(mm)
Specification
|
Precision: |
0.05% FS |
|
Rated Output: |
1.0 ±0.01 mv/v |
|
Creep(%F.S/30min): |
±0.05 |
|
Zero balance(%F.S): |
±1.0 |
|
Input resistance: |
1000±10 |
|
Output resistance: |
1000±5 |
|
Insulation resistance |
≥5000(100VDC) |
|
Temp.effect on span(%F.S/10℃) |
±0.03 |
|
Temp.effect on zero(%F.S/10℃): |
±0.03 |
|
Use temp.range(℃): |
9～12(DC) |
|
Safety overload (%F.S) |
120% |
|
Ultimate overload (%F.S) |
150% |
|
Defend grade |
IP65 |
|
Cable Length: |
220 -660 mm |
|
Wire Connection Method |
|
|
RED=Input+ BLACK=Input- GREEN=Output+ WHITE=Output- |
|
