Small Load Cell For Weighing Scale 3kg-100kg Capacity IP66 Water Protection

100 pcs
MOQ
Negotiable
Price
Small Load Cell For Weighing Scale 3kg-100kg Capacity IP66 Water Protection
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Alloy Aluminum
Output Signal: 2mv/v
Capacity: 3kg-100kg
Application: Weighing Scale
Cable Length: 40-100cm
Water Protection: IP66
High Light:

platform load cell

,

aluminum load cell

Basic Infomation
Place of Origin: China
Brand Name: TOP SENSOR
Certification: CE
Model Number: SPA-02
Payment & Shipping Terms
Packaging Details: 100 pcs per carton
Delivery Time: 20-30 days
Supply Ability: 50000 pcs per month
Product Description

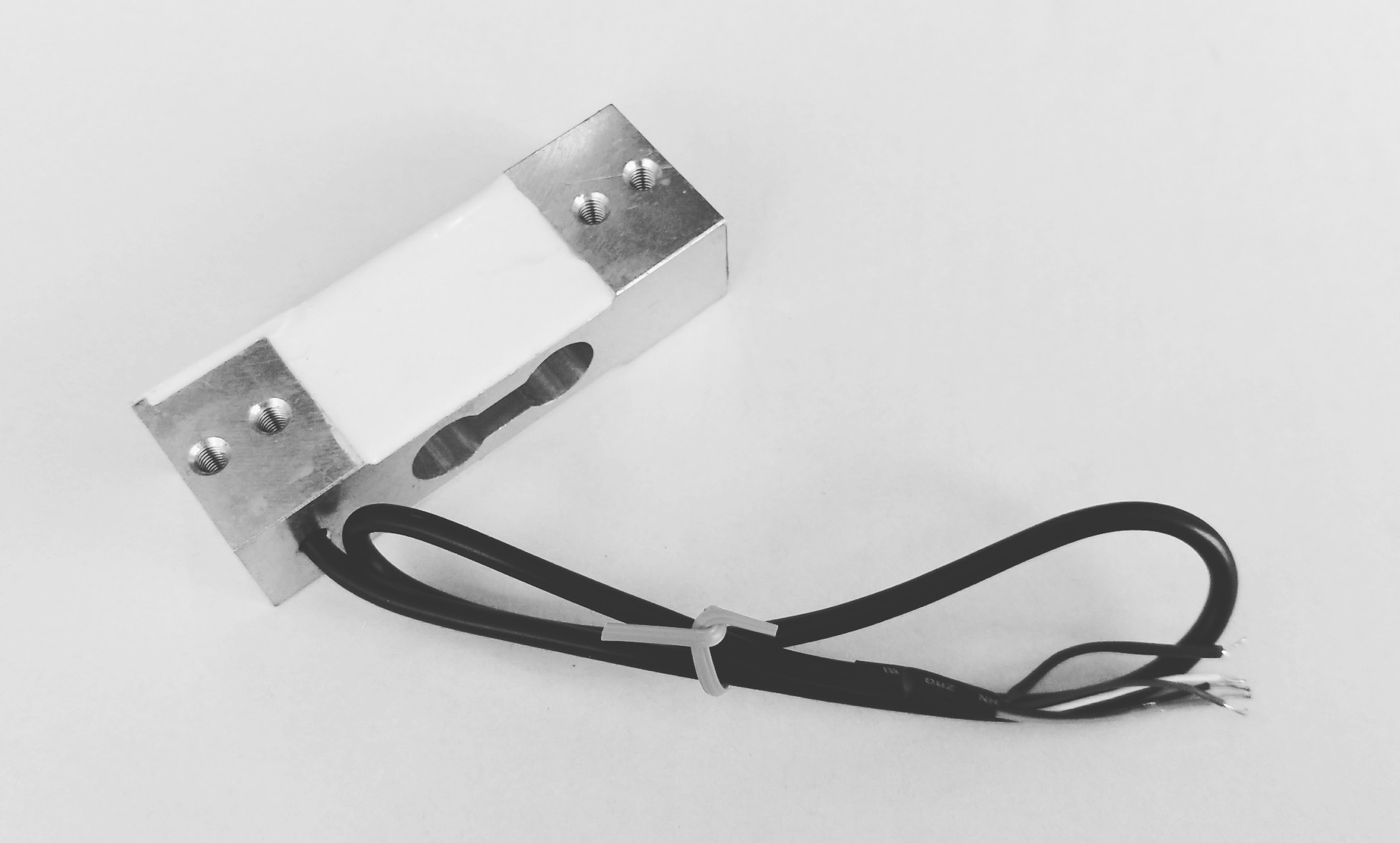

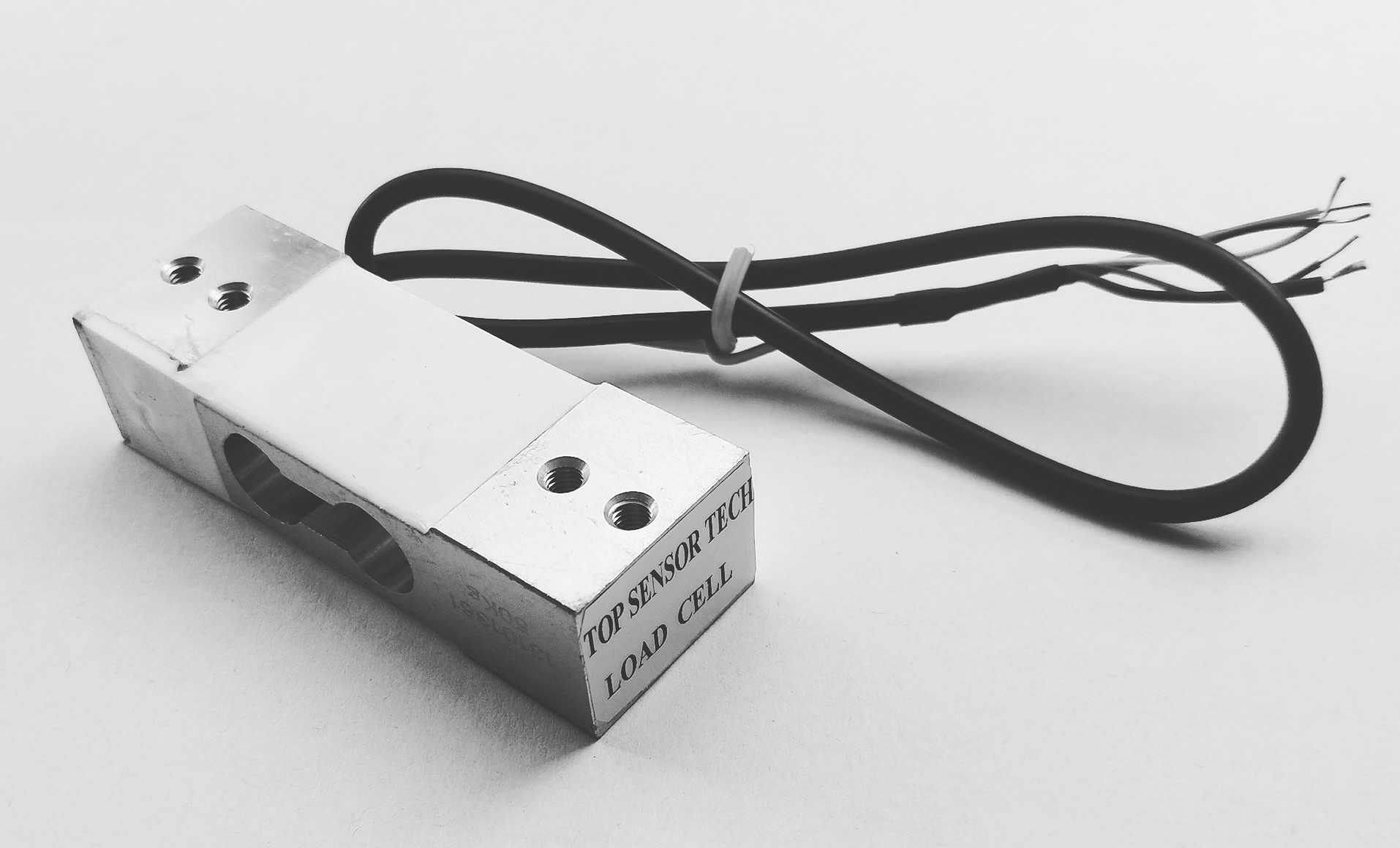

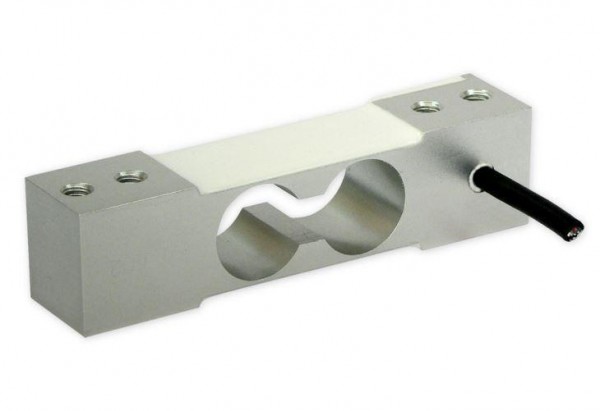

Single Point Load Cells, Parallel Beam Load Cells

Model: SPA-02
Related Load: 3-100KG


Features:
Material: Alloy Aluminum, Colourless anodized; Small Size
High Precision OIML R60 standard, Long terms stability, economic load cells, easy to install
APPLICATIONS: Pricing Scale, Electronic scales, platform scales etc.


Dimensions:

Small Load Cell For Weighing Scale 3kg-100kg Capacity IP66 Water Protection 0

Related Load (KG) 3-6 8-50 60-100
B 20 30 40



Technical Parameters:
Precision: C3
Rated Output: 2mv/v±0.1
Creep(%F.S/30min): ±0.02
Zero balance(%F.S): ±1.0
Input resistance: 405±10
Output resistance: 350±3
Insulation resistance: ≥5000(100VDC)
Temp. effect on span(%F.S/10℃): ±0.02
Temp. effect on zero(%F.S/10℃): ±0.02
Use temp. range(℃): -20~+55
Excitation voltage(V): 9~12(DC)
Safety overload (%F.S) 150%
Defend grade IP65
Cable Length: 0.45meters -2 meters
Connection: Small Load Cell For Weighing Scale 3kg-100kg Capacity IP66 Water Protection 1

FAQ
1. What'S your MOQ
Normally our MOQ is 5-10 pcs, but sometimes maybe we have enough stock,
If based on ODM, MOQ can be negotiated.

2. Are you a trading company?
We are manufacturer, our factory has passed ISO9001:2008, we have good quality control. some of our products OIML , NTEP Certifacted

3. Do you accept customized service?
Yes, we have different customers make their own OEM products,
so we also can make product as per your requirments.
