Micro Pressure Transducer High Precision Stainless Steel Material

1 pc
MOQ
Negotiable
Price
Micro Pressure Transducer High Precision Stainless Steel Material
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Micro Pressure Transducer
Material: Stainless Steel
Feature: High Precision
Model: PT502
Highlight:

differential pressure transmitter

,

high temperature pressure transmitter
Basic Infomation
Place of Origin: China
Brand Name: Top Sensor
Certification: CE
Model Number: PT502
Payment & Shipping Terms
Packaging Details: 1 pc per color box,50 pcs per Carton
Delivery Time: 10 days
Payment Terms: T/T, Western Union
Supply Ability: 2000 pcs per month
Product Description

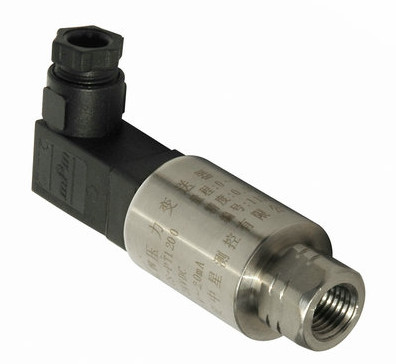

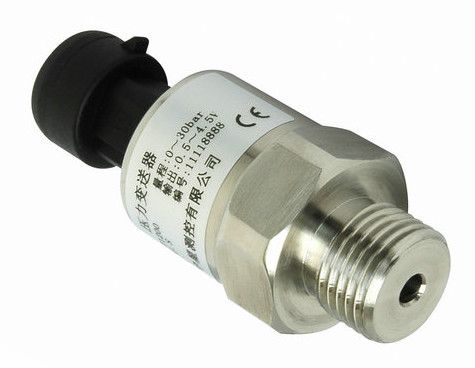

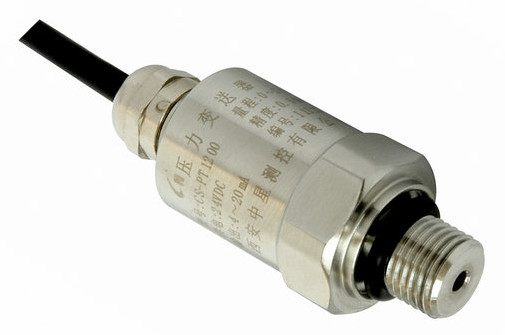

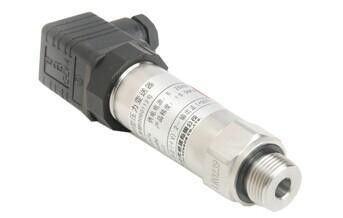

Micro Pressure Transducer High Precision Stainless Steel Material

Economic Pressure Transducer, Pressure Transmitter Model: PT502 Introduction PT502 series of pressure transmitter are mass production and low cost. Small size. Application: compressor/Building Water Supply/Hydraulic Control/Air Conditioner, Medical Equipment etc stainless steel material.



Economical Pressure Transducer, Pressure Transmitter
Model: PT502
Introduction
PT502 series of pressure transmitter are mass production and low cost. Small size.
Application: compressor/Building Water Supply/Hydraulic Control/Air Conditioner, Medical Equipment etc
stainless steel material. the pressure sensing elements are selected from well-known international brands. Long terms stable, high precision

Parameter Value
Measure range 0-3Bar.0-10Bar, 0-16Bar
Overload Pressure 1.5×RP(rated pressure)
Broken Pressure 3×RP(rated pressure)
Accuracy ±0.5,±1%F.S
Stability Typical ±0.5%F.S, Max ±1%F.S
Operate Temperature －40℃~100℃
Compensation Temperature －10℃~80℃
Stock Temperature －50℃~125℃
Wire 2 Wires/3 wires
Output Signal 4~20mA/0.5-4.5v
Power Supply 12~30Vdc
Load Resistance (U-10)/0.02()
Insulation ＞100M @50V
Elec. Connect DIN 43650C, DIN72585, Plug, Cable
Elec. Connect G1/4, NPT1/4, etc
Response Time 10ms
Pressure Form Gauge G, Absolute A
Compliant CE, Intrinsically safe E, Explosion-proof D
EMC EMI: EN50081-1/-2; EMS: EN50082-2
